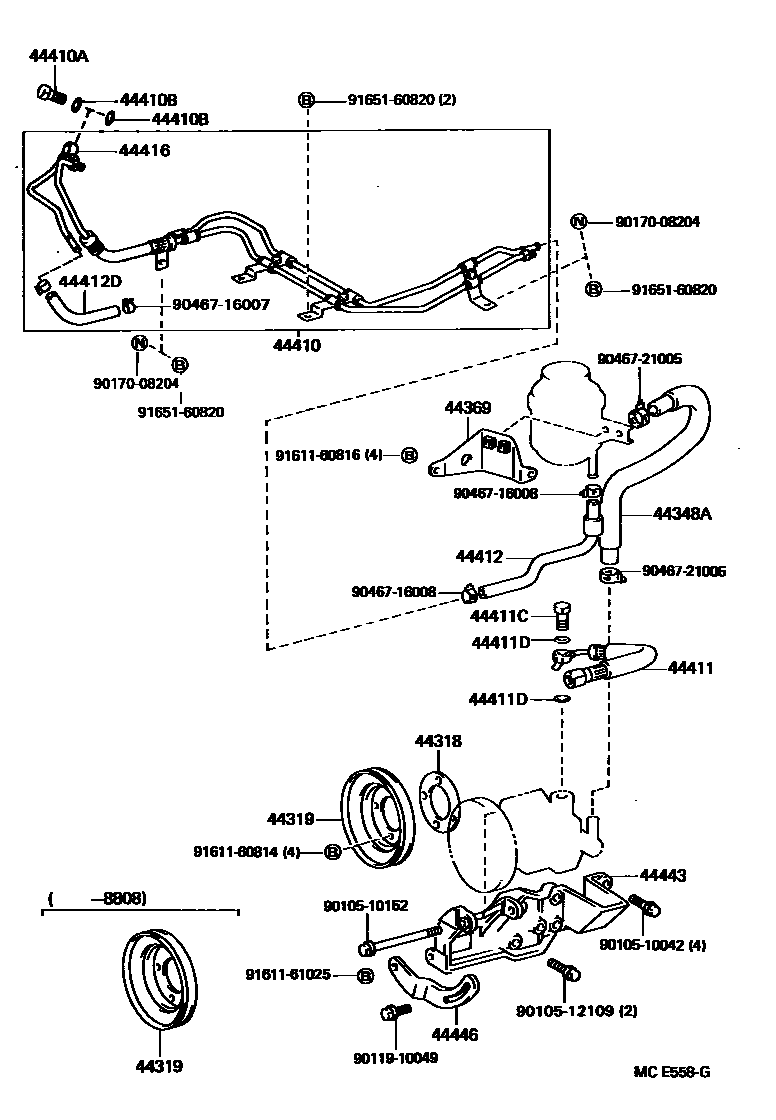

POWER STEERING TUBE

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199505

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199505

main44319-30030iLY60..RHD198708-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25020iLY60..RHD198708-198808

main44348-25030iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199505

44369BRACKET, OIL RESERVOIR, NO.1

main44369-25020iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

44410TUBE ASSY, PRESSURE FEED

main44410-25041iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-17001iLY6#..RHD198708-199002

main90401-17003iLY61..ARL..CBU;LY61..RHD..(T2,T3)199002-199505

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-17002×2iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

44411HOSE, PRESSURE FEED

main44411-25030iLY60..RHD198708-198808

main44411-25031iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199505

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16005iLY60..RHD198708-198808

main90401-16008iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199209

main90401-16027iLY61..RHD..(T2,T3)199209-199505

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168×2iLY61..RHD..(T2,T3)199209-199505

main90430-16242×2iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199209

44412HOSE, RETURN

main44412-25020iLY60..RHD198708-198808

main44412-25030iLY61..ARL..CBU;LY61..RHD..(T2,T3)198808-199505

44412DHOSE, RETURN, NO.1

main90445-18079iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-25021iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

44443BRACKET, PUMP

main44443-30080iLY60..RHD;LY61..T2,T3;LY61..TW..ST198708-199505

44446STRUT, ADJUSTING

main44446-30070iLY60..RHD;LY61..ARL..CBU;LY61..RHD..(T2,T3)198708-199505

9010510042

main90105-10042

9010510152

main90105-10152

9010512109

main90105-12109

9011910049

main90119-10049

9017008204

main90170-08204

9046716007

main90467-16007

9046716008

main90467-16008

9046721005

main90467-21005

9161160814

main91611-60814

9161160816

main91611-60816

9161161025

main91611-61025

9165160820

main91651-60820

27 parts on this diagram · 1 diagram in section
