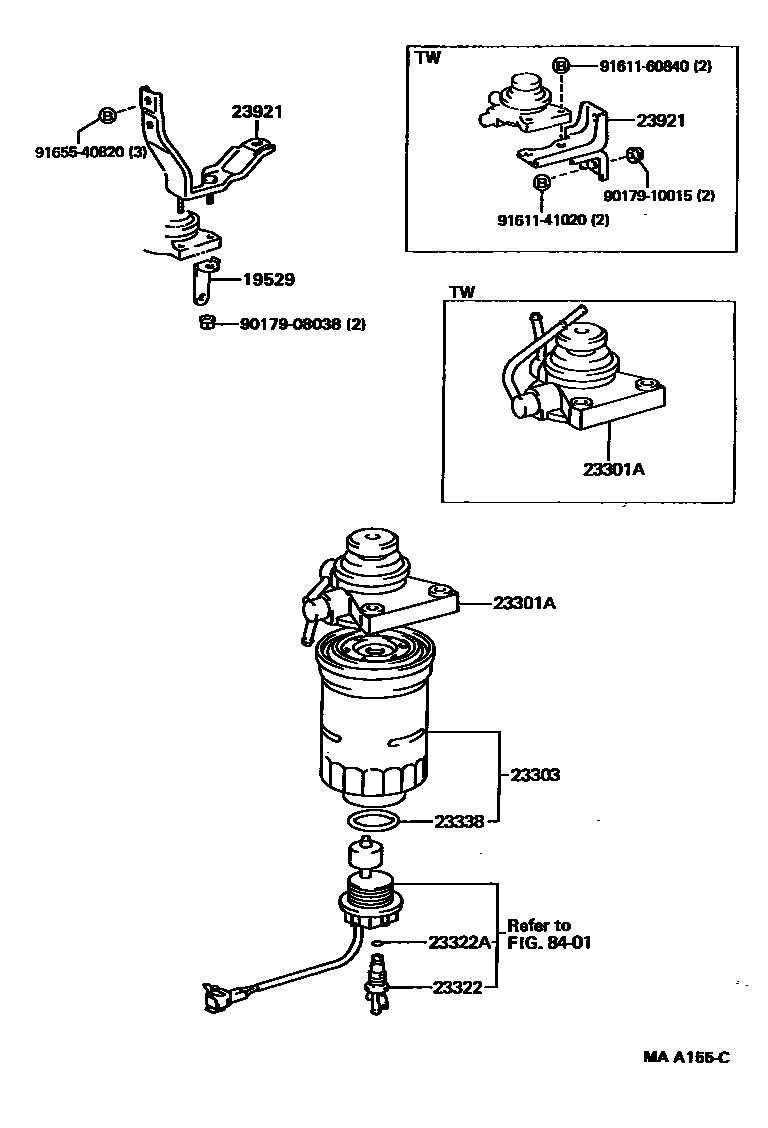

FUEL FILTER

0001 1 0002 1

19529CLAMP

main19529-54010i3L..LY61..T2,T3198808-199505

23301ACAP ASSY, FUEL FILTER

main23301-54110i2L..LY60..TW198708-198808

main23301-54330i2L,3L..LY6#..T2,T3198708-199505

main23301-54510i3L..LY61..TW198808-199503

main23380-54650i3L..LY61..TW199503-199505

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-56040i3L..LY61..TW..ST199302-199505

CHINA SPEC

main23303-64010i2L,3L..LY6#198708-199505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L,3L..LY6#198708-199505

main23322-64020i3L..LY61..TW..ST199302-199505

CHINA SPEC

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L,3L..LY6#198708-199505

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L,3L..LY6#198708-199505

23921SUPPORT, FUEL FILTER

main23921-54220i2L,3L..LY6#..TW198708-199505

main23921-54250i2L..LY60..T2,T3198708-198805

main23921-54310i2L,3L..LY6#..T2,T3198805-199505

main90929-01115i3Y..YY52,61198708-199505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908038

main90179-08038

9017910015

main90179-10015

9161141020

main91611-41020

9161160840

main91611-60840

9165540820

main91655-40820

13 parts on this diagram · 2 diagrams in section
