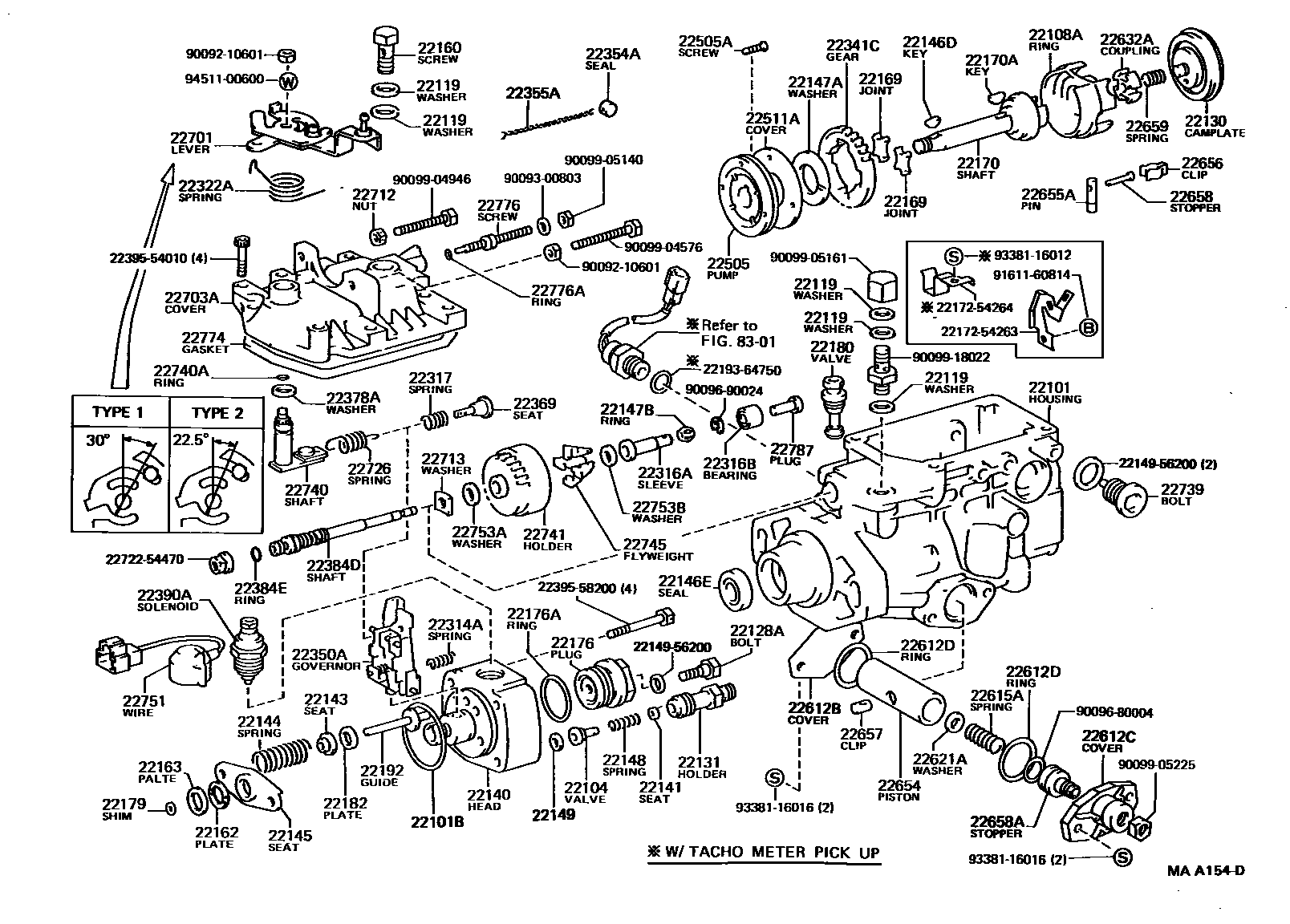

INJECTION PUMP BODY

0001 1 0002 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-54440i2L..LY60..RHD..ST..GEN..CBU198712-198808

HONG KONG SPEC

main22101-54440i2L..LY60..RHD..ST..GEN..CBU198712-198808

SINGAPORE OR HONG KONG SPEC

main22101-54440i2L..LY60..WT198708-198808

main22101-54440i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC

main22101-54770i3L..LY61..GEN199109-199505

main22101-64230i3L..LY61..GEN;2L..LY60..ST..GEN198708-199109

main22101-64250i3L..LY61..LHD198708-199505

W(TACHOMETER)

main22101-64250i3L..LY61..LHD199404-199505

W(POWER STEERRING)

main22101-64250i3L..LY61..LHD199404-199505

W(POWER STEERRING) OR W(TACHOMETER)

main22101-64250i2L..LY60..RHD..GEN..IV198708-198808

IRELAND SPEC OR W(TACHOMETER)

main22101-64250i2L,3L..LY6#..ARL198708-199505

main22101-64270i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i2L,3L..LY6#198708-199505

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-54060i2L..LY60198708-198808

main22104-64010i3L..LY61198808-199005

main22104-6A290i3L..LY61199005-199505

22108ARING SUB-ASSY, ROLLER

main22108-54010i2L,3L..LY6#198708-199505

main22108-54180i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i2L,3L..LY6#198708-199505

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i2L,3L..LY6#198708-199505

22130CAMPLATE SUB-ASSY, FACE

main22130-54010i3L..LY61198808-199505

main22130-58200i2L..LY60198708-198808

22131HOLDER, DELIVERY VALVE

main22131-54110i3L..LY61;2L..LY60..ST198708-198908

main22190-64740i2L..LY60..RHD..ST..GEN..CBU198712-198808

SINGAPORE OR HONG KONG SPEC

main22190-64740i2L..LY60..WT198708-199005

main22190-64740i3L..LY61..ST..GEN198808-198908

W(TACHOMETER)

main22190-64740i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC

main22190-64740i2L..LY60..RHD..GEN..IV198712-198808

HONG KONG SPEC

main22190-6A290i3L..LY61199005-199505

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-54730i3L..LY61198808-199505

main22140-64400i2L..LY60198708-198808

22141SEAT, DELIVERY VALVE SPRING

main22141-54010i3L..LY61;2L..LY60..ST198708-198908

22143SEAT, SPRING UPPER

main22143-54010i2L,3L..LY6#198708-199505

22144SPRING, PUMP PLUNGER

main22144-54180i3L..LY61198808-199505

main22144-54190i2L..LY60198708-198808

main22144-54190i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

22145SEAT, SPRING, LOWER

main22145-54010i2L,3L..LY6#198708-199505

22146DKEY(FOR DRIVE GEAR)

main90099-13018i2L,3L..LY6#198708-199505

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i2L,3L..LY6#198708-199505

22147AWASHER, DRIVE SHAFT

main22161-54010i2L,3L..LY6#198708-199505

22147BRING, GOVERNOR SLEEVE

main22147-54290i2L,3L..LY6#198708-199505

22148SPRING, DELIVERY VALVE

main22148-54010i2L,3L..LY6#198708-199505

22149GASKET, DELIVERY VALVE

main22149-54010i2L,3L..LY6#198708-199005

main22149-56351i3L..LY61199005-199505

22160SCREW SUB-ASSY, OVERFLOW

main22160-64010i2L,3L..LY6#198708-199505

22162PLATE, PLUNGER UPPER

main22162-54010i2L,3L..LY6#198708-199505

22163PLATE, PLUNGER LOWER

main22163-54010i2L,3L..LY6#198708-199505

22169JOINT, RUBBER

main22169-54180i2L,3L..LY6#198708-199505

22170SHAFT SUB-ASSY, DRIVE

main22170-54180i2L..LY60198708-198808

main22170-55130i3L..LY61..ARL198908-199505

main22170-55130i3L..LY61..GEN..IV198908-198910

IRELAND SPEC

main22170-6A510i3L..LY61198808-199505

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i2L,3L..LY6#198708-199505

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i2L,3L..LY6#198708-199505

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main90099-14052i2L,3L..LY6#198708-199505

22179SHIM, PLUNGER ADJUSTING

main22179-54010i2L,3L..LY6#198708-199505

T=1.9

main22179-54011i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.0,SINGAPORE OR HONG KONG SPEC

main22179-54011i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.0,HONG KONG SPEC

main22179-54011i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.0,SINGAPORE SPEC

main22179-54011i3L..LY61;2L..LY60..WT198708-199505

T=2.0

main22179-54012i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.1,SINGAPORE OR HONG KONG SPEC

main22179-54012i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.1,SINGAPORE SPEC

main22179-54012i3L..LY61;2L..LY60..WT198708-199505

T=2.1

main22179-54012i2L..LY60..RHD..GEN..IV198712-198808

T=2.1,HONG KONG SPEC

main22179-54013i2L..LY60..RHD..GEN..IV198712-198808

T=2.2,SINGAPORE OR HONG KONG SPEC

main22179-54013i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.2,HONG KONG SPEC

main22179-54013i3L..LY61;2L..LY60..WT198708-199505

T=2.2

main22179-54013i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.2,SINGAPORE SPEC

main22179-54014i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.3,HONG KONG SPEC

main22179-54014i2L..LY60..RHD..GEN..IV198712-198808

T=2.3,SINGAPORE OR HONG KONG SPEC

main22179-54014i3L..LY61;2L..LY60..WT198708-199505

T=2.3

main22179-54014i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.3,SINGAPORE SPEC

main22179-54015i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.4,SINGAPORE OR HONG KONG SPEC

main22179-54015i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.4,SINGAPORE SPEC

main22179-54015i2L..LY60..RHD..GEN..IV198712-198808

T=2.4,HONG KONG SPEC

main22179-54015i3L..LY61;2L..LY60..WT198708-199505

T=2.4

main22179-54016i2L..LY60..RHD..GEN..IV198712-198808

T=2.5,SINGAPORE OR HONG KONG SPEC

main22179-54016i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.5,HONG KONG SPEC

main22179-54016i3L..LY61;2L..LY60..WT198708-199505

T=2.5

main22179-54016i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.5,SINGAPORE SPEC

main22179-54017i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.6,SINGAPORE OR HONG KONG SPEC

main22179-54017i2L..LY60..RHD..GEN..IV198712-198808

T=2.6,HONG KONG SPEC

main22179-54017i3L..LY61;2L..LY60..WT198708-199505

T=2.6

main22179-54017i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.6,SINGAPORE SPEC

main22179-54018i2L..LY60..RHD..GEN..IV198712-198808

T=2.7,SINGAPORE OR HONG KONG SPEC

main22179-54018i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.7,HONG KONG SPEC

main22179-54018i3L..LY61;2L..LY60..WT198708-199505

T=2.7

main22179-54018i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.7,SINGAPORE SPEC

main22179-54019i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.8,SINGAPORE OR HONG KONG SPEC

main22179-54019i3L..LY61;2L..LY60..WT198708-199505

T=2.8

main22179-54019i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.8,SINGAPORE SPEC

main22179-54019i2L..LY60..RHD..GEN..IV198712-198808

T=2.8,HONG KONG SPEC

main22179-54020i2L..LY60..RHD..GEN..IV198712-198808

T=2.9,HONG KONG SPEC

main22179-54020i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.9,SINGAPORE SPEC

main22179-54020i2L..LY60..RHD..GEN..IV198712-198808

T=2.9,SINGAPORE OR HONG KONG SPEC

main22179-54020i3L..LY61;2L..LY60..WT198708-199505

T=2.9

22180VALVE SUB-ASSY, REGULATOR

main22180-54010i2L..LY60198708-198808

main22180-55050i3L..LY61198808-199505

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010i2L,3L..LY6#198708-199505

T=0.5

main22183-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=0.8,SINGAPORE OR HONG KONG SPEC

main22183-54010i2L..LY60..RHD..GEN..IV198712-198808

T=0.8,HONG KONG SPEC

main22183-54010i3L..LY61;2L..LY60..WT198708-199505

T=0.8

main22183-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=0.8,SINGAPORE SPEC

main22184-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.0,HONG KONG SPEC

main22184-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.0

main22184-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.0,SINGAPORE SPEC

main22184-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.0,SINGAPORE OR HONG KONG SPEC

main22185-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.2,SINGAPORE SPEC

main22185-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.2,HONG KONG SPEC

main22185-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.2

main22185-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.2,SINGAPORE OR HONG KONG SPEC

main22186-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.5,SINGAPORE OR HONG KONG SPEC

main22186-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.5,SINGAPORE SPEC

main22186-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.5,HONG KONG SPEC

main22186-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.5

main22187-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=1.8,SINGAPORE OR HONG KONG SPEC

main22187-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.8,HONG KONG SPEC

main22187-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.8,SINGAPORE SPEC

main22187-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.8

main22188-54010i2L..LY60..RHD..GEN..IV198712-198808

T=2.0,SINGAPORE OR HONG KONG SPEC

main22188-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=2.0,HONG KONG SPEC

main22188-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=2.0,SINGAPORE SPEC

main22188-54010i3L..LY61;2L..LY60..WT198708-199505

T=2.0

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010i2L,3L..LY6#198708-199505

22314ASPRING, LEVER SUPPORT

main22314-54010i2L,3L..LY6#198708-199505

22316ASLEEVE, GOVERNOR

main22316-54290i3L..LY61198808-199505

ID=0.80

main22316-54310i2L..LY60198708-198808

MARK 26

main22316-54630i3L..LY61198808-199505

ID=0.70

main22316-54750i3L..LY61198808-199505

ID=0.60

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i2L,3L..LY6#198708-199505

22317SPRING, GOVERNOR DOMPER

main22317-54010i2L..LY60198708-198808

K=0.2,L=6.5

main22317-54470i3L..LY61198808-199505

K=0.15,L=7.0

22322ASPRING, RETURN

main22322-54132i2L..LY60..RHD..GEN..IV198712-198808

HONG KONG SPEC

main22322-54132i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC

main22322-54132i2L..LY60..WT198708-198808

main22322-54132i2L..LY60..RHD..GEN..IV198712-198808

SINGAPORE OR HONG KONG SPEC

main22322-54450i2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU198708-198808

W(TACHOMETER)

main22322-54450i2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU198708-198808

IRELAND SPEC OR W(TACHOMETER)

main22322-54470i3L..LY61;2L..LY60..ST..GEN198708-198906

main22322-54730i3L..LY61198908-199505

22341CGEAR, GOVERNOR DRIVE

main22341-54010i2L,3L..LY6#198708-199505

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-54060i2L,3L..LY6#198708-199505

22354ASEAL, ROD

main22354-77050i2L..LY60198708-199505

22355AWIRE, GOVERNOR HOUSING SEAL

main22355-78030i2L..LY60198708-199505

22369SEAT, GOVERNOR SPRING

main22369-54010i2L,3L..LY6#198708-199505

22378AWASHER, GOVERNOR THRUST

main22378-64010i2L,3L..LY6#198708-199505

22384DSHAFT, GOVERNOR

main22380-54020i2L,3L..LY6#198708-199505

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i2L,3L..LY6#198708-199505

22390ASOLENOID ASSY, FUEL CUT

main22390-54110i2L..LY60198708-198808

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i2L,3L..LY6#198708-199505

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723i2L,3L..LY6#198708-199505

22511ACOVER, FEED PUMP

main22511-54020i2L,3L..LY6#198708-199505

main22511-58650i3L..LY61..ARL198908-199505

main22511-58650i3L..LY61..GEN..IV198908-198910

IRELAND SPEC

22612BCOVER, TIMER

main22612-54010i2L,3L..LY6#198708-199109

main22612-56350i3L..LY61199109-199505

22612CCOVER, TIMER

main22612-54450i2L,3L..LY6#198708-199505

22612DRING, O(FOR TIMER COVER)

main90099-14051i2L,3L..LY6#198708-199311

main90099-14105i3L..LY61199311-199505

22615ASPRING, TIMER OUTER

main22615-54030i2L..LY60..ST..GEN198708-198808

CW=7.1

main22615-54030i2L..LY60..RHD..GEN..IV198712-198808

CW=7.1,HONG KONG SPEC

main22615-54030i2L..LY60..RHD..GEN..IV198712-198808

CW=7.1,SINGAPORE OR HONG KONG SPEC

main22615-54030i2L..LY60..RHD..ST..GEN..CBU198708-198712

CW=7.1,SINGAPORE SPEC

main22615-54180i2L,3L..LY6#198708-199505

K=3.00,L=37.3

main22615-54490i3L..LY61..GEN..IV198808-198910

K=2.50,L=38.2,IRELAND SPEC

main22615-54730i3L..LY61..GEN..IV198808-198910

K=2.70,L=39.2,IRELAND SPEC

main22615-5B010i3L..LY61198808-199505

K=2.80,L=38.1

main22615-64010i2L..LY60..RHD..ST..GEN..CBU198712-198808

K=3.30,L=37.1,SINGAPORE OR HONG KONG SPEC

main22615-64010i2L..LY60..RHD..GEN..IV198712-198808

K=3.30,L=37.1,HONG KONG SPEC

main22615-64010i3L..LY61;2L..LY60..WT198708-199505

K=3.30,L=37.1

main22615-64010i2L..LY60..RHD..ST..GEN..CBU198708-198712

K=3.30,L=37.1,SINGAPORE SPEC

22621AWASHER, TIMER ADJUSTING

main22621-54010i2L..LY60..RHD..GEN..IV198708-198712

T=0.5,SINGAPORE SPEC OR W(TACHOMETER)

main22621-54010i2L..LY60..RHD..GEN..IV198708-198712

T=0.5,IRELAND SPEC OR W(TACHOMETER)

main22621-54010i2L..LY60..ARL;2L..LY60..LHD..T3;2L..LY60..(T2,TW)..GEN198708-198808

T=0.5

main22621-54010i2L..LY60..RHD..GEN..IV198712-198808

T=0.5,IRELAND OR HONG KONG SPEC OR W(TACHOMETER)

main22621-54010i2L..LY60..RHD..GEN..IV198712-198808

T=0.5,SINGAPORE OR HONG KONG SPEC OR W(TACHOMETER)

main22625-54277i3L..LY61198808-199505

T=1.0

22632ACOUPLING, INJECTION PUMP

main22632-54010i2L,3L..LY6#198708-199505

22654PISTON, TIMER

main22654-54010i2L..LY60..ST198708-198808

main22654-54630i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

main22654-54850i3L..LY61198808-199505

main22654-55030i2L..LY60..RHD..ST..GEN..CBU198712-198808

SINGAPORE OR HONG KONG SPEC

main22654-55030i2L..LY60..RHD..ST..GEN..CBU198712-198808

HONG KONG SPEC

main22654-55030i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC

main22654-55030i2L..LY60..WT198708-198808

22655APIN, TIMER SLIDE

main22655-54010i2L,3L..LY6#198708-199505

22656CLIP, TIMER

main22656-54010i2L,3L..LY6#198708-199505

22657CLIP, TIMER

main22657-54010i2L,3L..LY6#198708-199505

22658STOPPER, TIMER

main22658-54010i2L..LY60198708-199505

NO.1

main22658-54450i3L..LY61198808-199505

NO.2

22658ASTOPPER, TIMER SLIDE

main22658-54450i2L..LY60198708-198808

22659SPRING, COUPLING

main22659-64150i2L,3L..LY6#198708-199505

22701LEVER SUB-ASSY, ADJUSTING

main22701-54451i3L..LY61..LHD199404-199505

W(POWER STEERRING),MARK 130, TYPE 1

main22701-54451i3L..LY61..LHD199404-199505

W(POWER STEERRING) OR W(TACHOMETER),MARK 130, TYPE 1

main22701-54451i3L..LY61..T2198808-199505

W(TACHOMETER),MARK 130, TYPE 1

main22701-54451i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC,TYPE 1

main22701-54451i2L..LY60..RHD..GEN..IV198712-198808

HONG KONG SPEC,TYPE 1

main22701-54451i2L..LY60..RHD..GEN..IV198712-198808

SINGAPORE OR HONG KONG SPEC,TYPE 1

main22701-54451i2L..LY60..ST198708-199505

TYPE 1

main22701-54452i2L..LY60..RHD..GEN..IV198712-198808

HONG KONG SPEC,TYPE 2

main22701-54452i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC,TYPE 2

main22701-54452i2L..LY60..RHD..GEN..IV198712-198808

SINGAPORE OR HONG KONG SPEC,TYPE 2

main22701-54452i3L..LY61..ST..GEN198808-199505

W(TACHOMETER),MARK 131, TYPE 2

main22701-54452i3L..LY61;2L..LY60..WT198708-199505

TYPE 2

main22701-54452i3L..LY61..LHD199404-199505

W(POWER STEERRING),MARK 131, TYPE 2

main22701-54452i3L..LY61..LHD199404-199505

W(POWER STEERRING) OR W(TACHOMETER),MARK 131, TYPE 2

22703ACOVER SUB-ASSY, GOVERNOR

main22703-17080i3L..LY61..GEN198908-199505

main22703-54132i3L..LY61..ARL198708-199505

main22703-54132i3L..LY61..GEN..IV198908-198910

IRELAND SPEC

22712NUT, ROCK

main22775-77121i2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU198708-198808

W(TACHOMETER)

main22775-77121i2L..LY60..LHD;2L..LY60..RHD..ST..GEN..CBU198708-198808

IRELAND SPEC OR W(TACHOMETER)

main22775-77121i3L..LY61;2L..LY60..GEN198708-199505

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i2L,3L..LY6#198708-199505

T=1.05

main22714-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=1.25,HONG KONG SPEC

main22714-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.25,SINGAPORE SPEC

main22714-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.25

main22714-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.25,SINGAPORE OR HONG KONG SPEC

main22715-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=1.45,HONG KONG SPEC

main22715-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.45,SINGAPORE SPEC

main22715-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.45,SINGAPORE OR HONG KONG SPEC

main22715-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.45

main22716-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.65,SINGAPORE OR HONG KONG SPEC

main22716-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=1.65,HONG KONG SPEC

main22716-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.65,SINGAPORE SPEC

main22716-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.65

main22717-54010i2L..LY60..RHD..ST..GEN..CBU198712-198808

T=1.85,HONG KONG SPEC

main22717-54010i2L..LY60..RHD..GEN..IV198712-198808

T=1.85,SINGAPORE OR HONG KONG SPEC

main22717-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

T=1.85,SINGAPORE SPEC

main22717-54010i3L..LY61;2L..LY60..WT198708-199505

T=1.85

22726SPRING, SPEED CONTROL

main22726-54060i3L..LY61..GEN..IV198808-198910

IRELAND SPEC

main22726-54260i2L..LY60..RHD..ST..GEN..CBU198712-198808

HONG KONG SPEC,CW=14.2

main22726-54260i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC,CW=14.2

main22726-54260i2L..LY60..WT198708-198808

CW=14.2

main22726-54260i2L..LY60..RHD..GEN..IV198712-198808

SINGAPORE OR HONG KONG SPEC,CW=14.2

main22726-54310i2L..LY60..RHD..ST..GEN..CBU198712-198808

HONG KONG SPEC,CW=15.5

main22726-54310i2L..LY60..RHD..ST..GEN..CBU198712-198808

SINGAPORE OR HONG KONG SPEC,CW=15.5

main22726-54310i3L..LY61198708-199505

CW=15.5

main22726-54310i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC,CW=15.5

main22726-54311i2L..LY60..WT198708-198808

CW=13.5

main22726-54311i2L..LY60..RHD..GEN..IV198712-198808

HONG KONG SPEC,CW=13.5

main22726-54311i2L..LY60..RHD..GEN..IV198712-198808

SINGAPORE OR HONG KONG SPEC,CW=13.5

main22726-54311i2L..LY60..RHD..ST..GEN..CBU198708-198712

SINGAPORE SPEC,CW=13.5

main22726-54530i2L..LY60..ARL198708-198808

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020i2L,3L..LY6#198708-199505

22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING

main22740-54320i2L..LY60..GEN;3L..LY61..ARL198708-199505

main22740-54490i2L..LY60..ARL198708-198808

main22740-64820i3L..LY61..GEN198808-199505

22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)

main22193-54770i3L..LY61199109-199505

main90099-14048i2L,3L..LY6#198708-199109

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i2L,3L..LY6#198708-199505

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010i2L,3L..LY6#198708-199505

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54311i3L..LY61;2L..LY60..GEN198708-199505

main22751-6A220i2L..LY60..ARL198708-198808

IRELAND SPEC OR W(TACHOMETER)

main22751-6A220i2L..LY60..ARL198708-198808

W(TACHOMETER)

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i2L,3L..LY6#198708-199505

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i3L..LY61199109-199505

main22753-54290i2L,3L..LY6#198708-199109

22774GASKET, GOVERNOR COVER

main22774-54010i2L,3L..LY6#198708-199109

main22774-54270i3L..LY61199109-199505

22776SCREW, SMOKE SET ADJUSTING

main22776-54110i2L,3L..LY6#198708-199505

22776ARING, O(FOR SMOKE SET SCREW)

main90099-14047i2L,3L..LY6#198708-199505

22787PLUG, GOVERNOR SLEEVE

main22787-54010i2L..LY60..RHD..GEN..IV198712-198808

L=5.9,SINGAPORE OR HONG KONG SPEC

main22787-54010i2L..LY60..RHD..GEN..IV198712-198808

L=5.9,HONG KONG SPEC

main22787-54010i2L..LY60..WT198708-198808

L=5.9

main22787-54010i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=5.9,SINGAPORE SPEC

main22787-54011i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=6.1,SINGAPORE OR HONG KONG SPEC

main22787-54011i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=6.1,SINGAPORE SPEC

main22787-54011i2L..LY60..RHD..GEN..IV198712-198808

L=6.1,HONG KONG SPEC

main22787-54011i2L..LY60..WT198708-198808

L=6.1

main22787-54012i2L..LY60..WT198708-198808

L=6.3

main22787-54012i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=6.3,HONG KONG SPEC

main22787-54012i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=6.3,SINGAPORE OR HONG KONG SPEC

main22787-54012i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=6.3,SINGAPORE SPEC

main22787-54026i2L..LY60198708-198808

L=3.3

main22787-54027i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=3.4,SINGAPORE OR HONG KONG SPEC

main22787-54027i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=3.4,SINGAPORE SPEC

main22787-54027i2L..LY60..RHD..GEN..IV198712-198808

L=3.4,HONG KONG SPEC

main22787-54027i3L..LY61;2L..LY60..WT198708-199505

L=3.4

main22787-54028i2L..LY60..RHD..GEN..IV198712-198808

L=3.5,HONG KONG SPEC

main22787-54028i2L..LY60..RHD..GEN..IV198712-198808

L=3.5,SINGAPORE OR HONG KONG SPEC

main22787-54028i2L..LY60..WT198708-198808

L=3.5

main22787-54028i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=3.5,SINGAPORE SPEC

main22787-54029i2L..LY60..RHD..GEN..IV198712-198808

L=3.6,SINGAPORE OR HONG KONG SPEC

main22787-54029i2L..LY60..RHD..GEN..IV198712-198808

L=3.6,HONG KONG SPEC

main22787-54029i3L..LY61;2L..LY60..WT198708-199505

L=3.6

main22787-54029i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=3.6,SINGAPORE SPEC

main22787-54030i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=3.7,SINGAPORE OR HONG KONG SPEC

main22787-54030i2L..LY60..WT198708-198808

L=3.7

main22787-54030i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=3.7,SINGAPORE SPEC

main22787-54030i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=3.7,HONG KONG SPEC

main22787-54031i2L..LY60..RHD..GEN..IV198712-198808

L=3.8,HONG KONG SPEC

main22787-54031i3L..LY61;2L..LY60..WT198708-199505

L=3.8

main22787-54031i2L..LY60..RHD..GEN..IV198712-198808

L=3.8,SINGAPORE OR HONG KONG SPEC

main22787-54031i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=3.8,SINGAPORE SPEC

main22787-54032i2L..LY60..RHD..GEN..IV198712-198808

L=3.9,SINGAPORE OR HONG KONG SPEC

main22787-54032i2L..LY60..RHD..ST..GEN..CBU198712-198808

L=3.9,HONG KONG SPEC

main22787-54032i2L..LY60..WT198708-198808

L=3.9

main22787-54032i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=3.9,SINGAPORE SPEC

main22787-54033i2L..LY60..RHD..GEN..IV198712-198808

L=4.0,HONG KONG SPEC

main22787-54033i2L..LY60..RHD..GEN..IV198712-198808

L=4.0,SINGAPORE OR HONG KONG SPEC

main22787-54033i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=4.0,SINGAPORE SPEC

main22787-54033i3L..LY61;2L..LY60..WT198708-199505

L=4.0

main22787-54034i2L..LY60..RHD..ST..GEN..CBU198708-198712

L=4.3,SINGAPORE SPEC

main22787-54034i2L..LY60..RHD..GEN..IV198712-198808

L=4.3,HONG KONG SPEC

main22787-54034i2L..LY60..RHD..GEN..IV198712-198808

L=4.3,SINGAPORE OR HONG KONG SPEC

main22787-54034i2L..LY60..WT198708-198808

L=4.3

main22787-64640i3L..LY61198808-199505

L=4.1

main22787-64641i3L..LY61198808-199505

L=3.0

main22787-64643i3L..LY61198808-199505

L=3.2

main22787-64680i3L..LY61198808-199505

L=4.2

8301METER

→ Go to FIG 83-01

2214956200GASKET, DELIVERY VALVE

main22149-56200

2217254263CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54263

2217254264CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54264

2219364750RING, O(FOR LEVER CONNECTING PIN)

main22193-64750

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

9009210601

main90092-10601

9009300803

main90093-00803

9009680004

main90096-80004

9009690024

main90096-90024

9009904576

main90099-04576

9009904946

main90099-04946

9009905140

main90099-05140

9009905161

main90099-05161

9009905225

main90099-05225

9009918022

main90099-18022

9161160814

main91611-60814

9338116012

main93381-16012

9338116016

main93381-16016

9451100600

main94511-00600

100 parts on this diagram · 2 diagrams in section
