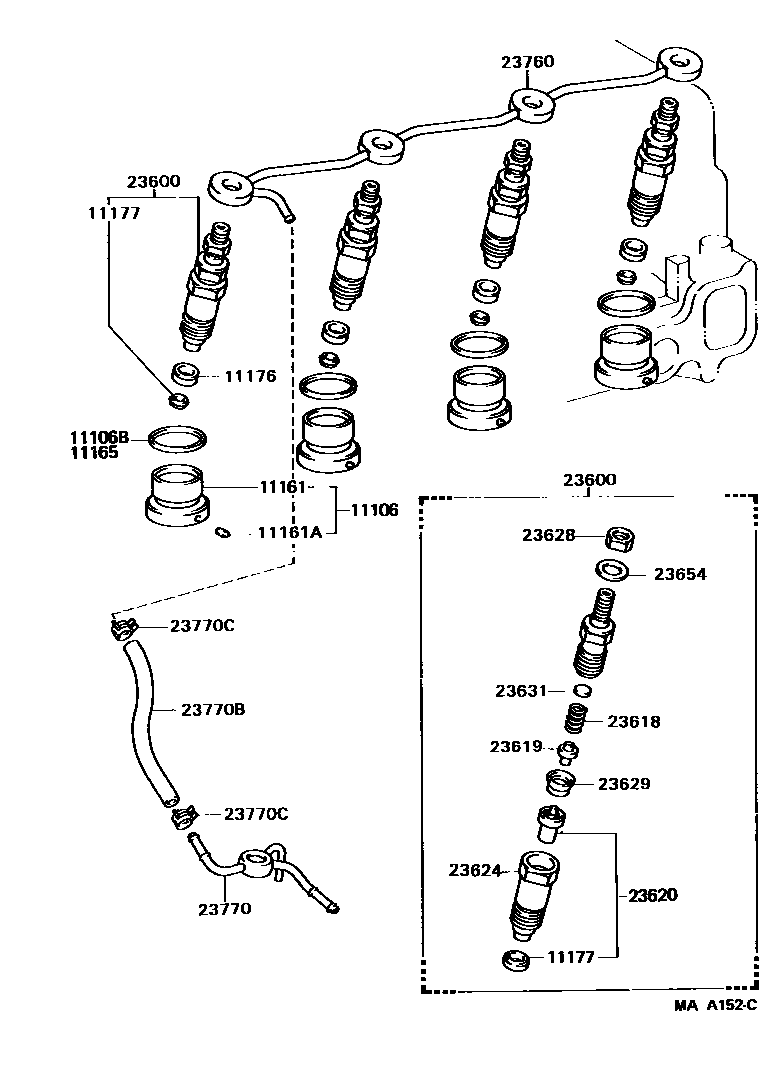

INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.03
11161CHAMBER, COMBUSTION
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11165SHIM(FOR COMBUSTION CHAMBER)
T=0.05
T=0.10
T=0.15
T=0.20
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
SINGAPORE SPEC
HONG KONG SPEC
SINGAPORE OR HONG KONG SPEC
23618SPRING, NOZZLE HOLDER PRESSURE
SINGAPORE SPEC
HONG KONG SPEC
SINGAPORE OR HONG KONG SPEC
23619PIN, NOZZLE HOLDER PRESSURE
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000
T=0.900
T=0.950
T=1.000
T=1.050
T=1.100
T=1.050
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.100
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.150
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.200
T=1.900
T=1.950
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
L=200
20 parts on this diagram · 1 diagram in section
