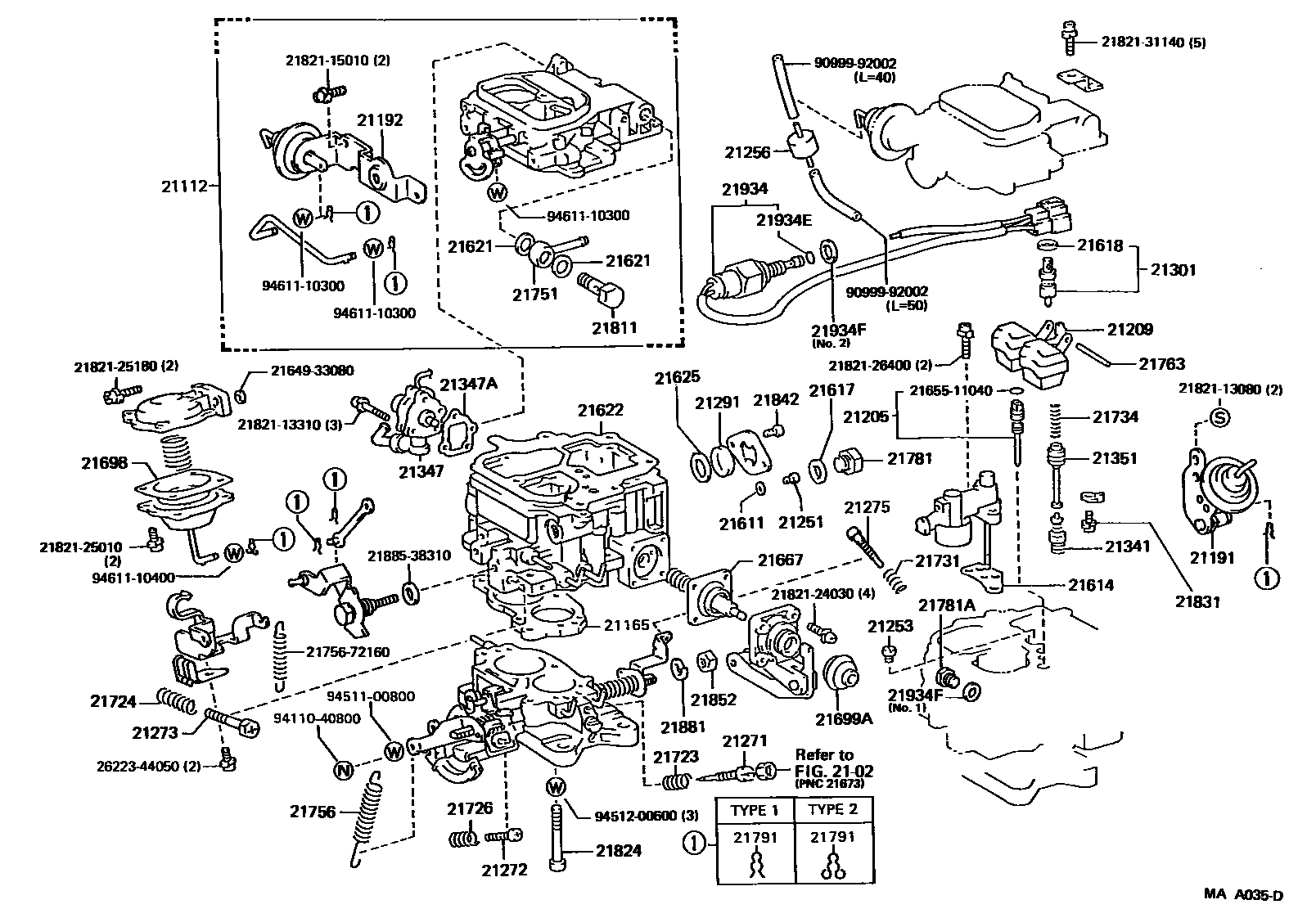

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

21112HORN, AIR

main21112-71100i198910-199208

main21112-71110i198708-198910

main21112-72380i199208-199505

SINGAPORE SPEC

21165INSULATOR

main21165-72160i198708-198910

main21165-72200i198910-199505

21191OPENER

main21609-71010i198708-199208

SINGAPORE SPEC

21192BREAKER

main21192-71111i198708-199208

main21192-73300i199208-199505

SINGAPORE SPEC

21205JET SUB-ASSY, SLOW

main21205-35240i198708-199208

main21205-72320i199208-199505

SINGAPORE SPEC

21209FLOAT SUB-ASSY

main21209-72160i198708-199505

21251JET, 1ST MAIN

main90999-41101i198708-199208

main90999-41111i199208-199505

SINGAPORE SPEC

21253JET, 2ND MAIN

main21253-71110i198708-199505

21256JET(FOR CARBURETOR)

main90925-04006i198708-199208

21271SCREW, IDLE ADJUSTING

main21271-15230i198708-199208

main21271-26440i198708-199208

SINGAPORE SPEC

21272SCREW, 1ST IDLE ADJUSTING

main21272-71010i198708-199505

21273SCREW, THROTTLE ADJUSTING

main21273-72160i198708-198808

main21273-72290i198808-199505

21275SCREW, ADJUSTING

main21275-71010i198708-199208

SINGAPORE SPEC

21291GLASS, LEVEL GAGE

main21291-34320i198708-199505

21301VALVE SUB-ASSY, NEEDLE

main21301-35010i198708-199505

21341VALVE, POWER

main21304-30010i198708-199505

21347VALVE, SOLENOID

main21347-71100i198808-198910

main21347-71101i199208-199505

main21347-72160i199208-199505

NO.1; SINGAPORE SPEC,NO.1

main21347-72200i198708-198808

main21347-72232i199208-199505

NO.2; SINGAPORE SPEC,NO.2

21347AGASKET(FOR VALVE, SOLENOID)

main21641-35010i198708-198910

main21641-35510i198910-199505

21351PISTON, POWER

main21351-37040i198708-199505

21611GASKET, MAIN JET

main21611-22010i198708-199505

21614GASKET, VENTURI

main21614-72160i198708-198910

main21614-72200i198910-199505

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i198708-199505

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198708-199505

21621GASKET, UNION NIPPLE

main21633-24030×2i198708-199505

21622GASKET, AIR HORN

main21622-72160i198708-198910

main21622-72200i199208-199505

SINGAPORE SPEC

main21622-73330i198910-199208

21625GASKET, LEVEL GAGE

main21655-60200i198708-199505

21667DIAPHRAGM

main21667-72050i198708-198910

main21667-72200i199208-199505

MAIN; SINGAPORE SPEC,MAIN

main21667-72301i199208-199505

*CHB; SINGAPORE SPEC,*CHB

main21667-73330i198910-199208

main21675-35330i199208-199505

SINGAPORE SPEC,SUB; SUB

21698DIAPHRAGM

main21667-72170i199208-199505

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i198708-199505

21723SPRING, IDLE ADJUSTING

main21723-21030i198708-199505

21724SPRING, THROTTLE ADJUSTING

main21723-38330i198708-199505

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310i198708-199505

21731SPRING, DASH POT OR POSITIONER ADJUSTING

main21723-11041i198708-199208

SINGAPORE SPEC

21734SPRING, POWER PISTON

main21734-33080i198711-199505

main21734-33090i198708-198711

main21734-37040i198708-199505

SINGAPORE SPEC

21751UNION, NIPPLE

main21894-71010i198708-199505

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21869-71110i198708-199208

main21869-72030i199208-199505

SINGAPORE SPEC

21763PIN, FLOAT LEVER

main21763-34320i198708-199505

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230i198708-199505

21781APLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)

main21781-72151i198708-199208

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010×4i198708-199208

TYPE 2

main21791-13011×5i199208-199505

SINGAPORE SPEC; TYPE 1; TYPE 2

main21791-60010×2i198708-199208

SINGAPORE SPEC,TYPE 1; TYPE 1

21811BOLT, UNION NIPPLE

main21811-11060i198708-199505

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main21844-26400×3i198708-199505

21831SCREW, POWER PISTON STOP

main21821-15060i198708-199505

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-33010×2i198708-199505

21852NUT, THROTTLE LEVER SET

main21852-30010i198708-199505

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i198708-199505

21934SOLENOID, THROTTLE VALVE

main21062-71100i198808-199208

main21062-71101i199302-199505

main21062-71110i198708-198808

main21062-72310i199208-199302

SINGAPORE SPEC

main21062-72380i199302-199505

SINGAPORE SPEC

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i198708-199505

21934FGASKET

main21617-10010i199208-199505

NO.1

main21649-38010×2i199208-199505

NO.2; SINGAPORE SPEC

2164933080GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

main21649-33080

2165511040RING, O(FOR LIFTER ROD)

main21655-11040

2175672160SPRING, BACK(FOR THROTTLE SHAFT)

main21756-72160

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

2182113310SCREW, 2ND THROTTLE VALVE SET

main21821-13310

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2182126400SCREW, 2ND THROTTLE VALVE SET

main21821-26400

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2188538310

main21885-38310

2622344050SCREW, SET(FOR POWER VALVE CAM)

main26223-44050

9099992002

main90999-92002

9411040800

main94110-40800

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400
