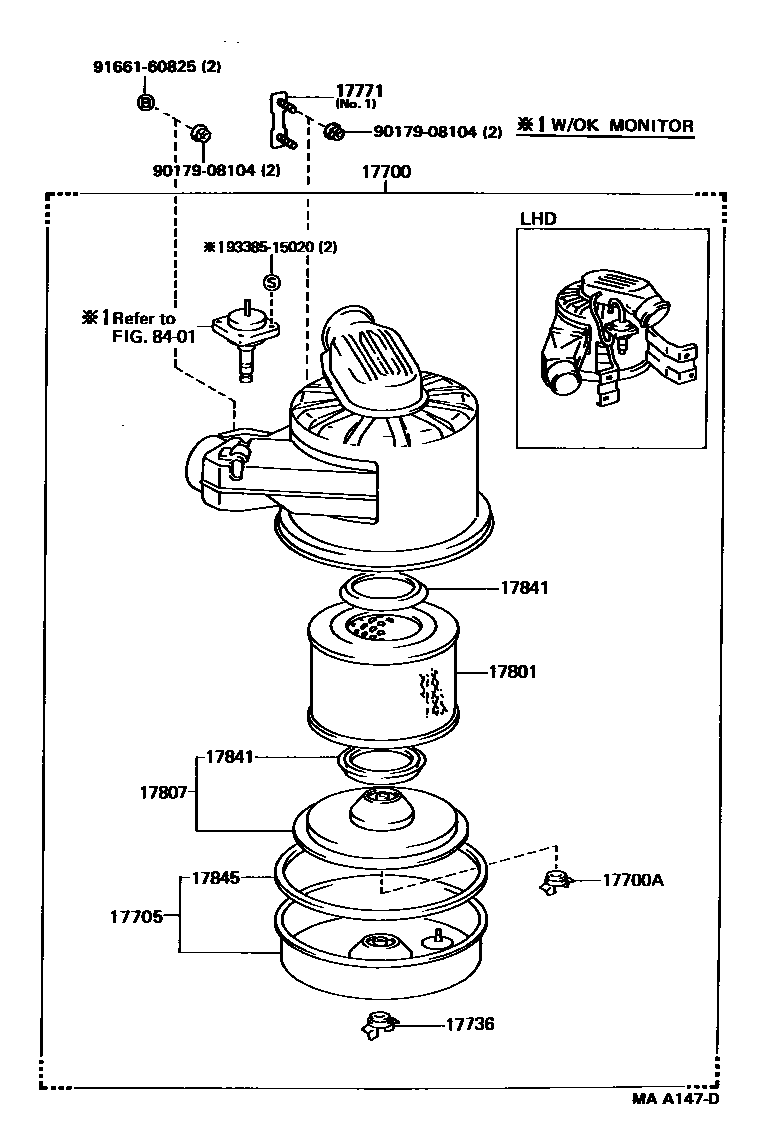

AIR CLEANER

0001 1 0002 1 0003 1 0004 1W(FRONT SCHNORKEL) 0005 1 0006 1 0009 1 0012 1SINGAPORE SPEC 0013 1

17700CLEANER ASSY, AIR

main17700-54350i3Y..YY61..RHD..ST198708-199505

main17700-54360i3Y..YY52,61..LHD198708-199505

main17700-54380i2L..LY60..RHD198708-198808

main17700-54390i2L..LY60..LHD198708-198808

main17700-54540i3L..LY61..RHD198808-199505

main17700-54550i3L..LY61..LHD198808-199505

main17700-71110i3Y..YY61..WT199208-199505

SINGAPORE SPEC

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i3Y..YY52,61198708-199505

17705CAP SUB-ASSY, AIR CLEANER

main17701-54200i3Y..YY52,61198708-199505

main17705-54260i3L..LY61198808-199505

17736NUT, AIR CLEANER CASE

main90175-06003i2L,3L..LY6#198708-199505

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54010i3Y..YY52,61..ST198708-199505

NO.2

main17771-54010i3Y..YY52,61..ST199208-199505

SINGAPORE SPEC,NO.2

main17771-54050i3L..LY61198808-199505

NO.2

main17771-71010i3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW199302-199505

SINGAPORE SPEC,NO.1

main17771-71010i3L..LY61198708-199505

NO.1

main17771-71010i2L..LY60198708-199505

N0.1

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31060i3Y..YY61..RHD..ST199208-199505

SINGAPORE SPEC

main17801-54070i3Y..YY52,61..ST198708-199505

main17801-58010i3L..LY61198808-199505

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54010i2L..LY60198708-199505

main17807-58010i3L..LY61198808-199505

17841GASKET, FILTER ELEMENT

main17841-44030i3L..LY61198808-199505

main17841-54010i3Y..YY52,61198708-199505

17845GASKET, AIR CLEANER CAP

main17845-54010i2L..LY60198708-199505

main17845-56020i3L..LY61198808-199505

8401

9017908104

main90179-08104

9166160825

main91661-60825

9338515020

main93385-15020

13 parts on this diagram · 9 diagrams in section
