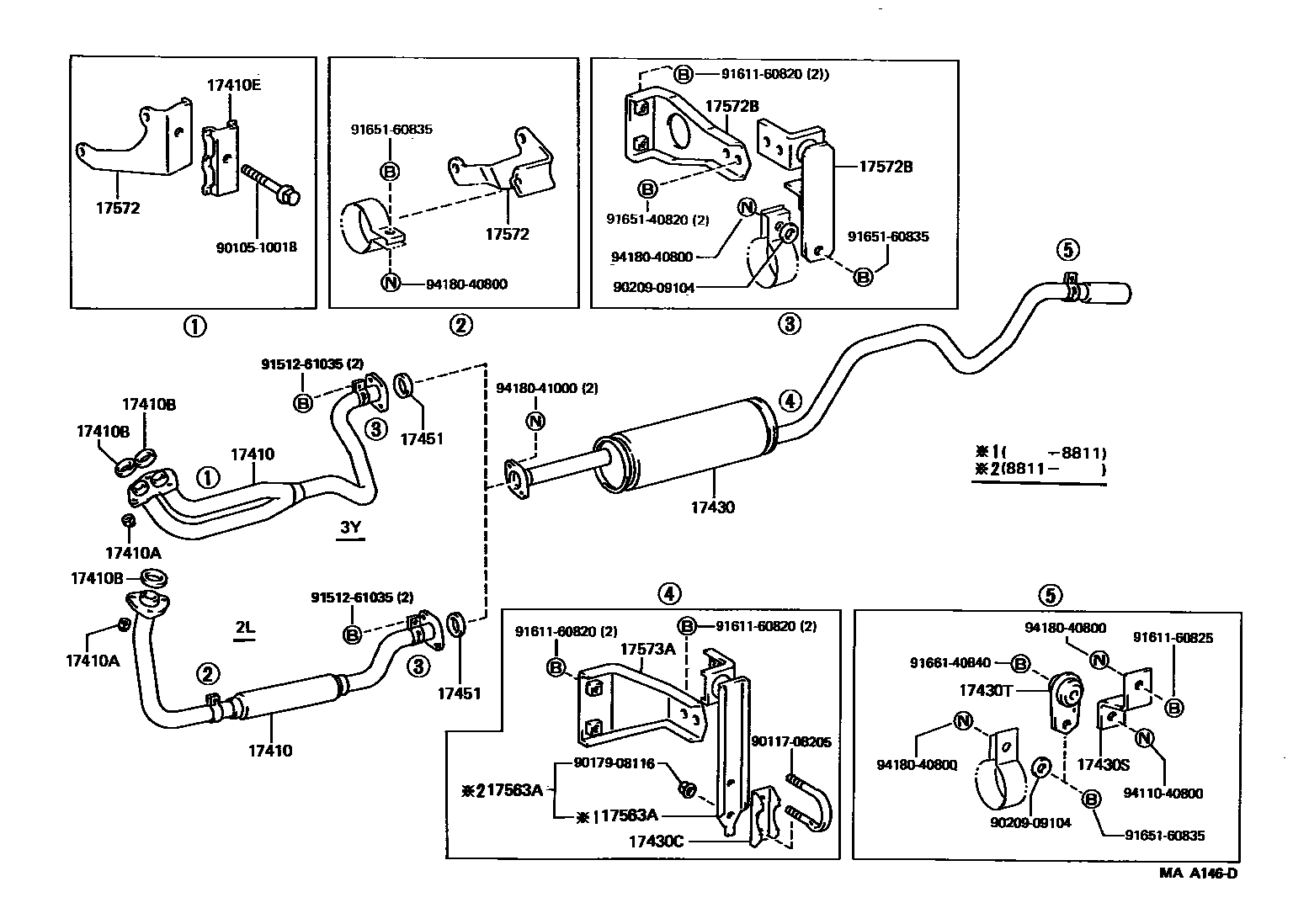

EXHAUST PIPE

0001 1 0004 1T2=SINGAPORE SPEC 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-54633i3L..LY61..ARL199210-199505

main17410-54640i2L..LY60198708-198808

main17410-54641i3L..LY61198808-198905

main17410-54642i3L..LY61198905-199107

main17410-54643i3L..LY61..GEN199210-199505

main17410-73300i3Y..YY52,61198708-198905

main17410-73301i3Y..YY52,61198905-199208

main17410-73520i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

SINGAPORE SPEC

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i2L,3L,3Y..LY6#,YY52,61198708-199505

17410BGASKET, EXHAUST PIPE

main90917-06001×2i3Y..YY52,61198708-199104

main90917-06004i2L..LY60198708-198808

main90917-06038×2i3Y..YY52,61199104-199505

main90917-06042i3L..LY61198808-199402

main90917-06066i3L..LY61199402-199505

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17589-27010i3Y..YY52,61198708-199505

17430PIPE ASSY, EXHAUST, TAIL

main17430-5B201i3L..LY61..ARL199210-199505

main17430-5B210i3L..LY61198808-198905

main17430-5B211i3L..LY61198905-199210

main17430-72300i3Y..YY61..RHD..ST; 3Y..YY61..WT199309-199411

SINGAPORE SPEC

main17430-72301i3Y..YY61..RHD..ST; 3Y..YY61..WT199411-199505

SINGAPORE SPEC

main17430-73250i3Y..YY52198708-199008

main17430-73251i3Y..YY52199008-199505

main17430-73260i2L,3Y..LY60,YY61198708-198905

main17430-73261i3Y..YY61198905-199208

main17430-73422i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199309

SINGAPORE SPEC

17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)

main90917-04021i3Y..YY52,61..ST199208-199505

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-54050i2L,3Y..LY60,YY52,61198708-198808

main17574-54060i3L..LY61198808-199505

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main90917-08009i3L,3Y..LY61,YY52;3Y..YY61..RHD..ST199208-199505

17451GASKET, EXHAUST PIPE

main90917-06004i2L,3Y..LY60,YY52,61198708-199104

main90917-06039i3Y..YY52,61199104-199208

main90917-06044i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

FR; SINGAPORE SPEC,FR

main90917-06045i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

RR; SINGAPORE SPEC,RR

main90917-06047i3L..LY61198809-199104

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-54060i2L,3Y..LY60,YY52,61198708-198811

main17563-59015i3Y..YY52,61198811-199208

main17565-63030×2i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

SINGAPORE SPEC

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-54280i2L..LY60198708-198808

main17571-54281i3L..LY61198808-199505

main17571-71040i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

SINGAPORE SPEC

main17571-73020i3Y..YY52,61198708-199208

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17562-54140i3Y..YY52,61..ST199208-199505

PIPE SIDE

main17562-54200i3L..LY61198808-199505

PIPE SIDE

main17562-72111i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

PIPE SIDE; SINGAPORE SPEC,PIPE SIDE

main17572-54140i3Y..YY61..ST;3L,3Y..LY61,YY52199208-199505

BODY SIDE

main17572-72040i3Y..YY61..RHD..ST; 3Y..YY61..WT199208-199505

BODY SIDE; SINGAPORE SPEC,BODY SIDE

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-54050i2L,3Y..LY60,YY52,61198708-199208

main17575-54040×2i3L..LY61;3Y..YY61..WT; 3Y..YY61..RHD..ST199208-199505

SINGAPORE SPEC

9010510018

main90105-10018

9011708205

main90117-08205

9017908116

main90179-08116

9020909104

main90209-09104

9151261035

main91512-61035

9161160820

main91611-60820

9161160825

main91611-60825

9165140820

main91651-40820

9165160835

main91651-60835

9166140840

main91661-40840

9411040800

main94110-40800

9418040800

main94180-40800

9418041000

main94180-41000

26 parts on this diagram · 3 diagrams in section
