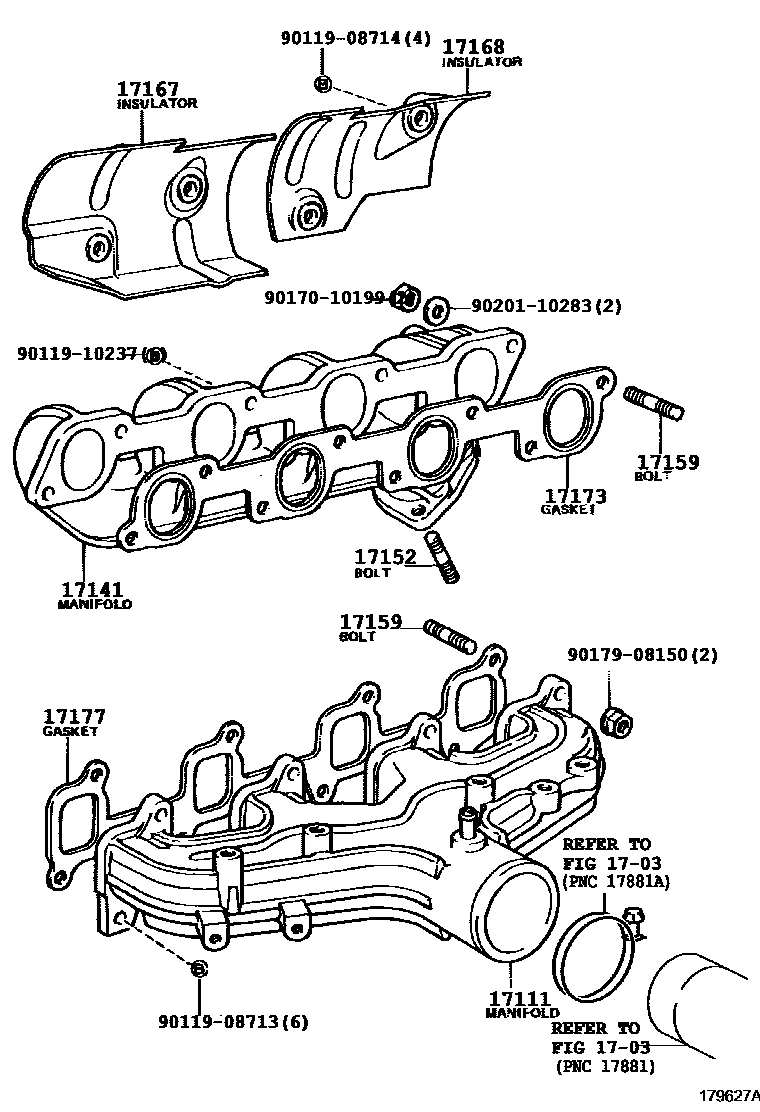

MANIFOLD

0001 1 0002 1 0003 1

1703

17111MANIFOLD, INTAKE

main17101-54030i2L..LY60..RHD..GEN..IV198708-198808

IRELAND SPEC

main17101-54040i2L..LY60..GEN198708-198808

main17101-54110i3L..LY61198808-199505

main17111-71010i3Y..YY61..WT199208-199505

SINGAPORE SPEC

main17111-71020i3Y..YY52,61..ST198708-199505

17141MANIFOLD, EXHAUST

main17141-54040i2L..LY60198708-198808

main17141-54110i3L..LY61198808-199505

main17141-71020i3Y..YY52,61198708-199505

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i3Y..YY52,61198708-198909

main90116-10088i2L,3L..LY6#198708-199505

main90116-10146i3Y..YY52,61199001-199505

main90116-10148i3Y..YY52,61198909-199001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L,3L..LY6#198708-199505

INTAKE SIDE

main90116-10063i3Y..YY52,61198708-199505

main90116-10141i2L,3L..LY6#198708-199505

EXHAUST SIDE

main92132-60820i3L..LY61199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54041i2L..LY60198708-198808

sub17167-54042

main17167-54070i3L..LY61198808-199505

main17167-71020i3Y..YY52,61198708-199505

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main12521-72010i3Y..YY52,61198708-199505

main17168-54011i2L..LY60198708-198808

sub17168-54012

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54011i2L..LY60198708-198808

sub17173-54012

main17173-54030i3L..LY61198808-199505

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54012i2L..LY60198708-198808

main17177-54020i3L..LY61198808-199505

sub17177-54021

9011908713

main90119-08713

9011908714

main90119-08714

9011910237

main90119-10237

9017010199

main90170-10199

9017908150

main90179-08150

9020110283

main90201-10283

15 parts on this diagram · 3 diagrams in section
