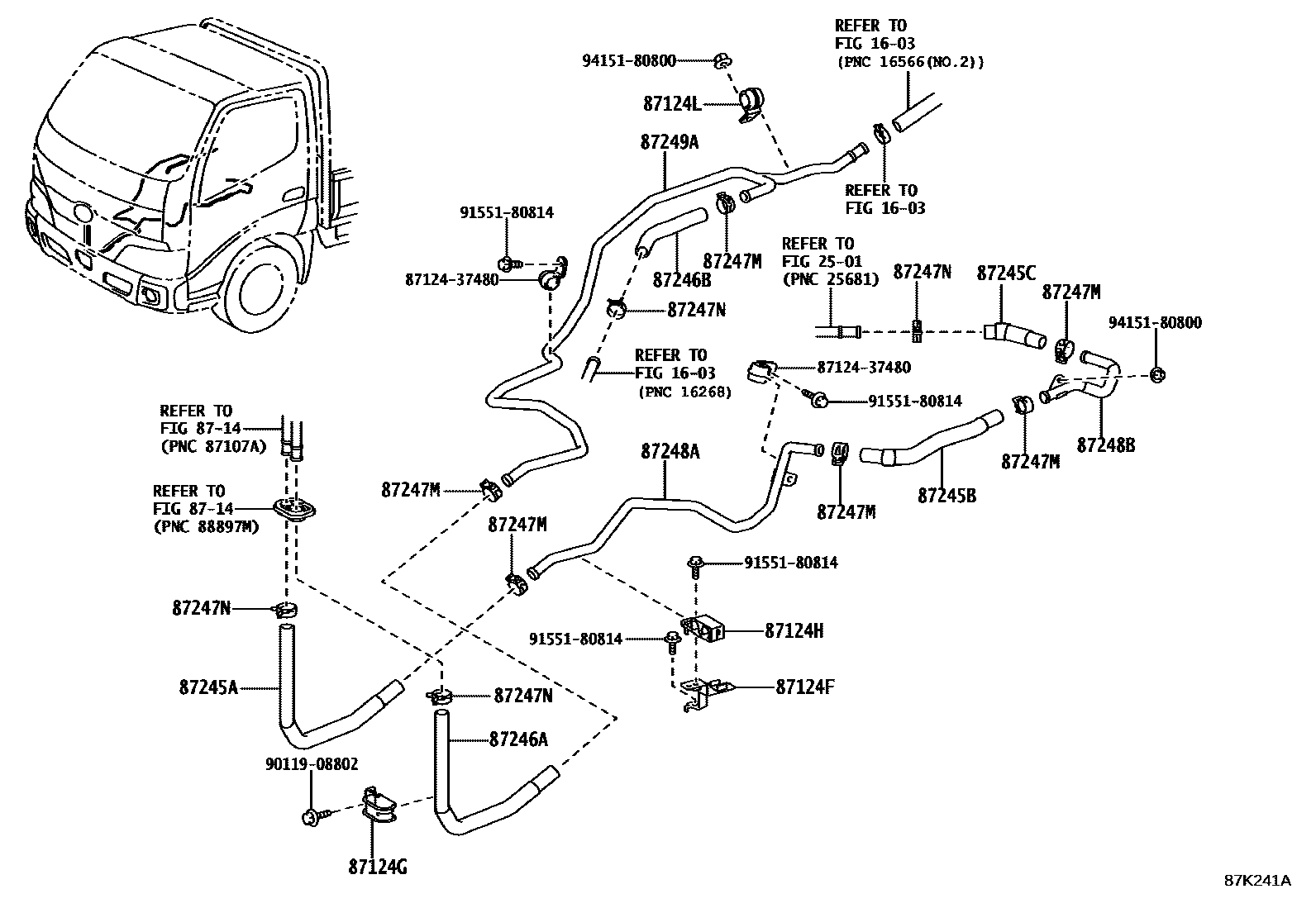

HEATING & AIR CONDITIONING - WATER PIPING

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

87124FCLAMP, HEATER HOSE, NO.1

main87124-25210i202108-202305

main87124-25230i202202-202503

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

87124GCLAMP, HEATER HOSE, NO.2

main87124-37090i202108-202305

87124HCLAMP, HEATER HOSE, NO.3

main87124-37490i202108-202305

87124LCLAMP, HEATER HOSE, NO.4

main87124-37480i202108-202305

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-25E70i202108-202305

87245BHOSE, HEATER WATER, INLET B

main87245-25E00i202108-202305

main99556-30300i202202-202503

*H,L=220,FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

87245CHOSE, HEATER WATER ,INLET C

main87245-25E10i202108-202305

main87245-25G40i202202-202503

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

87246AHOSE, HEATER WATER, OUTLET A

main87245-25E80i202108-202305

main99556-30300i202202-202503

*H,L=250,FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

87246BHOSE, HEATER WATER, OUTLET B

main87245-25E90i202108-202305

main87245-25G50i202202-202503

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

87247MCLIP, HOSE

main90467-21010×6i202108-202305

87247NCLIP, HOSE

main90466-26004×4i202108-202305

87248APIPE, HEATER WATER INLET, A

main87248-25430i202108-202305

main87248-25550i202202-202503

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

87248BPIPE, HEATER WATER INLET, B

main87248-25390i202108-202206

main87248-25391i202207-202305

87249APIPE, HEATER WATER OUTLET, A

main87248-25440i202108-202305

main87248-25560i202202-202503

FRONT HEATER-WITH & WITHOUT(IDLE UP SWITCH)

8712437480CLAMP, HEATER

main87124-37480

9011908802

main90119-08802

9155180814

main91551-80814

9415180800

main94151-80800

21 parts on this diagram · 2 diagrams in section
