RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1DESIGN

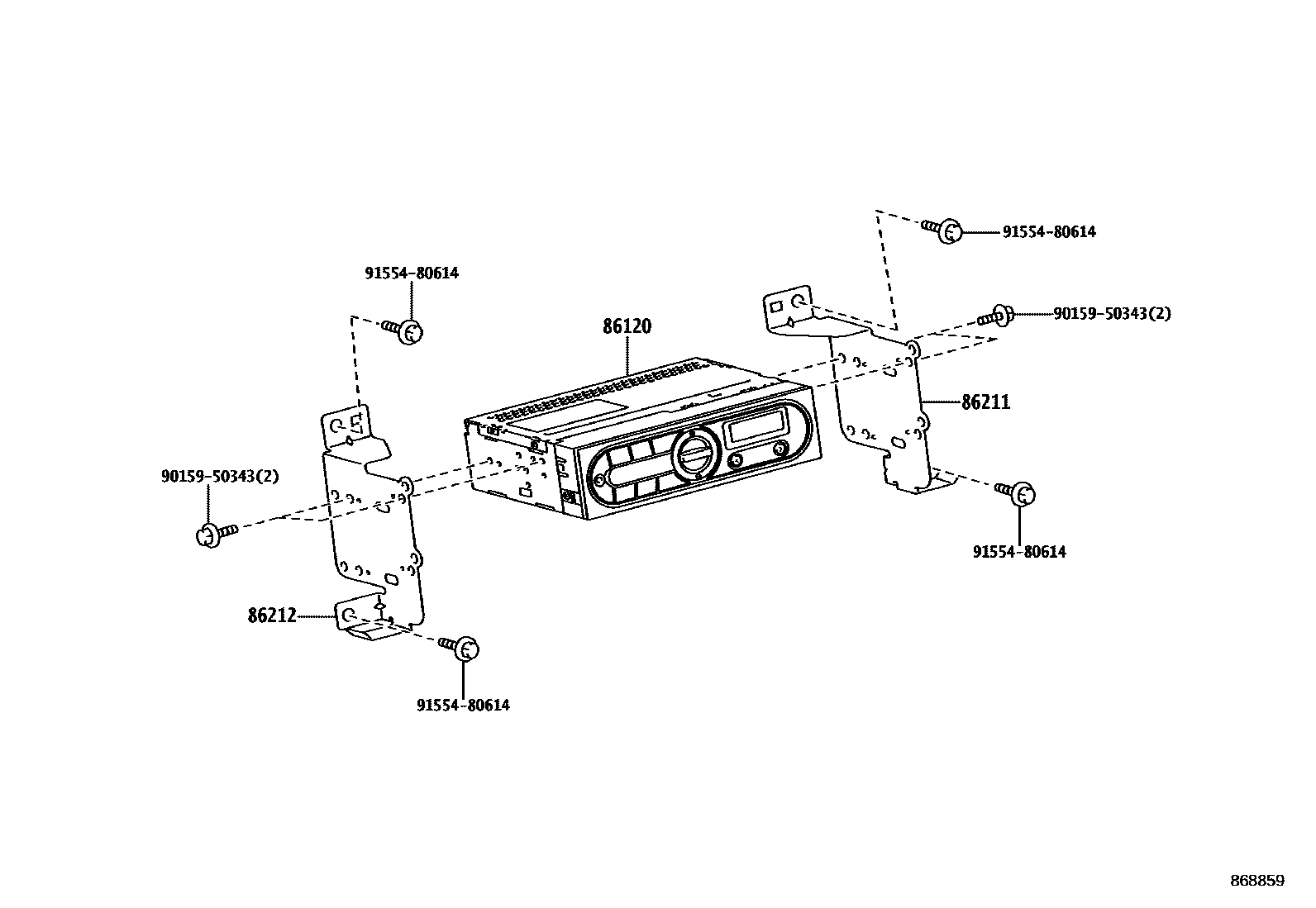

86120RECEIVER ASSY, RADIO

main86120-25100iGDY231..CBU202108-202305

CLARION,AUDIO-AM/FM 2SPEAKER,TYPE A:REFER ILLUST.

main86120-25130iGDY231202108-202202

CLARION,AUDIO-AM/FM/USB/AUX/*BT 2SPEAKER,TYPE B:REFER ILLUST.

main86120-25131iGDY231202203-202206

CLARION,AUDIO-AM/FM/USB/AUX/*BT 2SPEAKER,TYPE B:REFER ILLUST.

main86120-25132iGDY231..IV3202207-202405

CLARION,AUDIO-AM/FM/USB/AUX/*BT 2SPEAKER,TYPE B:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-37110iGDY231..IV3202108-202405

86212BRACKET, RADIO, NO.2

main86212-37090iGDY231..CBU202108-202305

9015950343

main90159-50343

9155480614

main91554-80614

5 parts on this diagram · 2 diagrams in section
