ABS & VSC

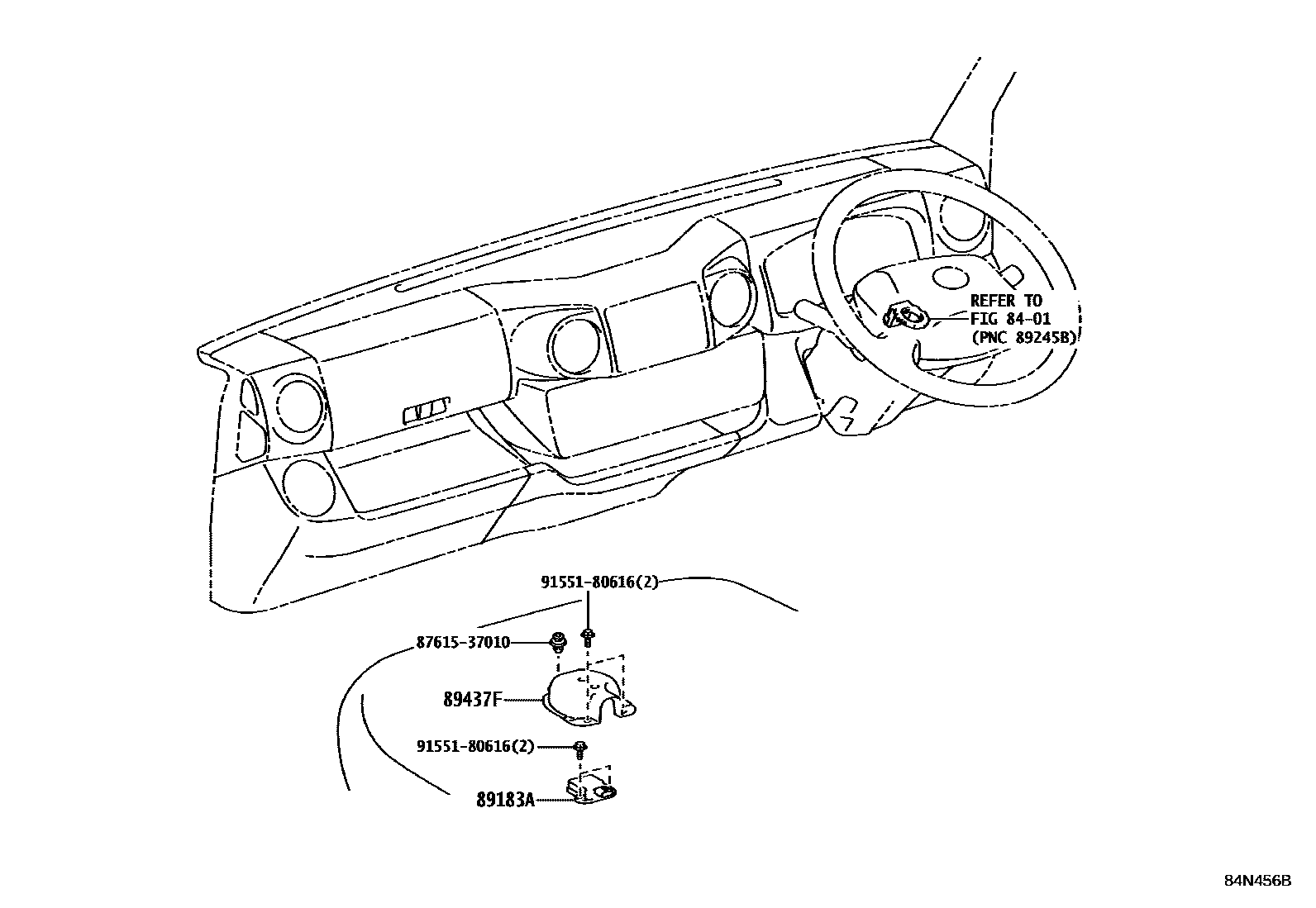

Parts diagram

8401

89183ASENSOR, YAWRATE

main89183-37011i202108-202305

89437FCOVER, SENSOR

main89437-37021i202108-202305

8761537010RETAINER, INSULATOR

main87615-37010

9155180616

main91551-80616

5 parts on this diagram · 3 diagrams in section
