WIRING & CLAMP

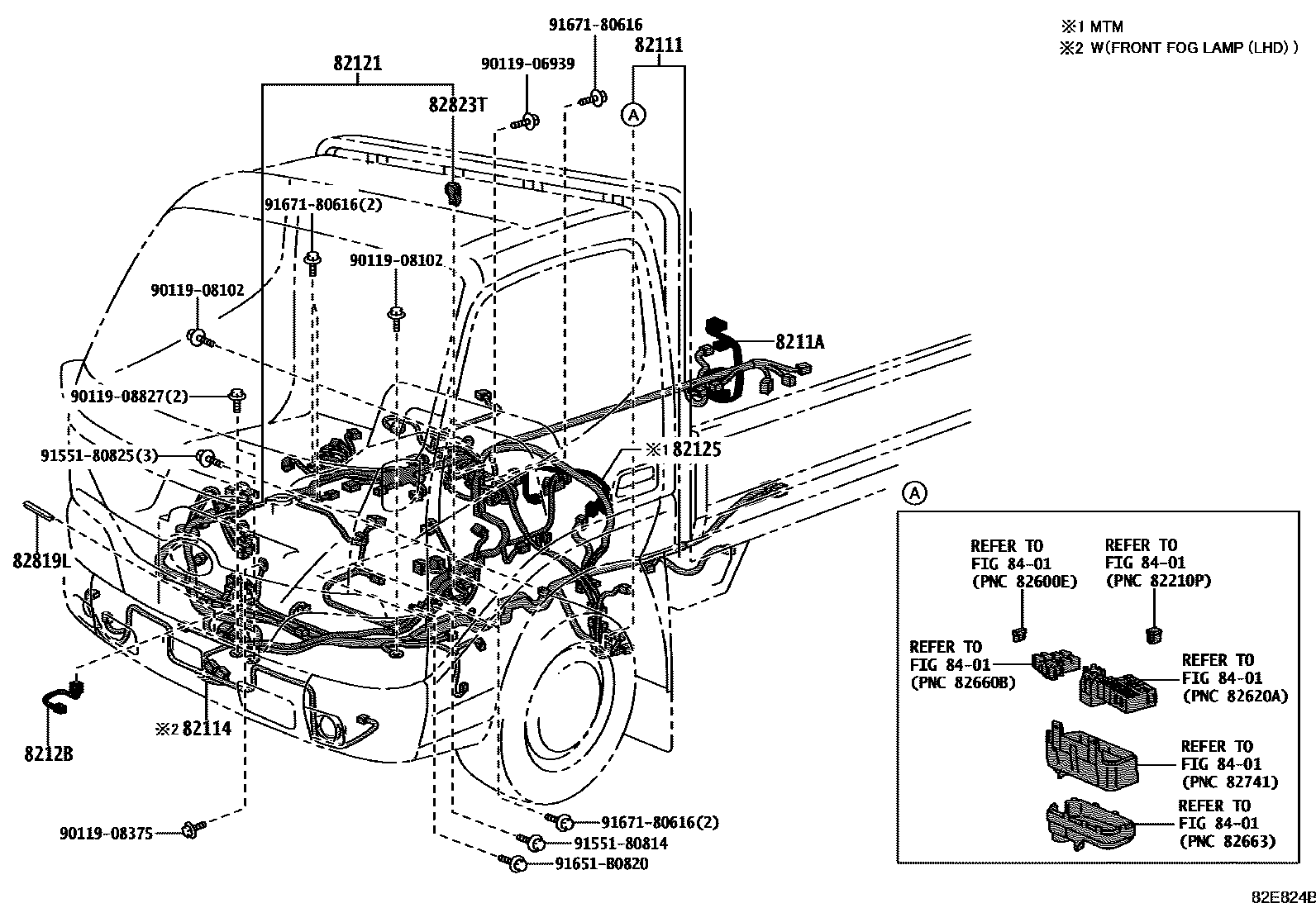

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL & COWL 0004 1INSTRUMENT PANEL & COWL 0005 1BODY 0006 1BODY 0007 1CLAMP & BRACKET 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/2 0010 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-25R50iGDY231..5F..CBU202108-202305

main82111-25R60iGDY231..6FC202108-202305

main82111-25R70iGDY231..IV3202202-202405

main82111-25S10iLY230..RHD202202-202503

main82111-25S70iLY230..LHD202202-202503

82114WIRE, ENGINE ROOM, NO.4

main82114-37280iGDY231..CBU202108-202305

FRONT FOG LAMP-WITH(LED)

8211AWIRE, ENGINE ROOM, NO.6

main8211A-25020iGDY231..CBU202108-202305

82121WIRE, ENGINE

main82121-25590iGDY231..5F..CBU202108-202305

main82121-25630iGDY231..6FC202108-202305

main82121-25680iGDY231..IV3202202-202405

82125WIRE, TRANSMISSION

main82125-25260iGDY231..5F..CBU202108-202305

main82125-25270iLY230202202-202503

8212BWIRE, ENGINE, NO.10

main8212B-25010iGDY231..CBU202108-202305

82819LPROTECTOR, WIRING HARNESS, NO.27

main82817-37540iGDY231..IV3202403-202405

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iLY230202202-202503

main82823-25010iGDY231..CBU202108-202305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906939

main90119-06939

9011908102

main90119-08102

9011908375

main90119-08375

9011908827

main90119-08827

9155180814

main91551-80814

9155180825

main91551-80825

91651B0820

main91651-B0820

9167180616

main91671-80616

17 parts on this diagram · 10 diagrams in section
