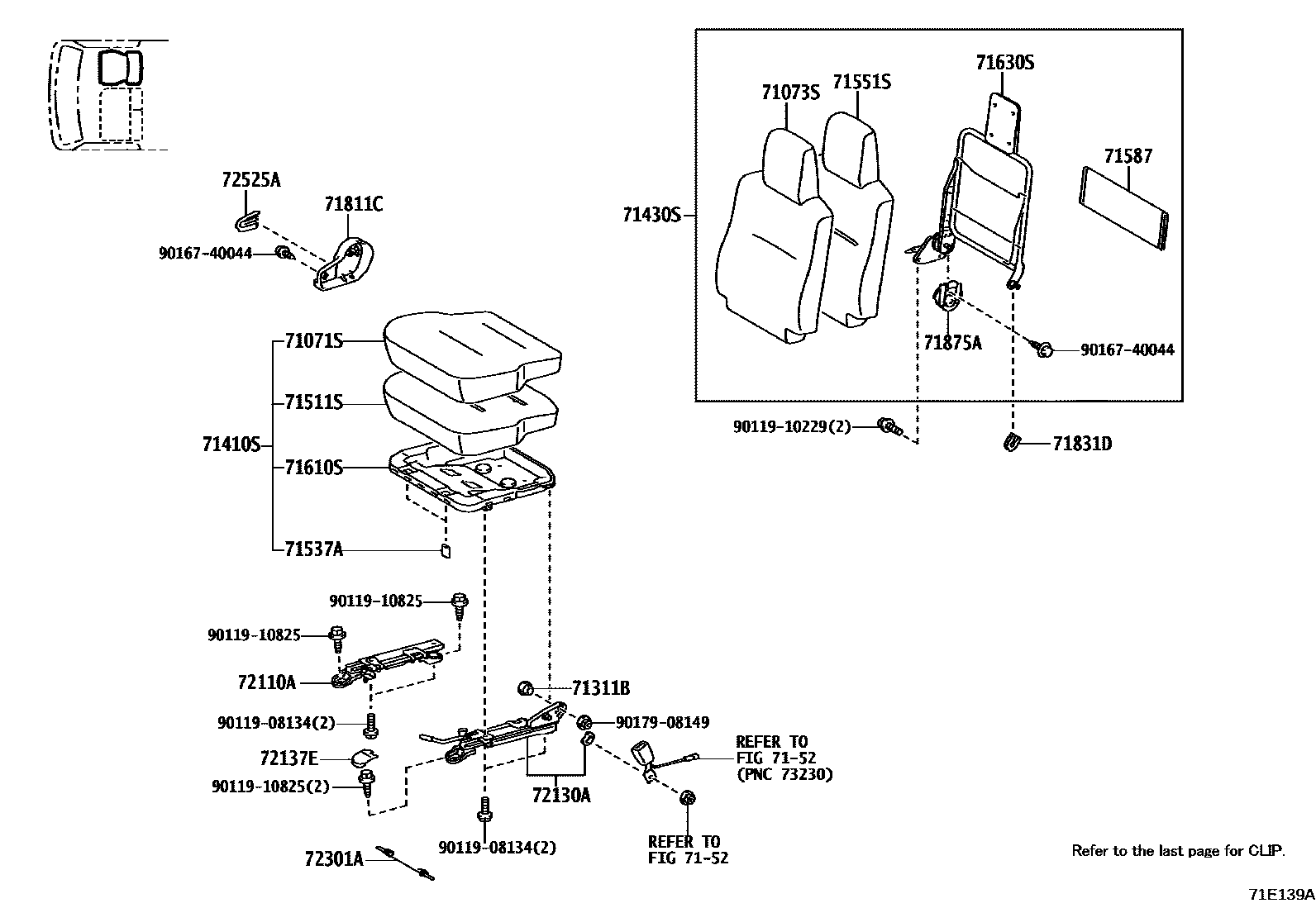

SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1DRIVER SIDE 0003 1PASSENGER SIDE(INTEGRATED) 0004 1PASSENGER SIDE(SEPARATE) 0005 1PASSENGER SIDE 0006 1PASSENGER SIDE 0007 1CLIP

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37D50-C0supersedes 71071-37D60-B0iLY230..LHD202202-202503

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37D20-C0supersedes 71073-37D30-B0iLY230..LHD202202-202503

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12053iGDY231..CBU202108-202305

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37G20-C0supersedes 71410-37G30-B0iLY230..LHD202202-202503

***,SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-37F00-C0supersedes 71430-37F10-B0iLY230..LHD202202-202503

***,SEAT COVER MATERIAL-FABRIC,BLACK,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-37100iLY230..LHD202202-202503

main71511-37130iGDY231..CBU202108-202305

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010×2iGDY231..CBU202108-202305

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37280iGDY231..CBU202108-202305

main71551-37320iLY230..LHD202202-202503

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37022iGDY231..CBU202108-202305

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-37051iGDY231..CBU202108-202305

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-37180iGDY231..CBU202108-202305

main71630-37210iLY230..LHD202202-202503

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37022-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

71831DCOVER, FRONT SEAT HINGE, RH

main71832-37010iGDY231..CBU202108-202305

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-37010iGDY231..CBU202108-202305

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iGDY231..CBU202108-202305

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-25010iLY230..RHD202108-202503

72137ECOVER, SEAT TRACK, NO.1

main72137-37010-B1iGDY231..IV3202108-202405

GRAY,TRIM1#

main72138-37010-B1iLY230..LHD202202-202503

GRAY,TRIM1#

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37030iGDY231..CBU202108-202305

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37020-B1iGDY231..CBU202108-202305

GRAY,TRIM1#

9011908134

main90119-08134

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908149

main90179-08149

25 parts on this diagram · 7 diagrams in section
