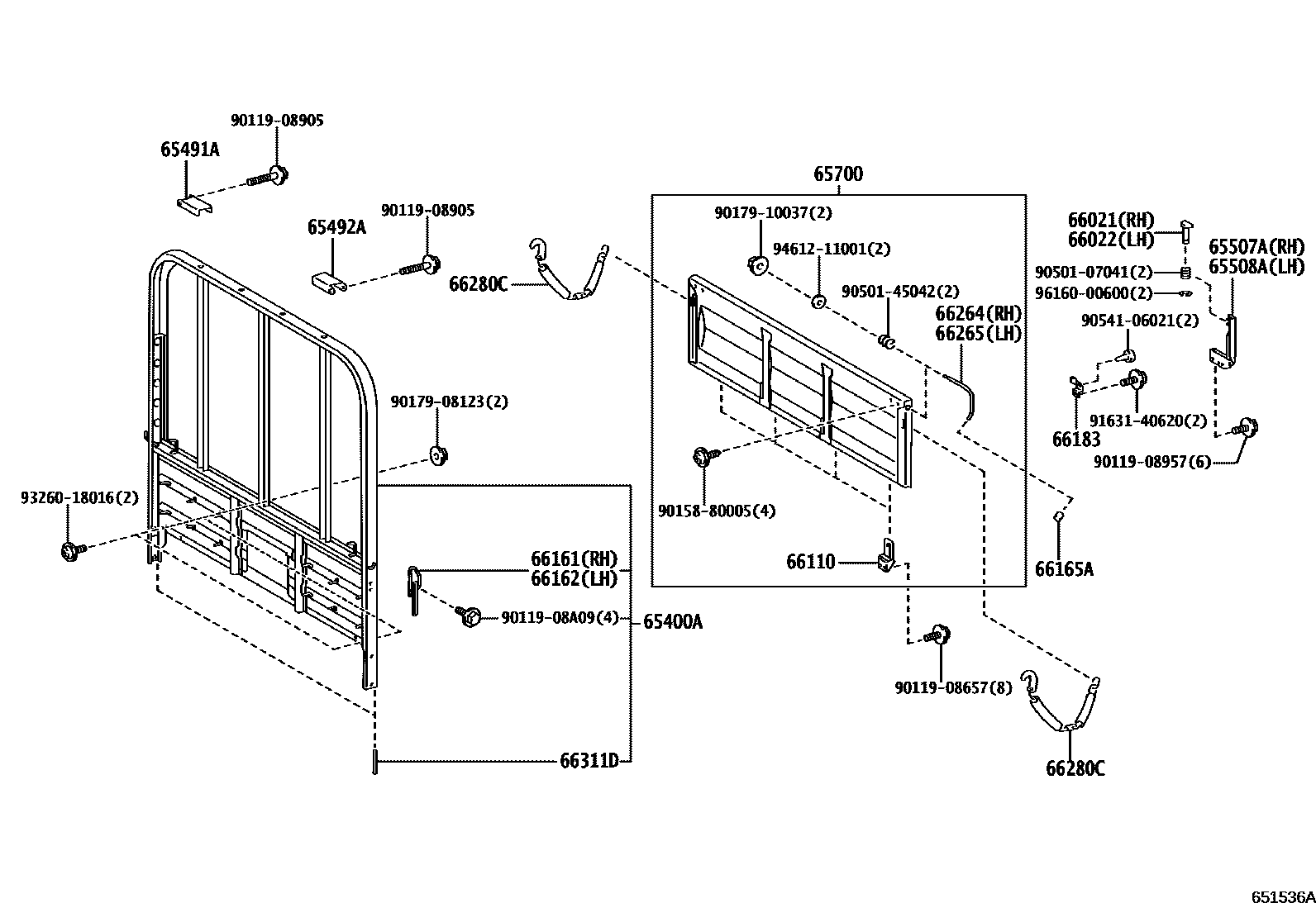

REAR BODY GUARD FRAME & TAIL GATE

65400AGUARD ASSY, REAR BODY

main65400-25810iGDY231..CBU202108-202305

main65400-25850iLY230..CBU202202

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25010iGDY231..CBU202108-202305

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25010iGDY231..CBU202108-202305

65507ASUPPORT SUB-ASSY, CORNER, RH

main66013-25010iGDY231..CBU202108-202305

65508ASUPPORT SUB-ASSY, CORNER, LH

main66014-25010iGDY231..CBU202108-202305

65700GATE ASSY, REAR BODY TAIL

main65700-26010iGDY231..CBU202108-202305

66021HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, RH

main66021-25010iGDY231..CBU202108-202305

66022HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, LH

main66022-25010iGDY231..CBU202108-202305

66110HINGE ASSY, TAIL GATE

main66110-26010×4iGDY231..CBU202108-202305

66161HANDLE, SIDE GATE LATCH, RH

main65480-92700iGDY231..CBU202108-202305

66162HANDLE, SIDE GATE LATCH, LH

main65490-92701iGDY231..CBU202108-202305

66165ACAP, GATE LATCH HANDLE

main66165-87402×2iGDY231..CBU202108-202305

66183STOPPER, TAIL GATE

main66187-25010×2iGDY231..CBU202108-202305

66264HANDLE, TAIL GATE LATCH, RH

main66264-26010iGDY231..CBU202108-202305

66265HANDLE, TAIL GATE LATCH, LH

main66265-26010iGDY231..CBU202108-202305

66280CCHAIN ASSY, TAIL GATE

main66280-25010×2iGDY231..CBU202108-202305

66311DHOOK, ROPE

main66312-95A01×2iGDY231..CBU202108-202305

9011908657

main90119-08657

9011908905

main90119-08905

9011908957

main90119-08957

9011908A09

main90119-08A09

9015880005

main90158-80005

9017908123

main90179-08123

9017910037

main90179-10037

9050107041

main90501-07041

9050145042

main90501-45042

9054106021

main90541-06021

9163140620

main91631-40620

9326018016

main93260-18016

9461211001

main94612-11001

9616000600

main96160-00600

31 parts on this diagram · 1 diagram in section
