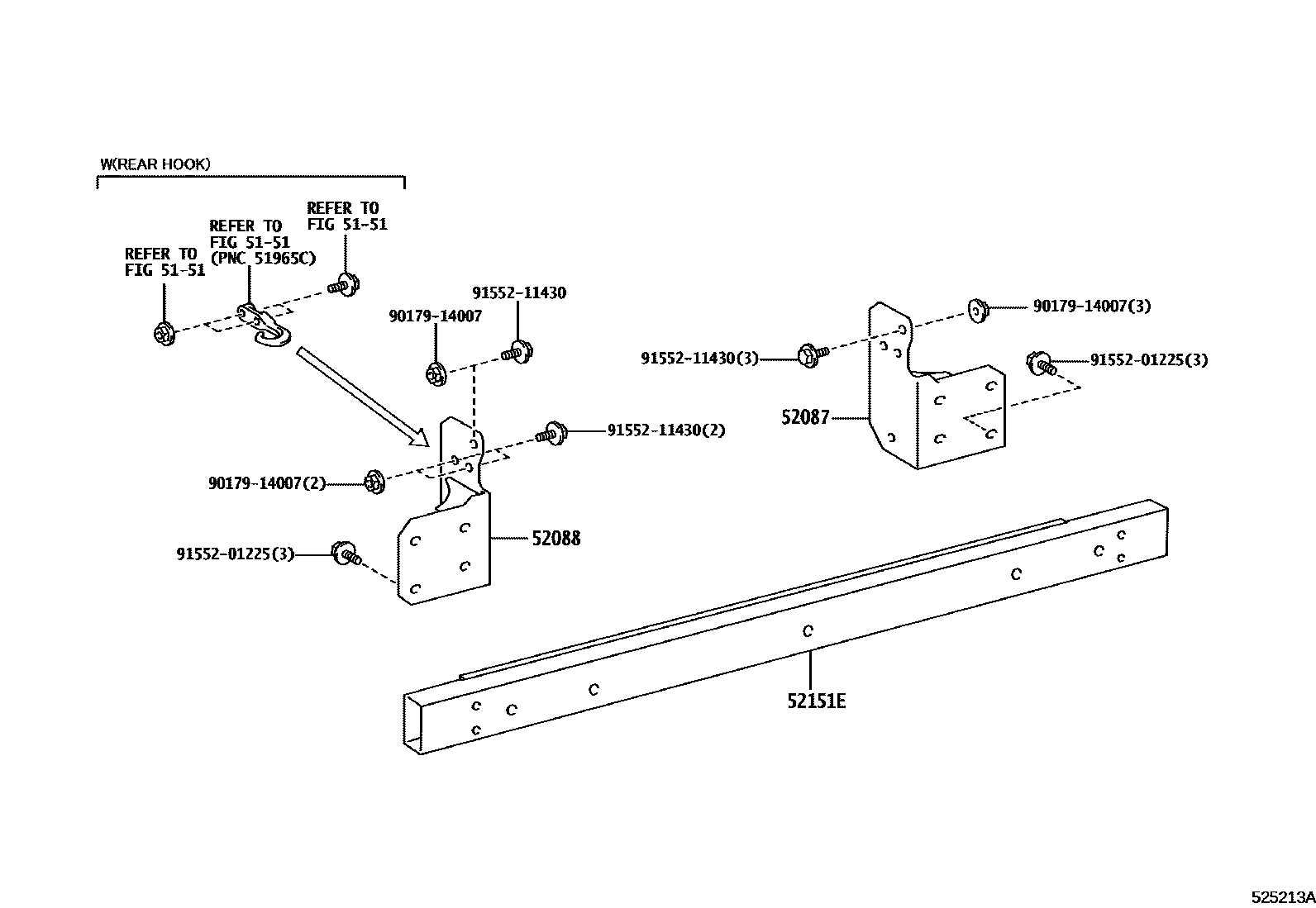

REAR BUMPER & BUMPER STAY

5151FRAME

→ Go to FIG 51-51

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-25050iGDY231..CBU202108-202305

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-25020iGDY231..CBU202108-202305

52151EBAR, REAR BUMPER

main52105-25040iGDY231..CBU202108-202305

NO PAINT REQ.

9017914007

main90179-14007

9155201225

main91552-01225

9155211430

main91552-11430

7 parts on this diagram · 1 diagram in section
