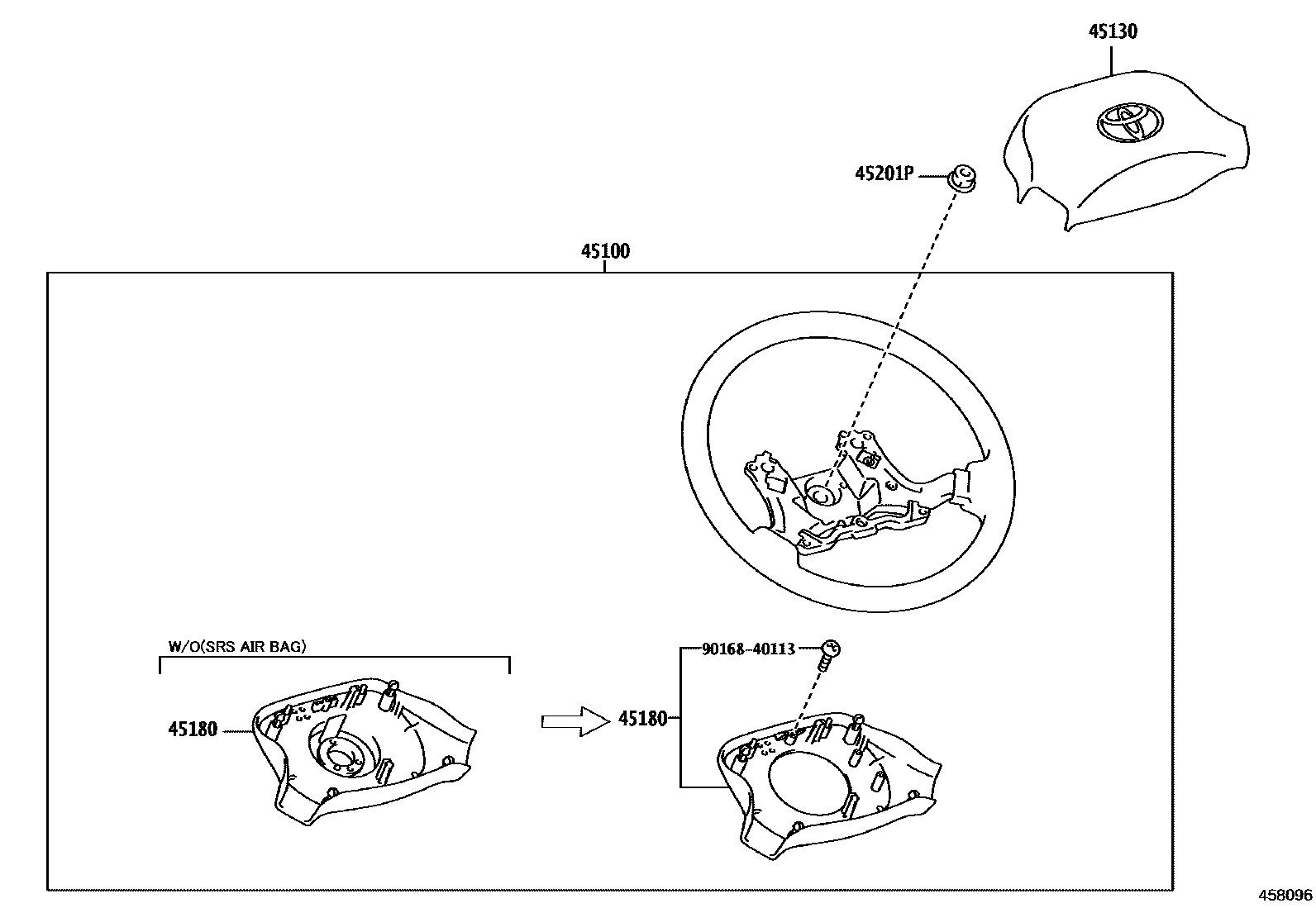

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-37090-C0iGDY231..CBU202108-202405

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37100-C0iLY230202202-202503

2-SPOKE,URETHANE,BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-37170-C0iGDY231..CBU202108-202405

BLACK,TRIM1#

main45130-37190-C0iLY230202202-202503

BLACK,TRIM1#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-37050-C0iGDY231..CBU202108-202405

BLACK,TRIM1#

main45180-37060-C0iLY230202202-202503

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iGDY231..CBU202108-202503

9016840113

main90168-40113

5 parts on this diagram · 1 diagram in section
