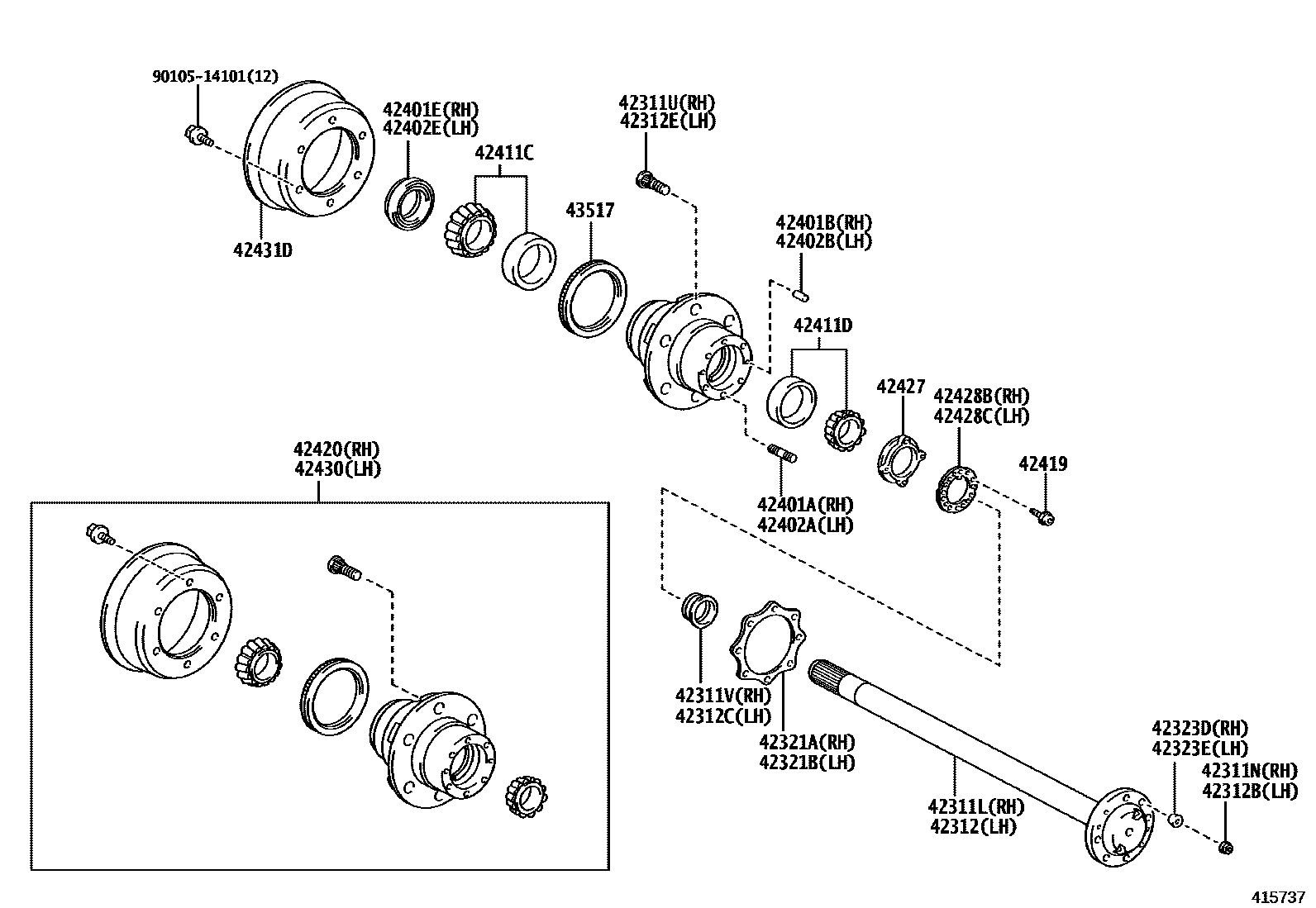

REAR AXLE SHAFT & HUB
42311LSHAFT, REAR AXLE, RH
42311NNUT(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42312SHAFT, REAR AXLE, LH
42312BNUT(FOR REAR AXLE SHAFT LH)
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42321AGASKET, REAR AXLE SHAFT, RH
42321BGASKET, REAR AXLE SHAFT, LH
42323DWASHER, CONE (FOR REAR AXLE SHAFT RH)
42323EWASHER, CONE (FOR REAR AXLE SHAFT LH)
42401ABOLT, STUD (FOR REAR AXLE HUB RH)
42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)
42401ESEAL, OIL (FOR REAR AXLE HUB RH)
42402ABOLT, STUD (FOR REAR AXLE HUB LH)
42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)
42402ESEAL, OIL (FOR REAR AXLE HUB LH)
42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
42419SCREW, REAR AXLE BEARING LOCK NUT
42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42427NUT, REAR AXLE BEARING LOCK
42428BPLATE, REAR AXLE LOCK NUT, RH
42428CPLATE, REAR AXLE LOCK NUT, LH
42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42431DDRUM, BRAKE
43517ROTOR, SKID CONTROL, REAR
9010514101
main90105-14101
29 parts on this diagram · 2 diagrams in section
