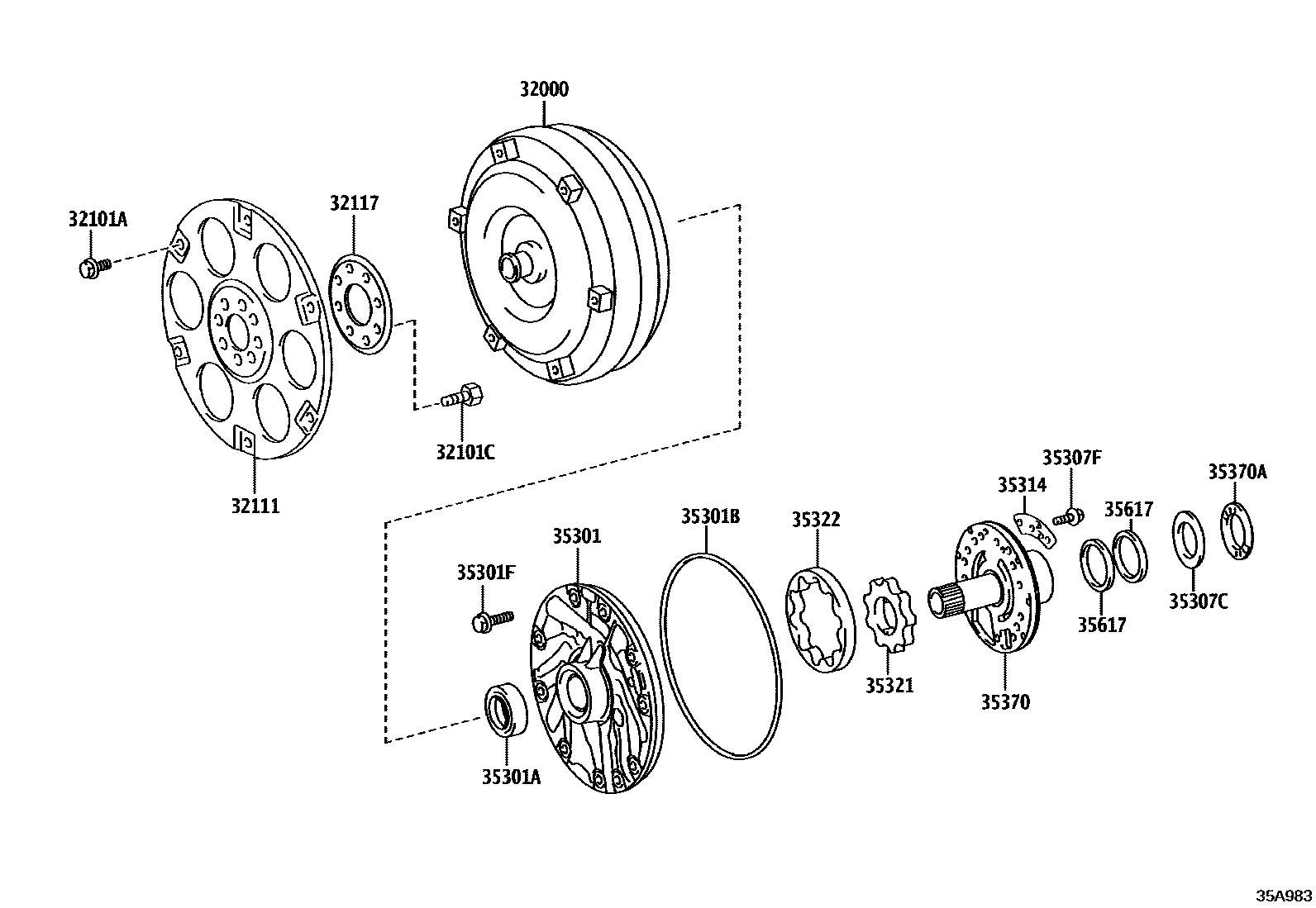

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-26100iGDY231..6FC202108-202305

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5iGDY231..6FC202108-202305

*10-1.5PX11-8,SILVER WHITE

main90105-10546iGDY231..6FC202108-202305

*10-1.5PX11-8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-13015×8iGDY231..6FC202108-202305

*13-1.5PX43.5-23.5

32111PLATE, PUMP IMPELLER DRIVE

main32111-71010iGDY231..6FC202108-202305

32117SPACER, DRIVE PLATE, REAR

main32117-60050iGDY231..6FC202108-202305

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iGDY231..6FC202108-202305

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGDY231..6FC202108-202305

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGDY231..6FC202108-202305

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×10iGDY231..6FC202108-202305

*8-1.25PX35-35

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGDY231..6FC202108-202305

35307FBOLT (FOR STATOR SHAFT)

main90148-60079×10iGDY231..6FC202108-202305

35314PLATE, FRONT OIL PUMP

main35314-71020iGDY231..6FC202108-202305

35321GEAR, FRONT OIL PUMP DRIVE

main35321-71010iGDY231..6FC202108-202305

T=9.977-9.983

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-71010iGDY231..6FC202108-202305

T=9.977-9.983

35370SHAFT ASSY, STATOR

main35370-71010iGDY231..6FC202108-202305

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGDY231..6FC202108-202305

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030×2iGDY231..6FC202108-202305

17 parts on this diagram · 1 diagram in section
