TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

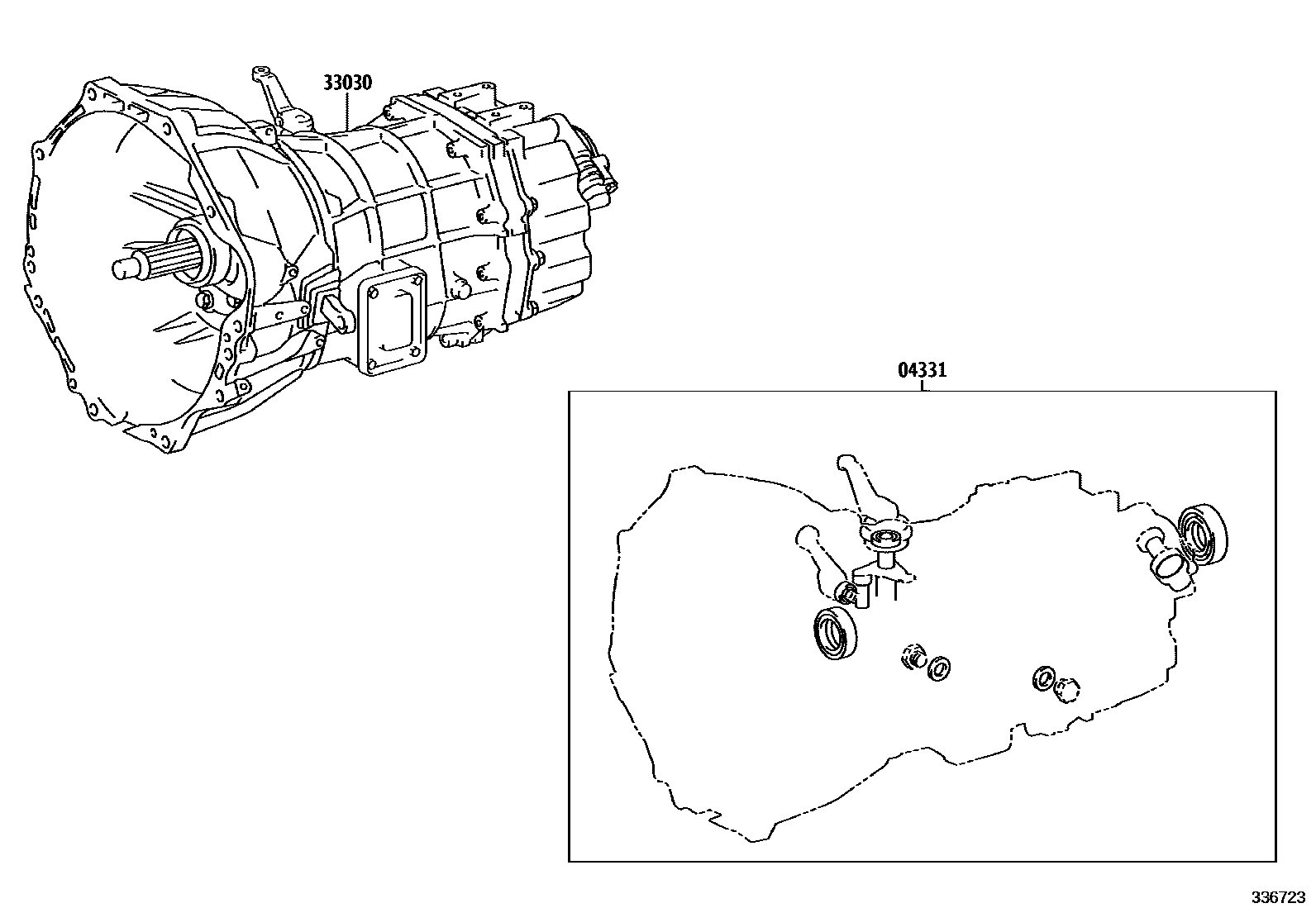

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25090i202108-202305

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-25480i202108-202305

R451

main33030-25520i202202-202503

R452

2 parts on this diagram · 1 diagram in section
