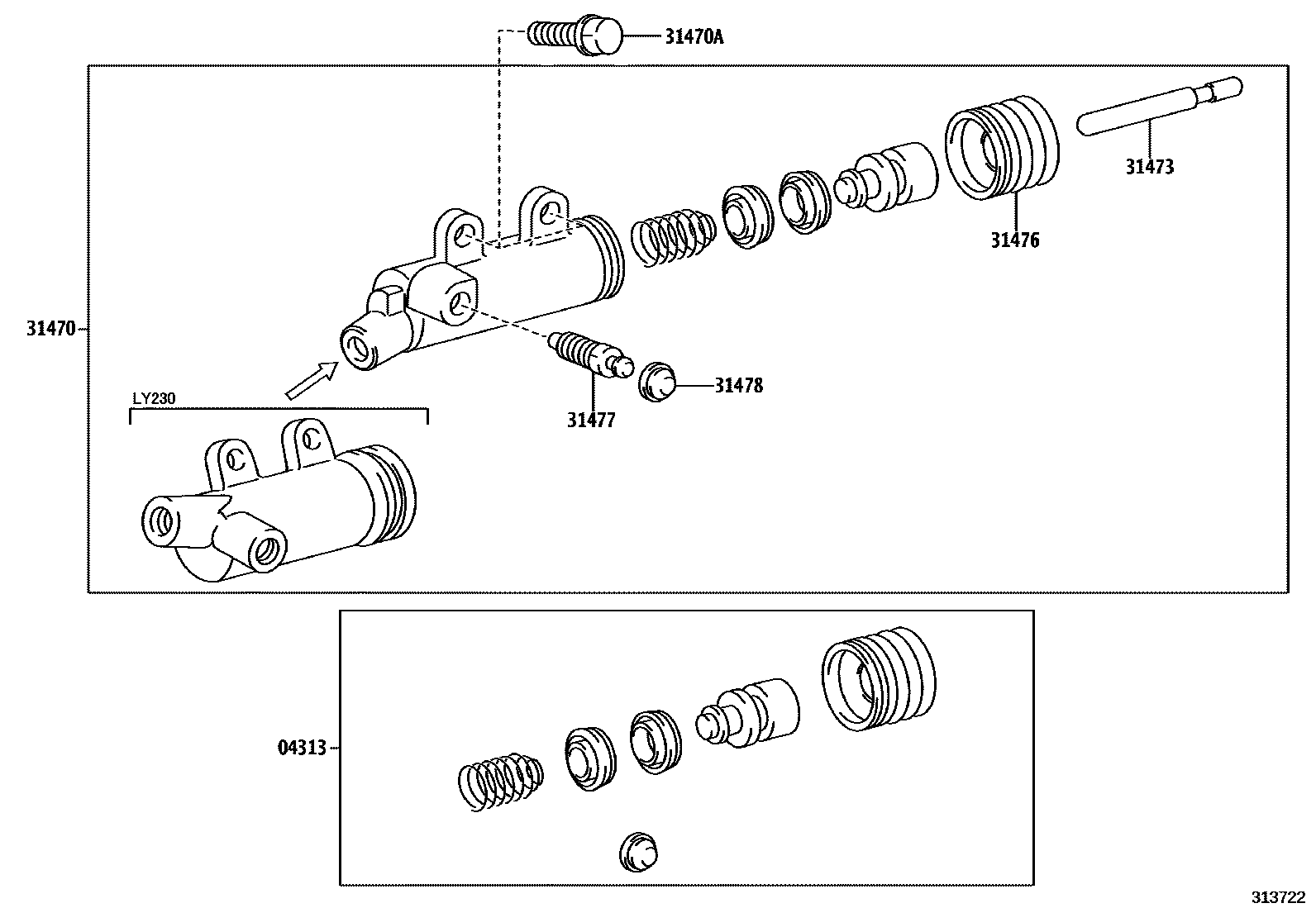

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLY230202202-202503

main04313-25070iGDY231..5F..CBU202108-202305

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35110iLY230202202-202503

main31470-35140iGDY231..5F..CBU202108-202305

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iGDY231..5F..CBU202108-202305

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35050iLY230202202-202503

main31473-52020iGDY231..IV3202108-202405

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGDY231..5F..CBU202108-202305

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGDY231..5F..CBU202108-202305

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGDY231..5F..CBU202108-202305

7 parts on this diagram · 1 diagram in section
