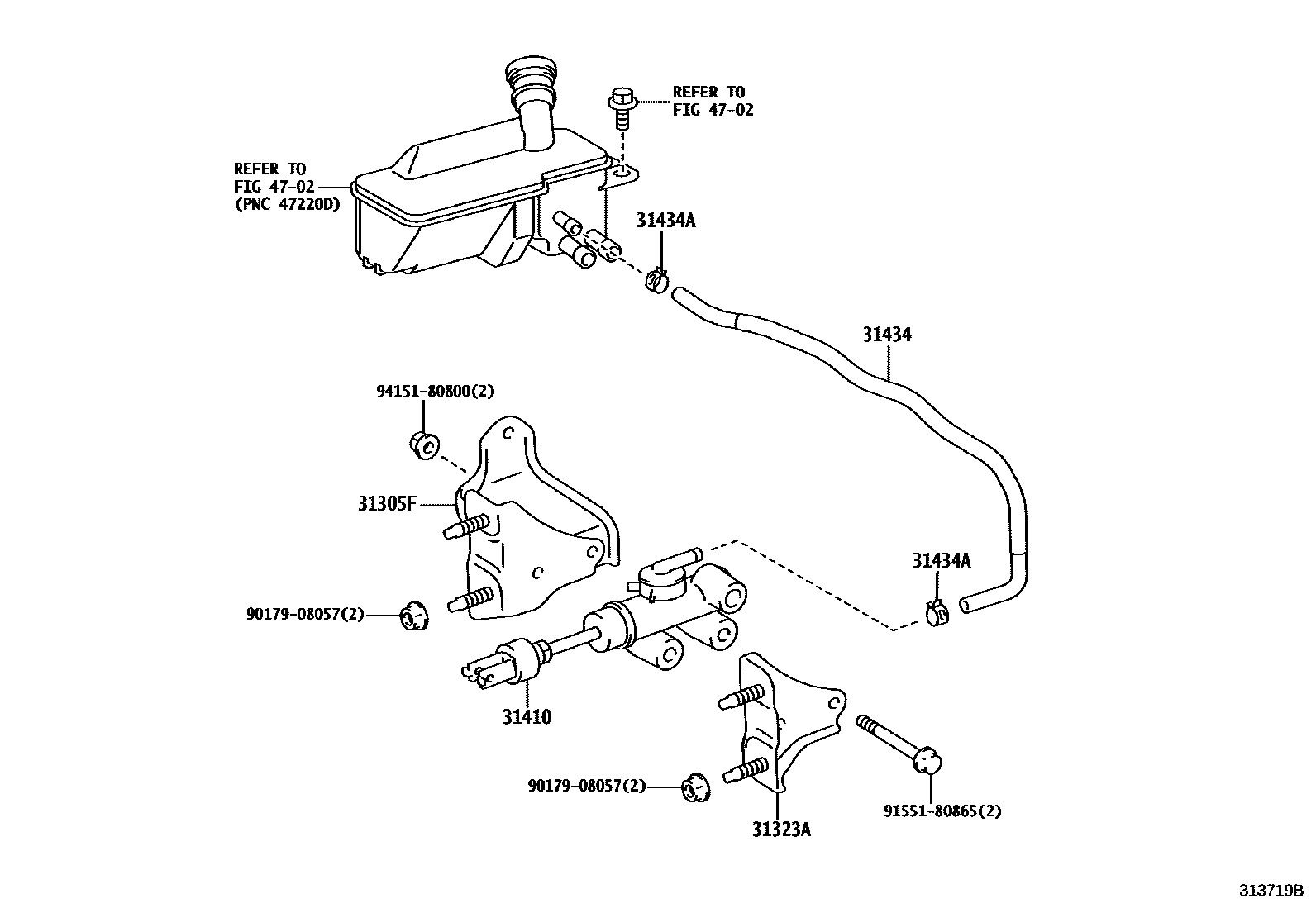

CLUTCH MASTER CYLINDER

0001 1 0002 1

31305FBRACKET SUB-ASSY, CLUTCH PEDAL

main31305-37050iGDY231..5F..CBU202108-202305

31323ABRACKET, CLUTCH PEDAL

main31323-37120iGDY231..5F..CBU202108-202305

31410CYLINDER ASSY, CLUTCH MASTER

main31420-37142iGDY231..5F..CBU202108-202305

31434TUBE, CLUTCH RESERVOIR

main31434-37260iGDY231..5F..CBU202108-202305

main31434-37280iLY230..LHD202202-202503

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41300×2iGDY231..5F..CBU202108-202305

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908057

main90179-08057

9155180865

main91551-80865

9415180800

main94151-80800

9 parts on this diagram · 2 diagrams in section
