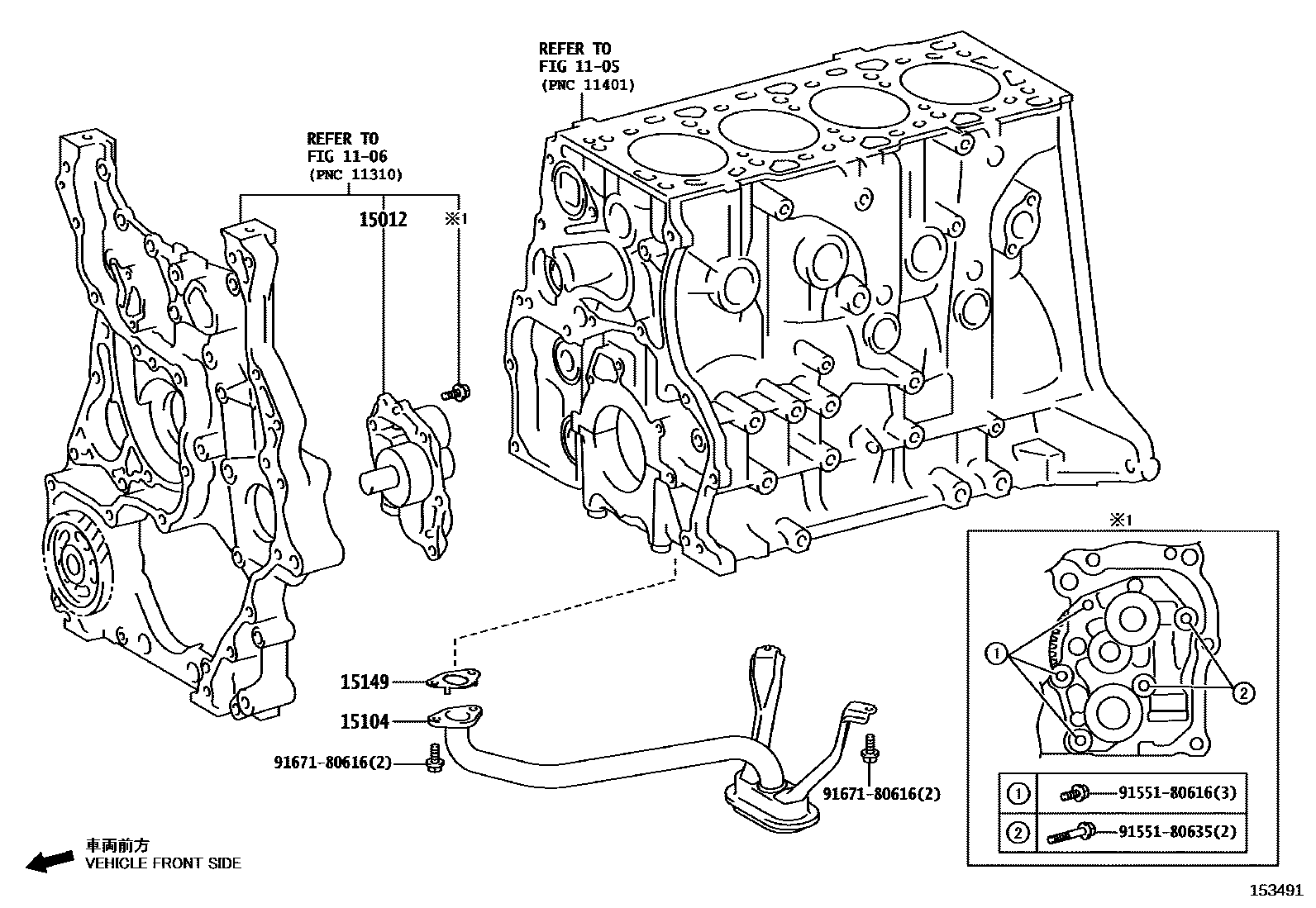

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15012COVER SUB-ASSY, OIL PUMP

main15012-11030i1GDFTV..GDY231..CBU202108-202305

15104STRAINER SUB-ASSY, OIL

main15104-11260i1GDFTV..GDY231..CBU202108-202305

main15104-54240i5L..LY230202202-202503

15149GASKET, OIL STRAINER FLANGE

main15149-11120i1GDFTV..GDY231..CBU202108-202305

9155180616

main91551-80616

9155180635

main91551-80635

9167180616

main91671-80616

8 parts on this diagram · 2 diagrams in section
