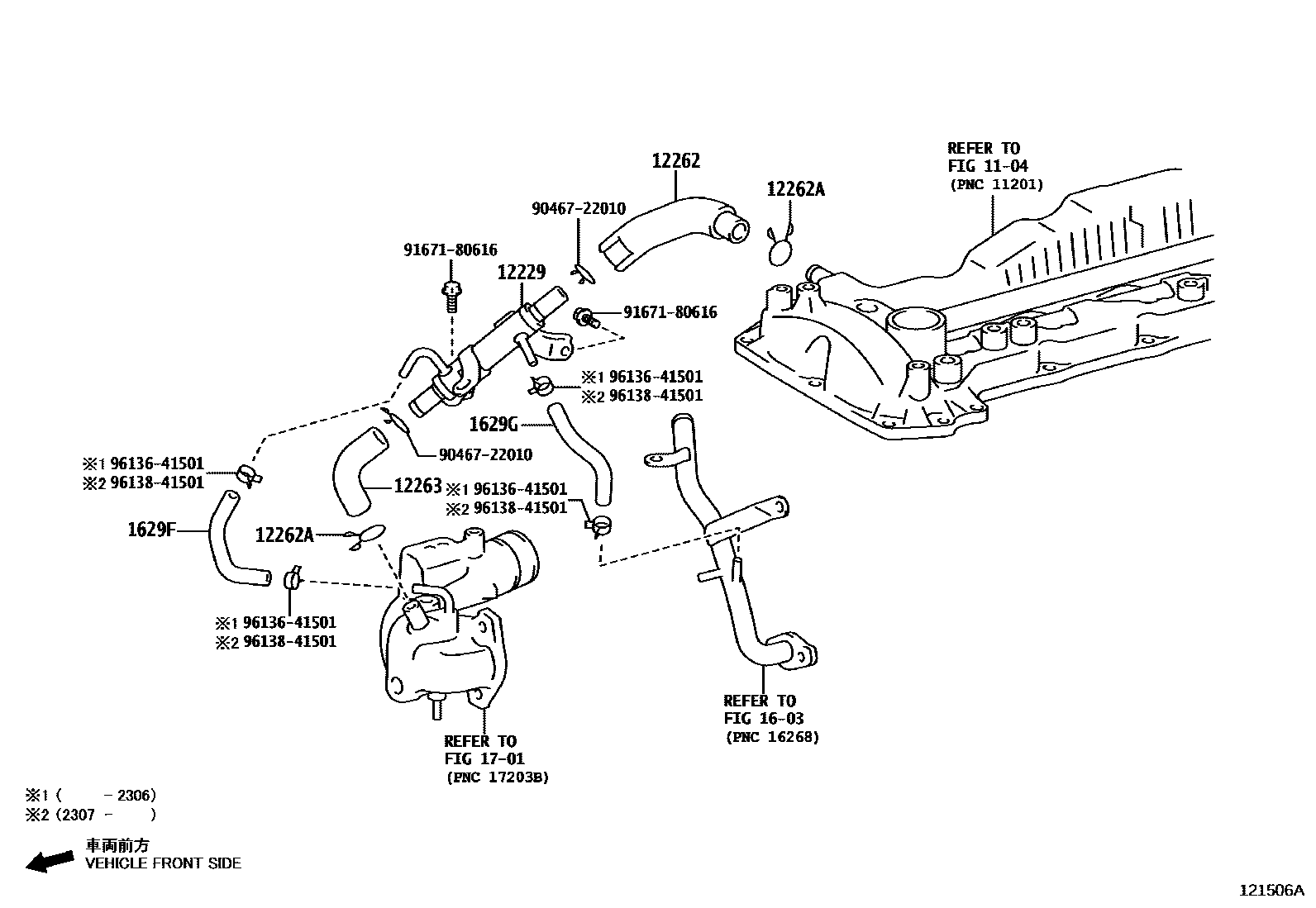

VENTILATION HOSE

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12229PIPE, VENTILATION

main12229-11090i1GDFTV..GDY231..CBU202108-202305

12262HOSE, VENTILATION, NO.2

main12262-11140i1GDFTV..GDY231..CBU202108-202305

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005×2i1GDFTV..GDY231..CBU202108-202305

12263HOSE, VENTILATION, NO.3

main12263-11050i1GDFTV..GDY231..CBU202108-202305

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1629FHOSE, WATER BY-PASS, NO.19

main1629F-11040i1GDFTV..GDY231..CBU202108-202305

1629GHOSE, WATER BY-PASS, NO.20

main1629G-11040i1GDFTV..GDY231..CBU202108-202305

1701MANIFOLD

→ Go to FIG 17-01

9046722010

main90467-22010

9167180616

main91671-80616

9613641501

main96136-41501

9613841501

main96138-41501

13 parts on this diagram · 2 diagrams in section
