TIMING GEAR COVER & REAR END PLATE

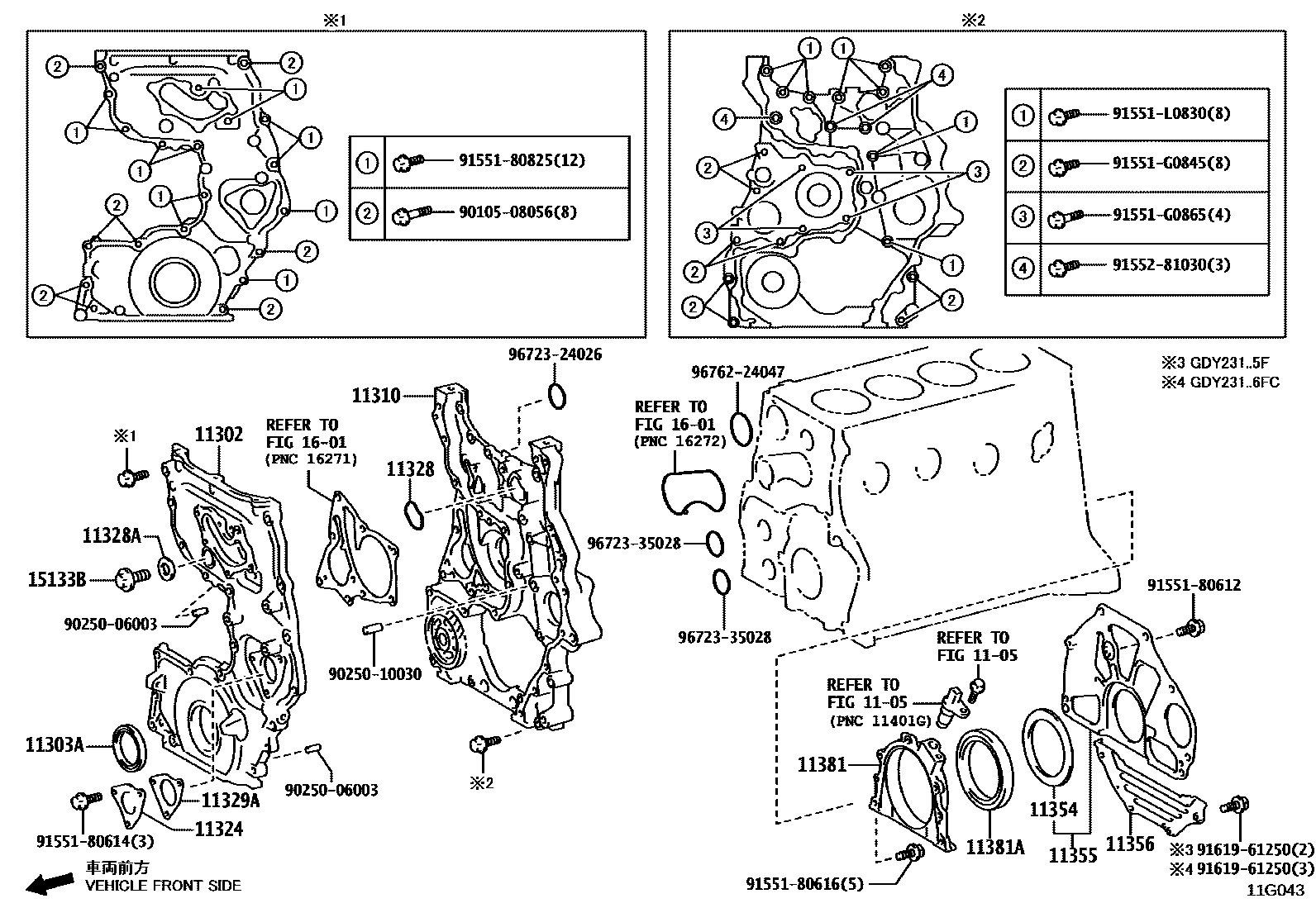

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-11120i202108-202306

main11321-35040i202307-202405

main11321-54021i202202-202503

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-42031i202202-202503

main90311-50051i202108-202405

11310COVER ASSY, TIMING CHAIN

main11310-11031i202108-202405

11324PLATE, TIMING CHAIN COVER

main11324-11010i202108-202405

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i202202-202503

(L)

main11328-11070i202108-202405

main11328-54021i202202-202503

(J)

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i202108-202405

11329GASKET, TIMING GEAR REAR COVER

main11329-54021i202202-202503

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-11020i202108-202405

11354SEAL, FLYWHEEL HOUSING DUST

main11354-30010i202108-202405

main11354-54010i202202-202503

11355PLATE, REAR END

main11355-11040i202108-202305

main11355-11050i202108-202405

main11355-54030i202202-202503

11356PLATE, REAR END, NO.2

main11356-30010i202108-202405

main11356-67021i202108-202305

11381RETAINER, ENGINE REAR OIL SEAL

main11381-11010i202108-202405

main11381-54030i202202-202503

11381ASEAL, ENGINE REAR OIL

main90311-85011i202202-202503

main90311-95015i202108-202405

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i202108-202405

1601WATER PUMP

→ Go to FIG 16-01

9010508056

main90105-08056

9025006003

main90250-06003

9025010030

main90250-10030

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

91551G0845

main91551-G0845

91551G0865

main91551-G0865

91551L0830

main91551-L0830

9155281030

main91552-81030

9161961250

main91619-61250

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

31 parts on this diagram · 2 diagrams in section
