ENGINE OVERHAUL GASKET KIT

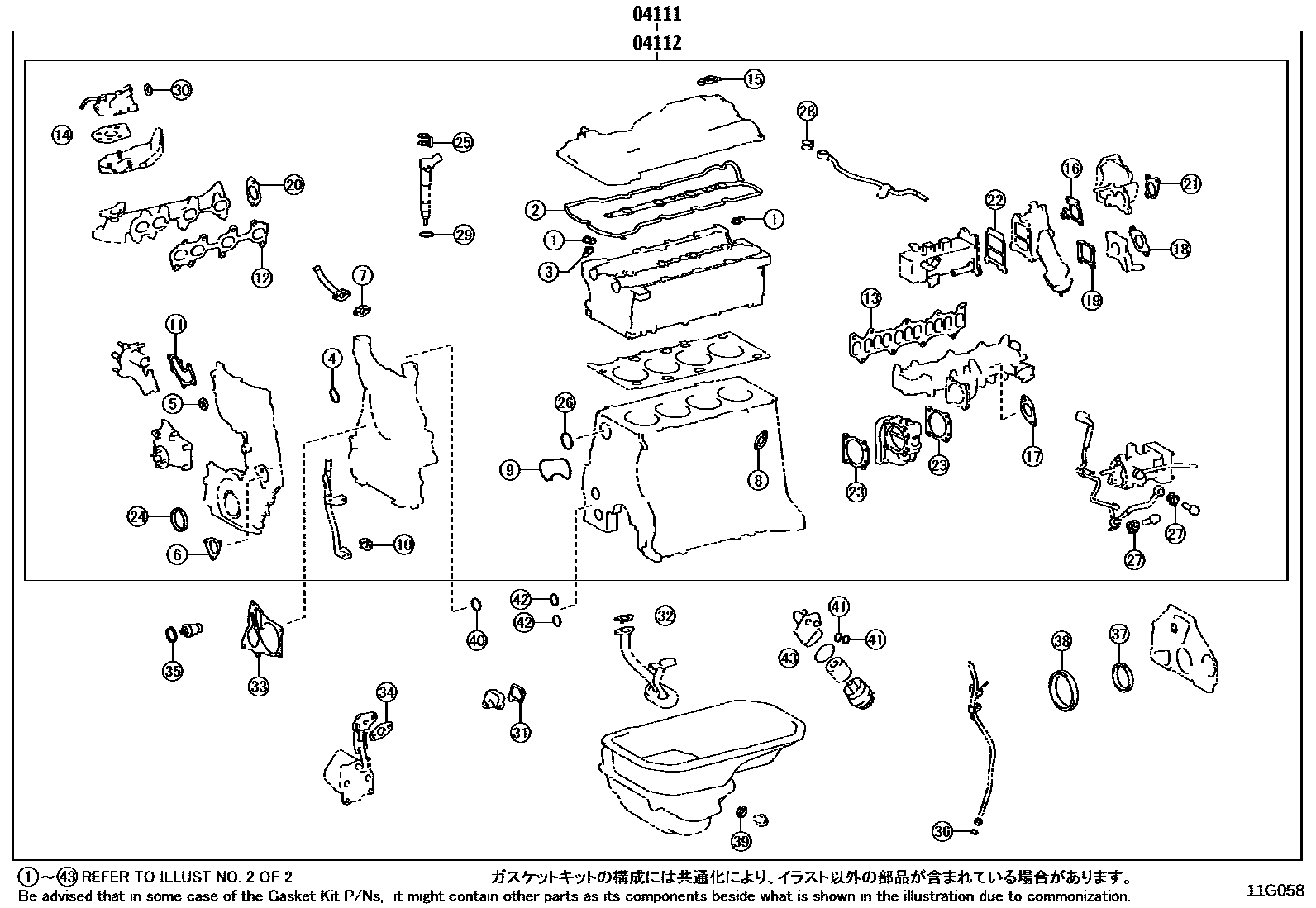

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-11310i202108-202206

main04111-11311i202206-202305

main04111-11370i202202-202405

main04111-11380i202108-202205

main04111-11381i202205-202305

main04111-54450i202202-202503

04112GASKET KIT, ENGINE VALVE GRIND

main04112-11260i202108-202206

main04112-11261i202206-202305

main04112-11320i202202-202405

main04112-11330i202108-202205

main04112-11331i202205-202305

main04112-54390i202202-202503

2 parts on this diagram · 4 diagrams in section
