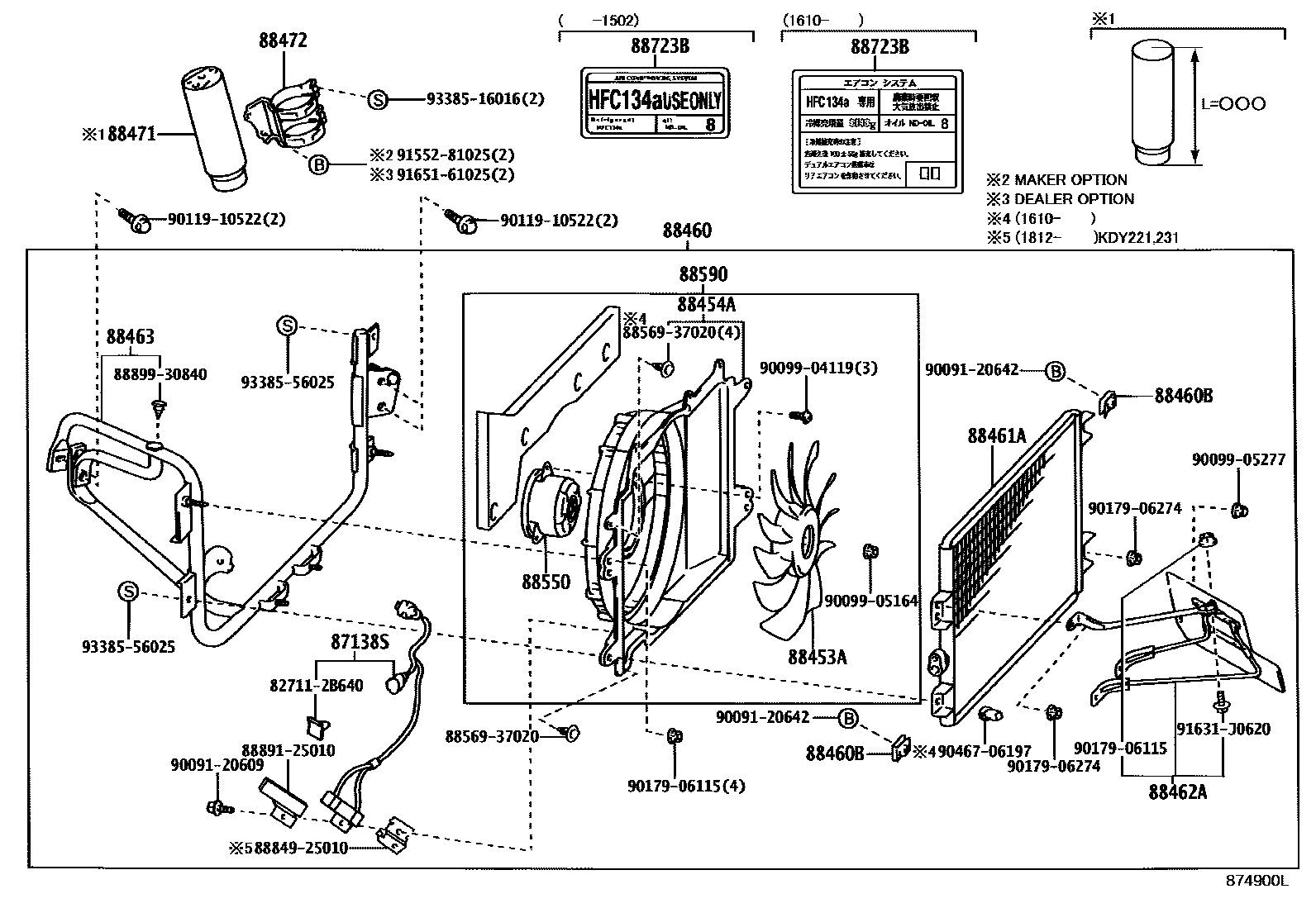

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & RECEIVER 0002 1CONDENSER & RECEIVER 0003 1CONDENSER & RECEIVER 0004 1PIPING 0005 1PIPING 0006 1PIPING 0007 1O-RING

87138SRESISTOR, BLOWER

main87138-25070iKDY220,230,250..RHD200108-201811

main87138-25080iKDY22#,23#,25#,26#..LHD200204-201502

main87138-25090iKDY221,231201812

88453AFAN, COOLING

main88453-37010iLY220,230..ARL200208

88454ASHROUD, FAN

main88454-25060iLY220,230..ARL200208-200610

main88454-25071iKDY221,231201610

88460CONDENSER ASSY, COOLER

main88460-25211iKDY221,231201610-201811

main88460-25212iKDY221,231201812

main88460-25230iKDY220,230,250,260..LHD200108-200204

main88460-25240iLY220,230..ARL200208-201502

88460BBRACKET, COOLER CONDENSER, NO.1

main88463-35120×2iLY220,230..ARL200208

88461ACORE, COOLER CONDENSER

main88461-25050iKDY220,230,250..RHD200108

main88461-25080iKDY220,230,250,260..LHD200204-200308

main88461-37060iKDY220,230,250,260..LHD200308-200609

main88461-37070iKDY221,231,251,261..LHD200609-201502

88462AHOLDER, CONDENSER

main88462-25010iKDY220,230,250,260..LHD200108-200204

main88462-25020iKDY220,230,250..RHD200108

88463BRACKET, COOLER CONDENSER, NO.1

main88463-25041iKDY221,231201610

main88463-25050iKDY220,230,250,260..LHD200108-200204

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iKDY22#,23#,25#,26#..EUR200108

L=187

88472BRACKET, RECEIVER TANK, NO.1

main88472-25090iKDY22#,23#,25#..RHD..EUR200108

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-25050iKDY220,230,250..RHD200108

88590BLOWER ASSY, W/SHROUD

main88590-25070iKDY220,230,250..RHD200108-200610

main88590-25071iKDY221,231201610

main88590-25100iKDY22#,23#,25#,26#..LHD200204-201502

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iKDY22#,23#,25#,26#..EUR200108-201502

main88733-37040iKDY221,231201610

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8856937020CLAMP (FOR COOLER RELAY)

main88569-37020

8884925010BRACKET, COOLER COMPRESSOR, NO.2

main88849-25010

8889125010PACKING (FOR COOLER)

main88891-25010

8889930840COVER, EVAPORATOR

main88899-30840

9009120609

main90091-20609

9009120642

main90091-20642

9009904119

main90099-04119

9009905164

main90099-05164

9009905277

main90099-05277

9011910522

main90119-10522

9017906115

main90179-06115

9017906274

main90179-06274

9046706197

main90467-06197

9155281025

main91552-81025

91631J0620

main91631-J0620

9165161025

main91651-61025

9338516016

main93385-16016

9338556025

main93385-56025

32 parts on this diagram · 7 diagrams in section
