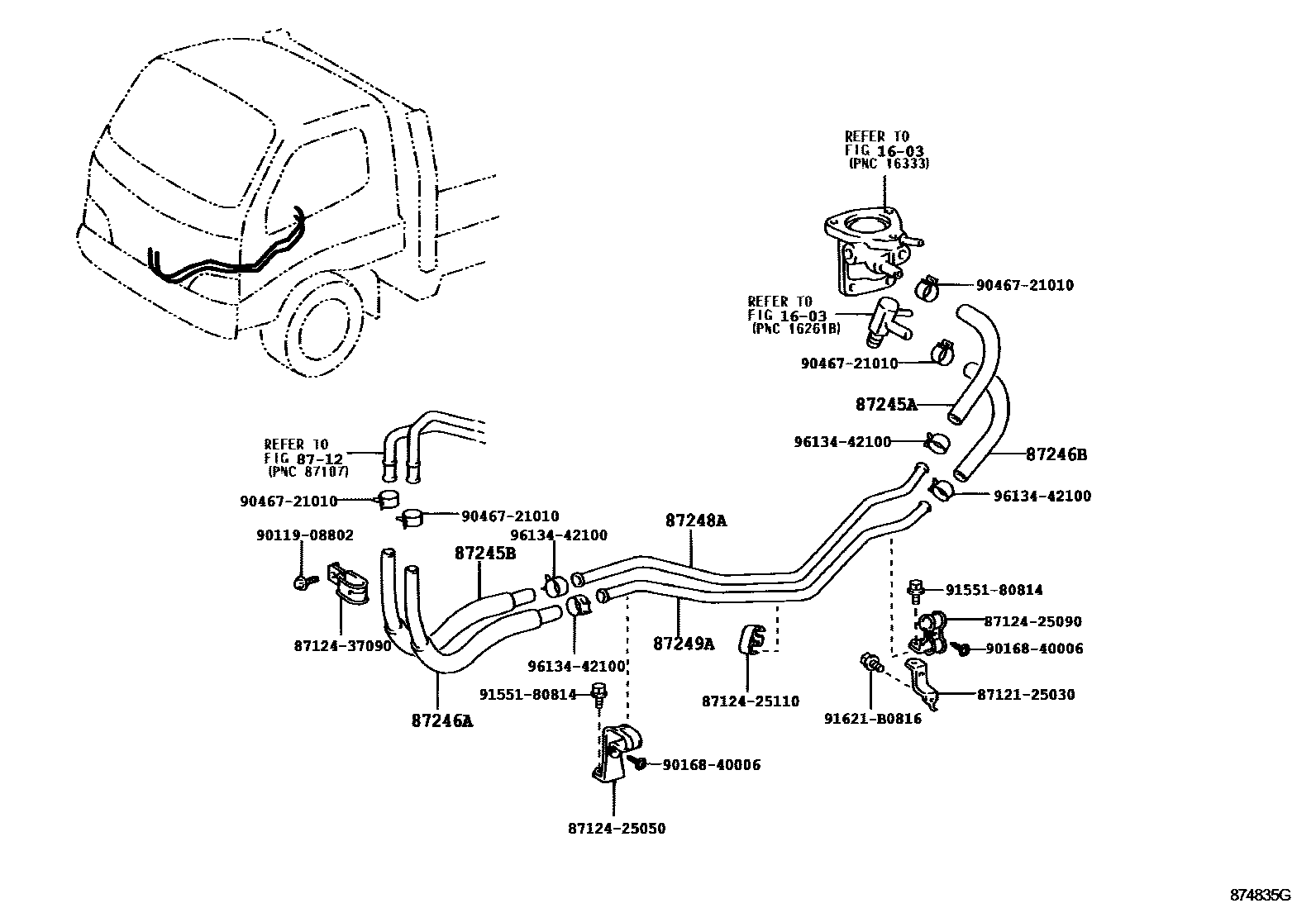

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT..W(REAR HEATER) 0005 1REAR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

87245HOSE, HEATER WATER, INLET

main87245-25550iKDY220,230,250..RHD200108-200610

main87245-25690iKDY220,230,250,260..LHD200108-200609

main87245-25840iKDY221,231201610

main87245-25B60iKDY231,251,261..10T,125T200609-201502

main87245-25B80iKDY221,231,251,261..LHD200609-201502

W(REAR HEATER)

87245AHOSE, HEATER WATER, INLET A

main87245-25560iKDY230,250,260..10T,125T200108-200609

W(REAR HEATER)

main87245-25600iLY225,235..ST200107

main87245-25700iKDY220,230,250,260..LHD200108-200609

main87245-25730iKDY220,230,250..RHD200108-200610

main87245-25B70iKDY221,231,251..RHD..EUR200609-200907

main87245-25B90iKDY221,231,251,261..LHD200609-200906

main87245-25C00iKDY231,251,261..10T,125T200609-200906

W(REAR HEATER)

main87245-25D50iKDY221,231,251..RHD..EUR200907

main87245-25D70iKDY221,231,251,261..LHD200907-201502

main87245-25D80iKDY231,251,261..10T,125T200907-201502

W(REAR HEATER)

main99556-30300iLY220,230200107-202111

*H,L=250

87245BHOSE, HEATER WATER, INLET B

main87245-25450iLY220,230200107-202111

main87245-25590iLY225,235..ST200107

87246AHOSE, HEATER WATER, OUTLET A

main87245-25570iKDY230,250,260..10T,125T200108-200609

W(REAR HEATER)

main87245-25590iLY225,235..ST200107

main87245-25680iLY220,230200107-202111

main87245-25710iKDY220,230,250,260..LHD200108-200609

main87245-25860iKDY221,231201610

main87245-25A80iKDY231,251,261..10T,125T200609-200708

W(REAR HEATER)

main87245-25B10iKDY221,231,251,261..LHD200609-200708

main87245-25D20iKDY221,231,251,261..LHD..IV3200708-201502

W(REAR HEATER)

main87245-25D30iKDY221,231,251,261..LHD200708-201502

87246BHOSE, HEATER WATER, OUTLET B

main87245-25580iKDY230,250,260..10T,125T200108-200609

W(REAR HEATER)

main87245-25610iLY225,235..ST200107

main87245-25720iKDY220,230,250,260..LHD200108-200609

main87245-25740iKDY220,230,250..RHD200108-200610

main87245-25760iKDY250..LHD;KDY220,260..IV3;KDY230..LHD..(10T,15T)..IV3200205-200610

PORTUGAL SPEC

main87245-25A90iKDY231,251,261..10T,125T200609-201502

W(REAR HEATER)

main87245-25B00iKDY221,231,251..RHD..EUR200609

main87245-25B20iKDY221,231,251,261..LHD200609-201502

main87245-25B40iKDY221,251,261..IV3;KDY231..(10T,15T)..IV3; KDY231..125T200609-201502

PORTUGAL SPEC; PORTUGAL SPEC & W(REAR HEATER)

main99556-30300iLY220,230200107-202111

*H,L=220

87248APIPE, HEATER WATER INLET, A

main87248-25050iLY220,230200107-202111

main87248-25130iKDY220,230,250,260200108-200610

main87248-25150iKDY230,250,260..10T,125T200108-200609

W(REAR HEATER)

main87248-25180iLY225,235..ST200107

main87248-25310iKDY221,231201610

main87248-25360iKDY221,231,251,261..LHD200609-201502

main87248-25370iKDY231,251,261..10T,125T200609-201502

W(REAR HEATER)

87249APIPE, HEATER WATER OUTLET, A

main87248-25060iLY220,230200107-202111

main87248-25140iKDY220,230,250,260200108-200610

main87248-25170iKDY230,250,260..10T,125T200108-200609

W(REAR HEATER)

main87248-25190iLY225,235..ST200107

main87248-25300iKDY231,251,261..10T,125T200609-201502

W(REAR HEATER)

main87248-25320iKDY221,231,251,261..EUR200609

8712125030BRACKET, HEATER, FRONT RH

main87121-25030

8712425050CLAMP, HEATER

main87124-25050

8712425090CLAMP, HEATER

main87124-25090

8712425110CLAMP, HEATER

main87124-25110

8712437090CLAMP, HEATER

main87124-37090

9011908802

main90119-08802

9016840006

main90168-40006

9046721010

main90467-21010

9155180814

main91551-80814

91621B0816

main91621-B0816

9613442100

main96134-42100

20 parts on this diagram · 5 diagrams in section
