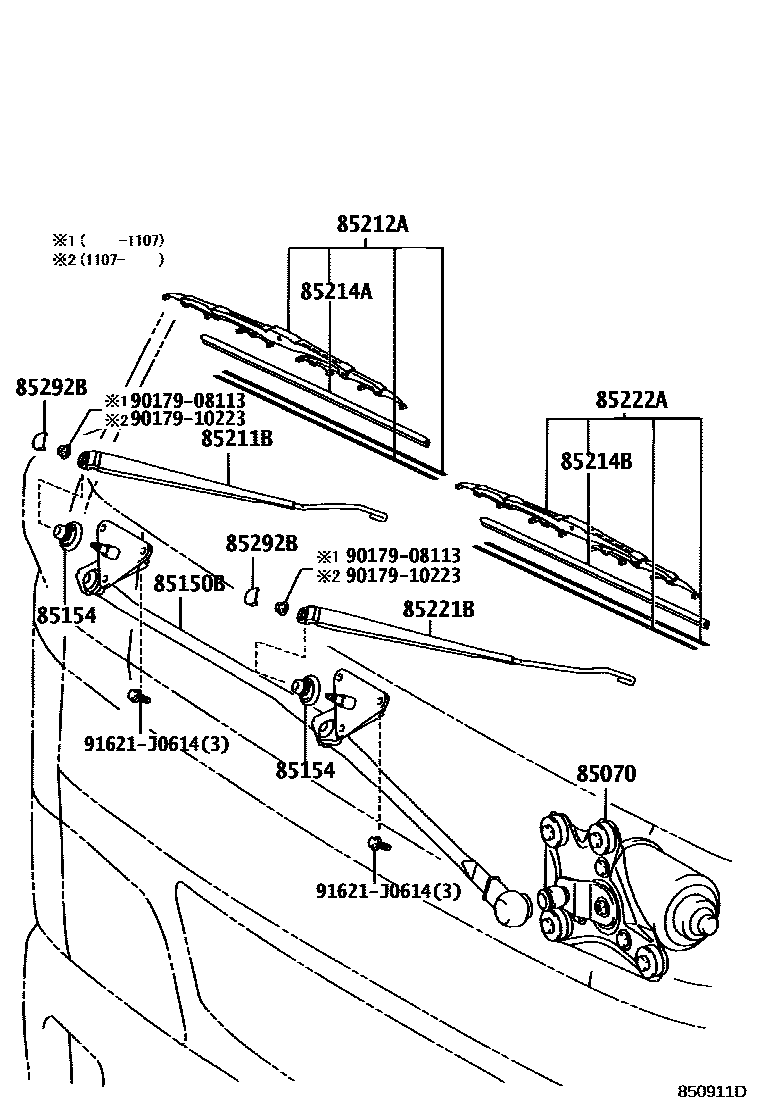

WINDSHIELD WIPER

0001 1 0002 1

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-25030iKDY22#,23#,25#,26#,LY225,235..LHD200107-200807

sub85070-25040

main85070-25040iKDY221,231,251,261,LY225,235..LHD200808-200903

sub85070-37460

main85070-25050iKDY221,231,251..RHD..EUR200808-200903

main85070-25060iKDY221,231,251,LY225,23#..RHD200903-201505

sub85070-25080

main85070-25070iKDY221,231,251,261,LY225,235..LHD200903-201505

sub85070-25100

main85070-25090iKDY221,231,LY225,23#..RHD201505-201610

main85070-25100iLY225,235..LHD201505-201610

main85070-25120iKDY221,231,LY23#..RHD201610-202111

main85070-37190iKDY221,231,251..RHD..EUR200107-200903

main85070-37401iLY235..LHD201610

85150BLINK ASSY, WIPER

main85150-37090iKDY22#,23#,25#,LY22#,23#..RHD200107-201107

main85150-37100iKDY22#,23#,25#,26#,LY225,235..LHD200107-201107

main85150-37150iKDY221,231,251,LY225,23#..RHD201107-202111

main85150-37180iKDY221,231,251,261,LY225,235..LHD201107

85154PACKING, FRONT WIPER SHAFT

main85154-37020iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

DRIVER SIDE

main85154-37020iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

DRIVER

main85154-37030iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

PASSENGER

main85154-37030iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

PASSENGER SIDE

main85154-37030iKDY221,231,LY23#..RHD201610-202111

85211BARM, FRONT WIPER, RH

main85211-37070iKDY22#,23#,25#,LY22#,23#..RHD200107-201107

main85211-37100iKDY22#,23#,25#,26#,LY225,235..LHD200107-201107

main85211-37240iKDY221,231,251,261,LY225,235..LHD201107-202011

sub85211-37241

main85211-37241iLY235..LHD202012

main85211-37250iKDY221,231,251,LY225,23#..RHD201107-202011

sub85211-37251

main85211-37251iKDY221,231,LY23#..RHD202012-202111

85212ABLADE, FR WIPER, RH

main85212-37080iKDY220,230,250,LY22#,23#..RHD200107-200605

sub85212-37081

main85212-37081iKDY22#,23#,25#,LY225,23#..RHD200606-202111

main85212-37090iKDY220,230,250,260,LY225,235..LHD200107-200605

sub85212-37091

main85212-37091iKDY22#,23#,25#,26#,LY225,235..LHD200606

85214ARUBBER, WIPER, RH

main85214-24051iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200606-202111

main85214-42020iKDY220,230,250,260,LY225,235..LHD200107-200606

sub85214-24051

main85214-53050iKDY220,230,250,LY22#,23#..RHD200107-200606

sub85214-24050

85214BRUBBER, WIPER, LH

main85214-24051iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200606-202111

main85214-42020iKDY220,230,250,260,LY225,235..LHD200107-200606

sub85214-24051

main85214-53050iKDY220,230,250,LY22#,23#..RHD200107-200606

sub85214-24050

85221BARM, FRONT WIPER, LH

main85221-37150iKDY22#,23#,25#,LY22#,23#..RHD200107-201107

main85221-37160iKDY22#,23#,25#,26#,LY225,235..LHD200107-201107

main85221-37240iKDY221,231,251,261,LY225,235..LHD201107-202011

sub85221-37241

main85221-37241iLY235..LHD202012

main85221-37250iKDY221,231,251,LY225,23#..RHD201107-202011

sub85221-37251

main85221-37251iKDY221,231,LY23#..RHD202012-202111

85222ABLADE, FR WIPER, LH

main85222-37140iKDY220,230,250,LY22#,23#..RHD200107-200605

sub85222-37141

main85222-37141iKDY22#,23#,25#,LY225,23#..RHD200606-202111

main85222-37150iKDY220,230,250,260,LY225,235..LHD200107-200605

sub85222-37151

main85222-37151iKDY22#,23#,25#,26#,LY225,235..LHD200606

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800iKDY22#,23#,25#,26#,LY22#,23#200204-201107

main85292-13010iKDY221,231,LY23#..RHD..(GEN,SA)201107-202111

main85292-16010iKDY220,230,250,260,LY22#,23#200107-200204

9017908113

main90179-08113

9017910223

main90179-10223

91621J0614

main91621-J0614

13 parts on this diagram · 2 diagrams in section
