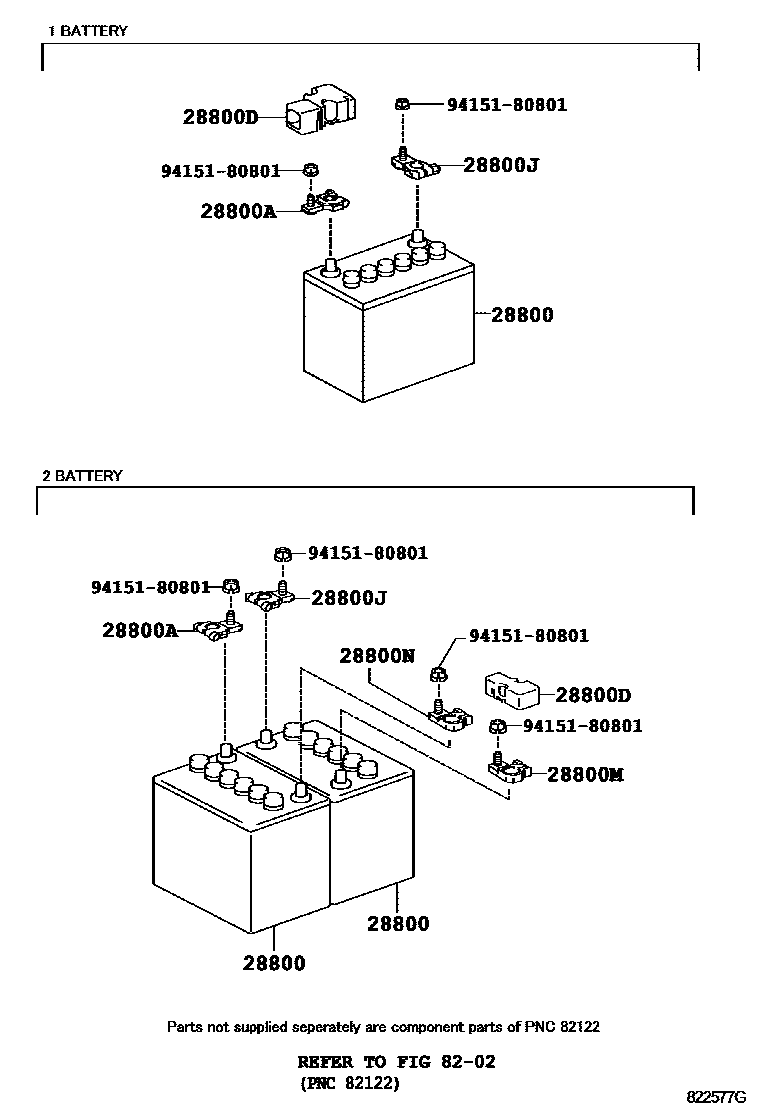

BATTERY & BATTERY CABLE

28800BATTERY

main28800-54020i2KDFTV..KDY220,230,250,260; 2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;2KDFTV..KDY230,260..LHD..(10T,15T)200108-200610

80D26L; 80D26L,2-BATTERY

main28800-54430×2i1KDFTV..KDY221,231,251,261..EUR200609-201204

85D26L,2-BATTERY

main28800-54431×2i1KDFTV..KDY221,231,251,261..EUR201205-201206

85D26L,2-BATTERY

main28800-67080i1KDFTV,5L..KDY221,231,251,261,LY22#,23#200107-201204

105D31L

main28800-67081i1KDFTV,5L..KDY221,231,251,261,LY225,23#201205-201310

105D31L

main28800-67082i1KDFTV,5L..KDY221,231,251,261,LY225,23#201311-202111

105D31L

main28800-67102×2i1KDFTV..KDY221,231,251,261..EUR201206-201502

85D26L,2-BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i2KDFTV..KDY230,250..RHD;2KDFTV..KDY230,260..125T;2KDFTV..KDY220..RHD..CBU200112-200610

W(2 BATTERY)

main90982-05040i1KDFTV..KDY221,231..GEN201310-202107

main90982-05042i5L..LY225,235200706-200707

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071i5L..LY230..SA200107-202111

main82821-37160i5L..LY225,235..ST200107-200303

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i1KDFTV..KDY221,231,251,261..EUR200609-201502

BATTERY=34B19L

main90982-06060i1KDFTV..KDY221,231..GEN200609-201310

28800MTERMINAL, BATTERY POSITIVE

main90982-05050i2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;1KDFTV..KDY221,231,251,261..EUR;2KDFTV..KDY230,260..LHD..(10T,15T)200108-201502

28800NTERMINAL, BATTERY NEGATIVE

main90982-06031i2KDFTV..KDY250..LHD;2KDFTV..KDY220..IV3;2KDFTV..KDY220..LHD..CBU;1KDFTV..KDY221,231,251,261..EUR;2KDFTV..KDY230,260..LHD..(10T,15T)200108-201109

main90982-06060i1KDFTV..KDY221,231,251,261..EUR201109-201502

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
