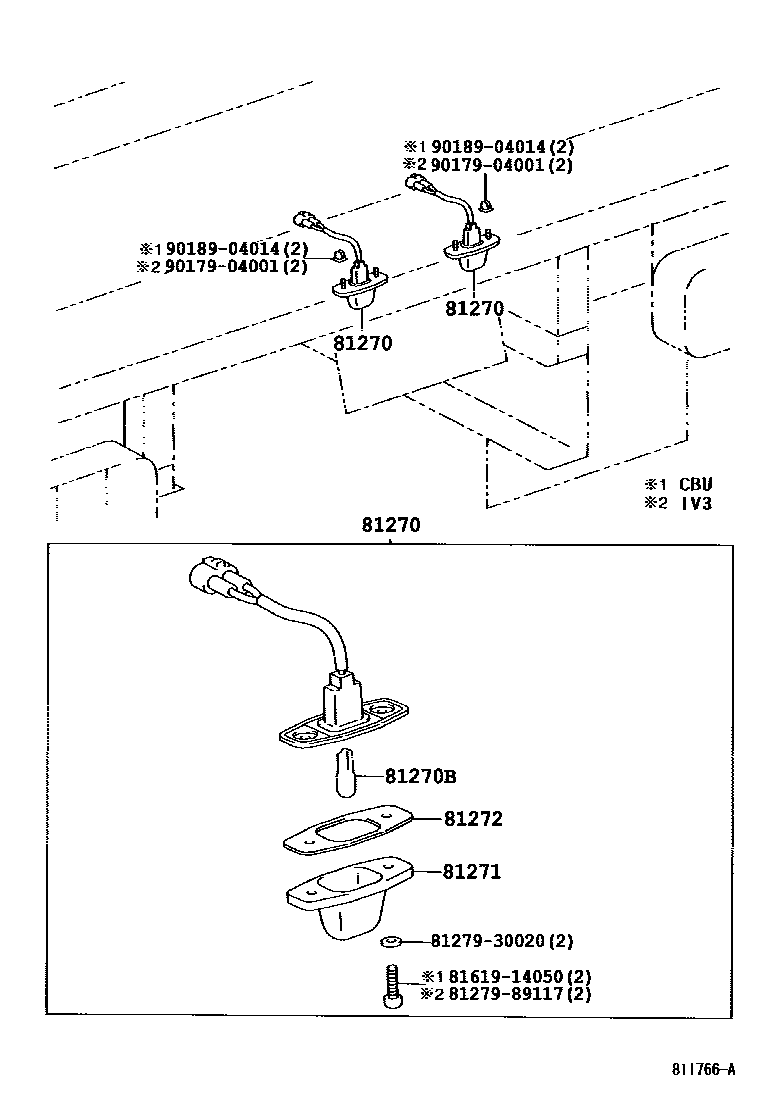

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-25030×2iKDY221,231,LY225,235..GEN..CBU200107-201504

main81270-25031×2iKDY221,231,LY225,235..CBU201505-201908

main81270-25032×2iKDY221,231,LY235..CBU201909-202004

main81270-25033×2iKDY221,231,LY235..CBU202005

main81270-25040×2iKDY22#,23#..EUR..CBU200108-201502

main81270-25050×2iKDY22#,23#,25#,26#,LY220,230..IV3200107-202111

main81270-25070×2iLY235..IV3201909-202004

main81270-25071×2iLY235..IV3202005

main81270-95014×2iLY225,235..IV3200107-201908

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-202111

12V 10W

main99132-12050×2iKDY221,231,LY225,235..GEN200107

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-25030×2iKDY221,231,LY235201909-202005

main81271-25031×2iKDY221,231,LY235202005

main81271-25040×2iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-202111

main81271-89110×2iKDY221,231,LY225,235..GEN200107-201909

81272GASKET, LICENSE PLATE LAMP LENS

main81272-37020×2iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-202111

main81272-89110×2iKDY221,231,LY225,235..GEN200107

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8127989117WASHER, SIDE TURN SIGNAL LAMP

main81279-89117

8161914050

main81619-14050

9017904001

main90179-04001

9018904014

main90189-04014

9 parts on this diagram · 2 diagrams in section
