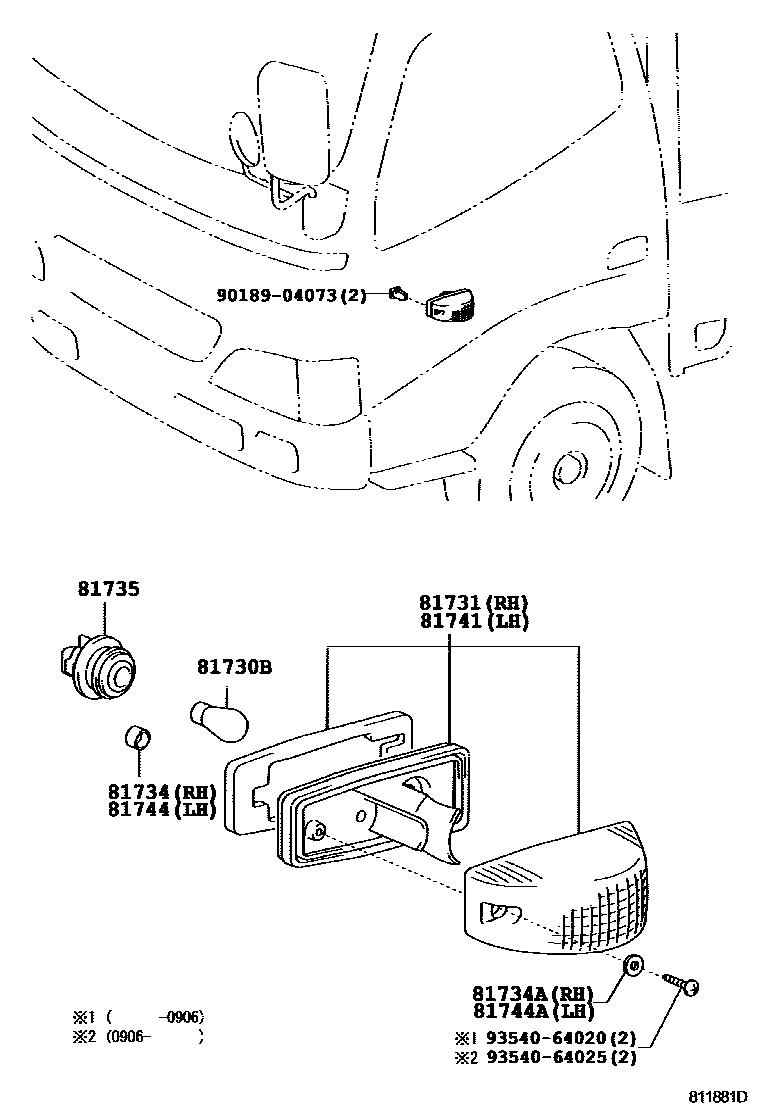

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-11210×2iKDY251,26#200108-201502

12V 21W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-25040iKDY251,26#200108-201502

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81734-25040iKDY251,26#200108-201502

81734APROTECTOR, SIDE TURN SIGNAL LAMP, RH

main81738-25040iKDY251,26#200108-201502

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81515-12520×2iKDY251,26#200108-201502

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-25040iKDY251,26#200108-201502

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81734-25040iKDY251,26#200108-201502

81744APROTECTOR, SIDE TURN SIGNAL LAMP, LH

main81738-25040iKDY251,26#200108-201502

9018904073

main90189-04073

9354064020

main93540-64020

9354064025

main93540-64025

11 parts on this diagram · 1 diagram in section
