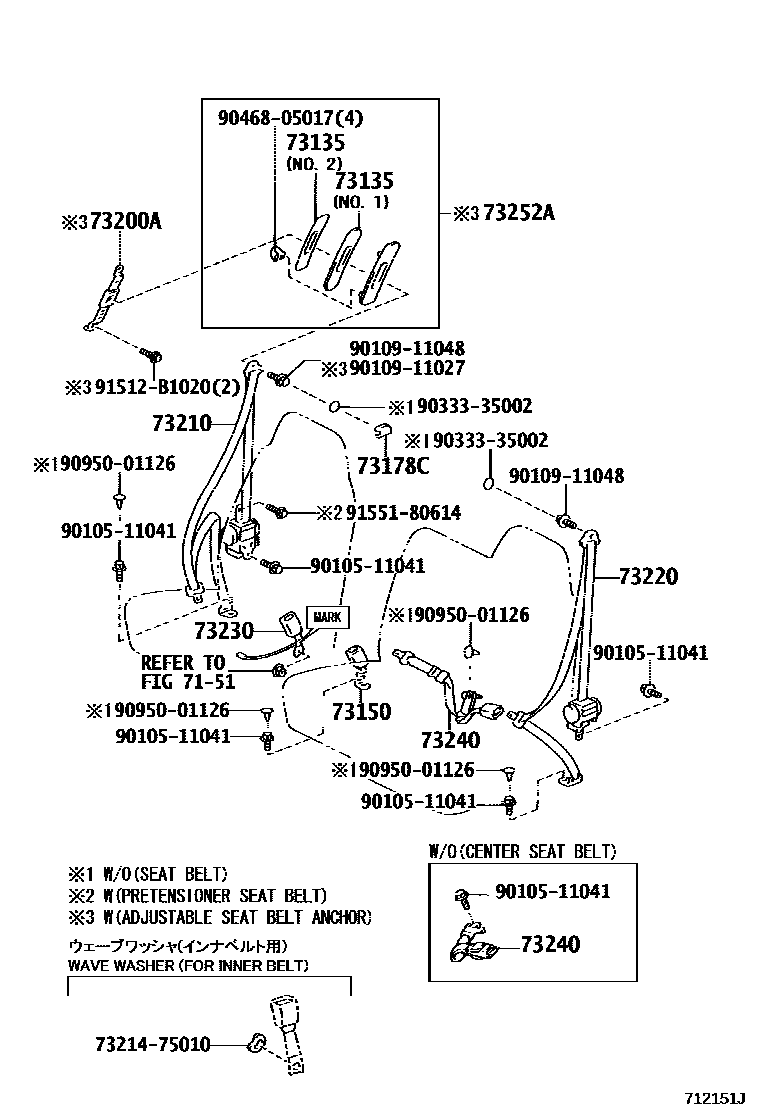

SEAT BELT

0001 1 0002 1 0003 1NON-RETRACTOR TYPE SEAT BELT 0004 1NON-RETRACTOR TYPE SEAT BELT 0005 1REAR

7151SEAT & SEAT TRACK

→ Go to FIG 71-51

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-35010-B1iKDY22#,23#,25#,26#..EUR200108-201502

MD.CHARCOAL,TRIM1#,NO.1

main73135-35020-B1iKDY22#,23#,25#,26#..EUR200108-201502

MD.CHARCOAL,TRIM1#,NO.2

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37050-B0iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR200107-201505

DK.CHARCOAL,TRIM1#

main73150-37050-B3iKDY221,231,LY225,235201505-201803

GRAY,TRIM1#

main73150-37070-B0iKDY221,231..GEN200806-200908

GRAY,TRIM1#

main73150-37070-B1iKDY221,231..GEN200908-201206

GRAY,TRIM1#

main73150-37160-B0iLY23#..RHD201803-202111

GRAY,TRIM1#

73178CCAP, SEAT BELT ANCHOR COVER

main73178-33020-B1iKDY22#,23#,25#,26#..EUR200108-201502

MD.CHARCOAL,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030iKDY22#,23#,25#,26#..EUR200108-201502

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-25060-B0iKDY221,231..GEN200107-200901

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B0iLY225,235200902-200908

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B1iLY225,235200908-201505

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B2iLY225,235201505-201610

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-37130-B0iLY225,235..RHD200107-200308

GRAY,TRIM1#

main73210-37160-B0iKDY220,230,250..RHD200108-200408

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37170-B0iLY230..ARL;LY225,235..LHD;KDY230,250,260,LY220..10T,125T200107-200408

GRAY,TRIM1#

main73210-37180-B0iKDY220,230,250..RHD200108-200408

W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#

main73210-37210-B0iLY225,235..RHD..ST200308-200908

GRAY,TRIM1#

main73210-37210-B1iLY225,235..RHD200908-201206

GRAY,TRIM1#

main73210-37240-B0iKDY22#,23#,25#..RHD..EUR200409-200908

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37240-B1iKDY221,231,251..RHD..EUR200908-201206

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37250-B0iLY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T200409-200712

GRAY,TRIM1#

main73210-37251-B0iKDY221,231..GEN200801-200908

GRAY,TRIM1#

main73210-37251-B1iKDY221,231..GEN;KDY221,231,251,261,LY225,235..LHD200908-201206

GRAY,TRIM1#

main73210-37260-B0iKDY22#,23#,25#..RHD..EUR200409-200908

W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#

main73210-37260-B1iKDY221,231,251..RHD..EUR200908-201206

W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#

main73210-37290-B2iKDY221,231,251..RHD..EUR201206-201302

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37291-B2iKDY221,231,251..RHD..EUR201303-201502

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37300-B2iKDY221,231,251,261..LHD;KDY221,231,LY225,235..GEN201206-201504

GRAY,TRIM1#

main73210-37311-B1iKDY221,231201610-201803

GRAY,TRIM1#

main73210-37320-B2iKDY221,231,251..RHD..EUR201206-201502

GRAY,TRIM1#

main73210-37411-B0iLY23#201610-201803

GRAY,TRIM1#

main73210-37411-B1iKDY221,231,LY225,235201505-201610

GRAY,TRIM1#

main73210-37530-B0iLY23#..RHD201803-202111

GRAY,TRIM1#

main73210-37550-B0iKDY221,231201803

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-25060-B0iKDY221,231..GEN200107-200901

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B0iLY225,235200902-200908

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B1iLY225,235200908-201505

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B2iLY225,235201505-201610

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-37130-B0iLY225,235..RHD200107-200308

GRAY,TRIM1#

main73210-37160-B0iKDY230..CBU;KDY230..125T200108-200408

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37160-B0iKDY220..LHD;KDY230,250,260..LHD..15T200108-200408

PORTUGAL CKD & W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37170-B0iKDY220,230,250..RHD200107-200408

GRAY,TRIM1#

main73210-37180-B0iKDY220..LHD;KDY230,250,260..LHD..15T200108-200408

W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#

main73210-37210-B0iKDY221,231..GEN200308-200908

GRAY,TRIM1#

main73210-37210-B1iLY225,235..RHD200908-201206

GRAY,TRIM1#

main73210-37240-B0iKDY231..ST;KDY230,250,260..10T,125T200409-200908

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37240-B1iKDY221,231,251,261..LHD200908-201206

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37250-B0iKDY221,231,251..RHD..EUR200409-200712

GRAY,TRIM1#

main73210-37251-B0iKDY221,231..GEN200801-200908

GRAY,TRIM1#

main73210-37251-B1iLY225,235..LHD;KDY221,231,251..RHD200908-201206

GRAY,TRIM1#

main73210-37260-B0iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200409-200908

W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#

main73210-37260-B1iKDY221,231,251,261..LHD200908-201206

W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#

main73210-37290-B2iKDY221,231,251,261..LHD201206-201302

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37291-B2iKDY221,231,251,261..LHD201303-201502

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

main73210-37300-B2iLY225,235;KDY221,231,251..RHD201206-201504

GRAY,TRIM1#

main73210-37311-B1iKDY221,231201610-201803

GRAY,TRIM1#

main73210-37320-B2iKDY221,231,251,261..LHD201206-201502

GRAY,TRIM1#

main73210-37411-B0iLY23#201610-201803

GRAY,TRIM1#

main73210-37411-B1iKDY221,231,LY225,235201505-201610

GRAY,TRIM1#

main73210-37530-B0iLY23#..RHD201803-202111

GRAY,TRIM1#

main73210-37550-B0iKDY221,231201803

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-25030-B0iKDY22#,23#,25#,26#,LY225,235..LHD200107-200901

GRAY,TRIM1#

main73230-25031-B0iKDY221,231,251,261,LY225,235..LHD200902-200908

GRAY,TRIM1#

main73230-25031-B3iKDY221,231,251,261,LY225,235..LHD200908-201206

GRAY,TRIM1#

main73230-37110-B0iKDY22#,23#,25#,LY22#,23#..RHD..(ARL,EUR,GEN)200107-200709

DK.CHARCOAL,TRIM1#

main73230-37220-B0iKDY221,231,251,LY225,235..RHD200709-201505

MARK = R,DK.CHARCOAL,TRIM1#

main73230-37220-B1iKDY221,231,LY225,235..RHD201505-201610

GRAY,TRIM1#

main73230-37230-B1iKDY221,231,LY23#..RHD201610-201803

GRAY,TRIM1#

main73230-37340-B1iKDY221,231,251,261,LY225,235..LHD201206-201504

GRAY,TRIM1#

main73230-37361-B0iLY235..LHD201610-201803

GRAY,TRIM1#

main73230-37361-B1iLY225,235..LHD201505-201610

GRAY,TRIM1#

main73230-37420-B0iLY235..LHD201803

GRAY,TRIM1#

main73230-37470-B0iKDY221,231201803-202111

GRAY,TRIM1#

main73240-25070-B0iLY225,235..LHD201206-201505

W/O(CENTER SEAT BELT),GRAY,TRIM1#

main73240-25070-B2iLY225,235..LHD201505-201610

W/O(CENTER SEAT BELT),GRAY,TRIM1#

main73240-37180-B1iLY225,235..LHD200107-200908

W/O(CENTER SEAT BELT),GRAY,TRIM1#

main73240-37180-B5iLY225,235..LHD200908-201206

W/O(CENTER SEAT BELT),GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-25030-B0iKDY22#,23#,25#,LY220,230..RHD..(ARL,EUR)200107-200901

GRAY,TRIM1#

main73230-25031-B0iKDY221,231,251..RHD..EUR200902-200908

GRAY,TRIM1#

main73230-25031-B3iKDY221,231,251..RHD..EUR200908-201206

GRAY,TRIM1#

main73230-37110-B0iKDY22#,23#,25#,26#,LY225,235..LHD200107-200709

DK.CHARCOAL,TRIM1#

main73230-37140-B0iLY225,235..RHD..ST200107-200901

GRAY,TRIM1#

main73230-37141-B1iLY225,235..RHD200902-200908

GRAY,TRIM1#

main73230-37141-B2iLY225,235..RHD200908-201206

GRAY,TRIM1#

main73230-37200-B1iLY235..LHD201610-201803

GRAY,TRIM1#

main73230-37210-B0iKDY221,231,251,261,LY225,235..LHD200709-201505

MARK = L,DK.CHARCOAL,TRIM1#

main73230-37210-B1iLY225,235..LHD201505-201610

GRAY,TRIM1#

main73230-37340-B1iKDY221,231,251,LY225,235..RHD201206-201504

GRAY,TRIM1#

main73230-37361-B0iLY23#..RHD201610-201803

GRAY,TRIM1#

main73230-37361-B1iKDY221,231,LY225,235..RHD201505-201610

GRAY,TRIM1#

main73230-37420-B0iLY23#..RHD201803-202111

GRAY,TRIM1#

main73230-37480-B0iLY235..LHD201803

GRAY,TRIM1#

main73240-25040-B2iKDY221,231201610-201803

GRAY,TRIM1#

main73240-25060-B0iKDY221,231201803

GRAY,TRIM1#

main73240-25070-B0iLY225,235..RHD201206-201505

W/O(CENTER SEAT BELT),GRAY,TRIM1#

main73240-25070-B2iLY225,235..RHD201505-201610

W/O(CENTER SEAT BELT),GRAY,TRIM1#

main73240-37160-B1iKDY221,231..GEN200806-200901

GRAY,TRIM1#

main73240-37161-B1iKDY221,231..GEN200902-200908

GRAY,TRIM1#

main73240-37161-B3iKDY221,231..GEN200908-201206

GRAY,TRIM1#

main73240-37180-B1iLY225,235..RHD200107-200908

W/O(CENTER SEAT BELT),GRAY,TRIM1#

main73240-37180-B5iLY225,235..RHD200908-201206

W/O(CENTER SEAT BELT),GRAY,TRIM1#

73252ACOVER, SHOULDER BELT ANCHOR ADJUST

main73252-25010-B0iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-200909

MD.CHARCOAL,TRIM1#

main73252-25011-B0iKDY221..LHD;KDY231,251,261..LHD..15T200909-201502

MD.CHARCOAL,TRIM1#

main73252-37010-B0iKDY22#,23#,25#..RHD..EUR200108-200909

MD.CHARCOAL,TRIM1#

main73252-37011-B0iKDY221,231,251..RHD..EUR200909-201502

MD.CHARCOAL,TRIM1#

main73252-37020-B0iKDY23#,25#,26#..10T,125T200108-200910

MD.CHARCOAL,TRIM1#

main73252-37021-B0iKDY231,251,261..10T,125T200910-201502

MD.CHARCOAL,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511041

main90105-11041

9010911027

main90109-11027

9010911048

main90109-11048

9033335002

main90333-35002

9046805017

main90468-05017

9095001126

main90950-01126

91512B1020

main91512-B1020

9155180614

main91551-80614

19 parts on this diagram · 5 diagrams in section
