E
EPC Data

SEAT & SEAT TRACK

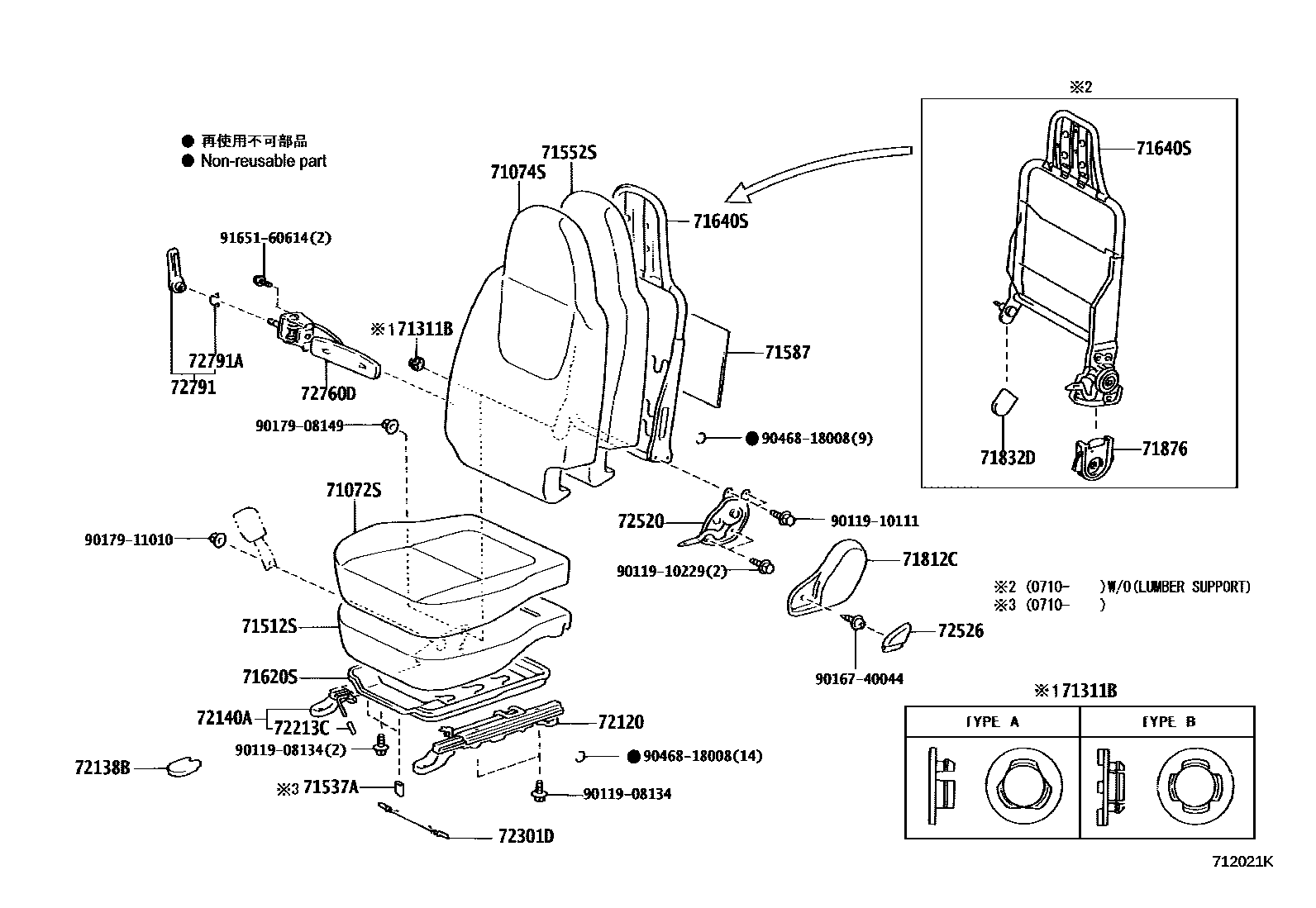

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-25090-B1i200107-200308
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25100-B1i200108-200308
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25110-B2i200107-200308
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25130-B2i200107-200308
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25150-B0i200308-200408
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25170-B0i200107-200308
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25180-B0i200308-200708
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25200-B0i200312-200408
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25230-B0i200308-200408
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25240-B0i200308-200708
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25260-B1i200408-200708
SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71072-25270-B1i200408-200708
SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71072-25290-B1i200408-200708
SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71072-25330-B0i200709-201206
FABRIC SEAT,MD. CHARCOAL,TRIM1#
main71072-25340-B0i200709-201206
VINYL LEATHER SEAT,MEDIUM CHARCOAL,TRIM1#
main71072-25350-B0i201206-201211
SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1#
main71072-25351-B0i201212-201505
SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1#
main71072-25360-B0i201206-201211
SEAT=TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25361-B0i201211-201505
SEAT=TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25410-B0i201206-201505
SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1#
main71072-25420-B0i201206-201505
SEAT=TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-25440-B0i201505-201610
FABRIC SEAT,GRAY,TRIM1#
main71072-25440-B1i201610-201702
FABRIC SEAT,GRAY,TRIM1#
main71072-25450-B0i201505-201610
VINYL LEATHER SEAT,GRAY,TRIM1#
main71072-25450-B1i201610-201702
VINYL LEATHER SEAT,GRAY,TRIM1#
main71072-25490-B0i201702
FABRIC SEAT,GRAY,TRIM1#
main71072-25500-B0i201702
VINYL LEATHER SEAT,GRAY,TRIM1#
main71072-37790-B1i200208-200308
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-37A90-B0i200711-201206
FABRIC SEAT & W(LUMBER SUPPORT),MD. CHARCOAL,TRIM1#
main71072-37A90-B1i201206-201502
FABRIC SEAT & W(LUMBER SUPPORT),MD. CHARCOAL,TRIM1#
main71072-37B01-B0i201610-202111
FABRIC SEAT,GRAY,TRIM1#
main71072-37B01-B1i201505-201610
FABRIC SEAT,GRAY,TRIM1#
main71072-37B41-B0i201610-202111
VINYL LEATHER SEAT,GRAY,TRIM1#
main71072-37B41-B1i201505-201610
VINYL LEATHER SEAT,GRAY,TRIM1#
main71072-37D30-B0i201610
FABRIC SEAT,GRAY,TRIM1#
main71072-37D30-B1i201505-201610
FABRIC SEAT,GRAY,TRIM1#
main71072-37D40-B0i201505
VINYL LEATHER SEAT,GRAY,TRIM1#
main71072-3V070-B0i200709-201206
VINYL LEATHER SEAT,MEDIUM CHARCOAL,TRIM1#
main71072-3V260-B0i200308-200510
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71072-3V260-B1i200510-200708
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12
main71072-3V450-B0i200709-201206
FABRIC SEAT,MD. CHARCOAL,TRIM1#
main71072-3V450-B1i201206-201505
FABRIC SEAT,MD. CHARCOAL,TRIM1#
main71072-3V470-B0i200709-201206
VINYL LEATHER SEAT,MEDIUM CHARCOAL,TRIM1#
main71072-3V470-B1i201206-201505
VINYL LEATHER SEAT,MEDIUM CHARCOAL,TRIM1#
main71072-3V500-B0i200711-201206
FABRIC SEAT,MD. CHARCOAL,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main70169-37050-B1i200709-201206
VINYL LEATHER SEAT & W(SEAT BACK CONSOLE),MEDIUM CHARCOAL,TRIM1#
main70169-37050-B2i201206-201505
MEDIUM CHARCOAL,TRIM1#
main70169-37210-B0i200308-200510
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main70169-37210-B1i200510-200708
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12
main70169-37240-B0i200308-200510
W(SEAT BACK CONSOLE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main70169-37240-B1i200510-200609
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12
main70169-37350-B0i200711-201206
MD. CHARCOAL,TRIM1#
main70169-37350-B1i201206-201502
MD. CHARCOAL,TRIM1#
main70169-37390-B0i200709-201206
MD. CHARCOAL,TRIM1#
main70169-37390-B2i201206-201505
SEAT=TYPE A-*104,MD. CHARCOAL,TRIM1#
main70169-37400-B0i200709-201206
MEDIUM CHARCOAL,TRIM1#
main70169-37400-B2i201206-201505
SEAT=TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main70169-37420-B0i200711-201206
FABRIC SEAT & W(SEAT BACK CONSOLE),MD. CHARCOAL,TRIM1#
main70169-37420-B2i201206-201505
W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MD. CHARCOAL,TRIM1#
main70169-37430-B0i200711-201206
FABRIC SEAT & W(LUMBER SUPPORT),MD. CHARCOAL,TRIM1#
main70169-37430-B1i201206-201502
FABRIC SEAT & W(LUMBER SUPPORT),MD. CHARCOAL,TRIM1#
main71074-25100-B0i200108-200308
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25110-B1i200107-200308
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25120-B0i200107-200308
W(PASSENGER SEAT BENCH TYPE) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25170-B0i200108-200308
W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25190-B0i200107-200308
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25220-B0i200312-200408
W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25240-B0i200312-200408
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25260-B0i200308-200408
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25270-B0i200308-200408
SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25280-B0i200308-200708
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25290-B1i200408-200708
SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71074-25300-B1i200408-200708
SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71074-25330-B1i200408-200510
W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71074-25330-B2i200510-200708
W(SEAT BACK CONSOLE) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#
main71074-25350-B1i200408-200708
SEAT = TYPE A-*104,MEDIUM CHA,TRIM1#
main71074-25380-B0i200711-201206
FABRIC SEAT & W(LUMBER SUPPORT),MD. CHARCOAL,TRIM1#
main71074-25380-B1i201206-201502
FABRIC SEAT & W(LUMBER SUPPORT),MD. CHARCOAL,TRIM1#
main71074-25390-B0i200709-201206
FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),MD. CHARCOAL,TRIM1#
main71074-25390-B1i201206-201505
FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),MD. CHARCOAL,TRIM1#
main71074-25400-B0i200709-201206
VINYL LEATHER SEAT,MEDIUM CHARCOAL,TRIM1#
main71074-25400-B1i201206-201505
VINYL LEATHER SEAT,MEDIUM CHARCOAL,TRIM1#
main71074-25530-B0i201505-201610
FABRIC SEAT,GRAY,TRIM1#
main71074-25540-B0i201505-201610
VINYL LEATHER SEAT,GRAY,TRIM1#
main71074-37810-B4i200107-200308
W(PASSENGER SEAT BENCH TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub70169-37060
main71074-37850-B4i200107-200308
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71074-37A60-B0i201610-202002
FABRIC SEAT,GRAY,TRIM1#
main71074-37A60-B1i201505-201610
FABRIC SEAT,GRAY,TRIM1#
main71074-37A61-B0i202003
FABRIC SEAT,GRAY,TRIM1#
main71074-37A80-B0i201610-202002
VINYL LEATHER SEAT,GRAY,TRIM1#
main71074-37A80-B1i201505-201610
VINYL LEATHER SEAT,GRAY,TRIM1#
main71074-37A81-B0i202003
VINYL LEATHER SEAT,GRAY,TRIM1#
main71074-37A90-B0i201610-202002
FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),GRAY,TRIM1#
main71074-37A90-B1i201505-201610
FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),GRAY,TRIM1#
main71074-37A91-B0i202003
FABRIC SEAT & W(PASSENGER SEAT BENCH TYPE),GRAY,TRIM1#
main71074-37B10-B0i201610-202002
VINYL LEATHER SEAT & W(PASSENGER SEAT BENCH TYPE),GRAY,TRIM1#
main71074-37B10-B1i201505-201610
VINYL LEATHER SEAT & W(PASSENGER SEAT BENCH TYPE),GRAY,TRIM1#
main71074-37B11-B0i202003
VINYL LEATHER SEAT & W(PASSENGER SEAT BENCH TYPE),GRAY,TRIM1#
main71074-37C30-B0i201610
FABRIC SEAT,GRAY,TRIM1#
main71074-37C40-B0i201610
VINYL LEATHER SEAT,GRAY,TRIM1#
71311BBUSH (FOR FRONT SEAT HINGE PIN)
main90386-12051i200107-200308
TYPE A:REFER TO ILLUSTRATION
main90386-12053i200107-200708
TYPE B:REFER ILLUST.
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-25041i201610
main71502-25020i200107-200708
main71502-25050i200709-201206
main71502-25060i201206-201211
main71502-25061i201212-201610
main71502-25090i201206-201702
main71502-25100i201702
main71502-37160i200108-200708
main71502-37220i200709-201206
main71511-37080i200108-201502
W(LUMBAR SUPPORT)
main71511-37120i200709
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010×2i200709-202111
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-25030i200108-200708
main71552-25060i200711-201502
W(LUMBAR SUPPORT)
main71552-25070i200709
main71552-25080i200711-201502
main71552-25090i201206
W(SEAT BACK CONSOLE)
main71552-37090i200107-200708
W(PASSENGER SEAT BENCH TYPE)
sub71552-25100
main71552-37100i200107-200708
W(SEAT BACK CONSOLE)
main71552-37140i200107-200708
main71552-37150i200711-201502
W(LUMBAR SUPPORT)
main71552-37170i200709-202111
W(PASSENGER SEAT BENCH TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-37020i200709-201209
main71587-37021i201210-202106
main71587-37022i202107-202111
main71587-37030i200107-200708
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-37010i200504-200708
main71620-37020i200107-200503
main71620-37030i200709-201505
main71620-37031i201505
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71014-25040i201206-202002
W(PASSENGER SEAT BENCH TYPE)
main71014-25041i202003
W(PASSENGER SEAT BENCH TYPE)
main71014-25050i201206-202002
W(SEAT BACK CONSOLE)
main71014-25051i202003
W(SEAT BACK CONSOLE)
main71014-37050i200504-200708
main71014-37070i200504-200708
W(PASSENGER SEAT BENCH TYPE)
main71014-37100i200107-200504
main71014-37150i200709-201206
W(PASSENGER SEAT BENCH TYPE)
main71014-37160i200709-201206
W(SEAT BACK CONSOLE)
main71630-37080i200107-200504
W(PASSENGER SEAT BENCH TYPE)
main71640-25010i200108-200708
W(LUMBAR SUPPORT)
main71640-25011i201206-201502
W(LUMBAR SUPPORT)
main71640-25020i201206
main71640-37010i200709-201206
main71640-37020i200504-200708
main71640-37040i200308-200504
71812CCOVER, RECLINING ADJUSTER, LH
main71812-37010-B0i200107-200708
MD.CHARCOAL,TRIM1#
main71812-37011-B0i200909-201502
W(LUMBAR SUPPORT),MD.CHARCOAL,TRIM1#
main71812-37030-B0i200711-200908
MD.CHARCOAL,TRIM1#
main71812-37031-B0i200909-201206
MD.CHARCOAL,TRIM1#
main71812-37032-B0i201206-201505
MD.CHARCOAL,TRIM1#
main71812-37032-B1i201505
GRAY,TRIM1#
71832DCOVER, FRONT SEAT HINGE, LH
main71832-37010i200709-202111
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-37010i200711
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-37030i200107-200708
72138BCOVER, SEAT TRACK, LH
main72138-37010-B0i200107-201505
DK.CHARCOAL,TRIM1#
main72138-37010-B1i201505-201609
GRAY,TRIM13
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-37010i200107-200708
72213CKNOB, SEAT TRACK ADJUSTING HANDLE, LH
main72213-28030-D0i200308-200408
ORANGE
72301DWIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
main72301-37030i200107-200708
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
main72520-37030i200107-200708
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-37010-B0i200107-200708
MD.CHARCOAL,TRIM1#
main72526-37030-B0i200709-201505
MD.CHARCOAL,TRIM1#
main72526-37030-B1i201505
GRAY,TRIM1#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-25010i200108-200708
72791LEVER, LUMBAR SUPPORT
main72791-12010-B9i200108-200308
MD.CHARCOAL,TRIM1#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01006i200108-201502
9011908134
main90119-08134
9011910111
main90119-10111
9011910229
main90119-10229
9016740044
main90167-40044
9017908149
main90179-08149
9017911010
main90179-11010
9046818008
main90468-18008
9165160614
main91651-60614

30 parts on this diagram · 13 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
