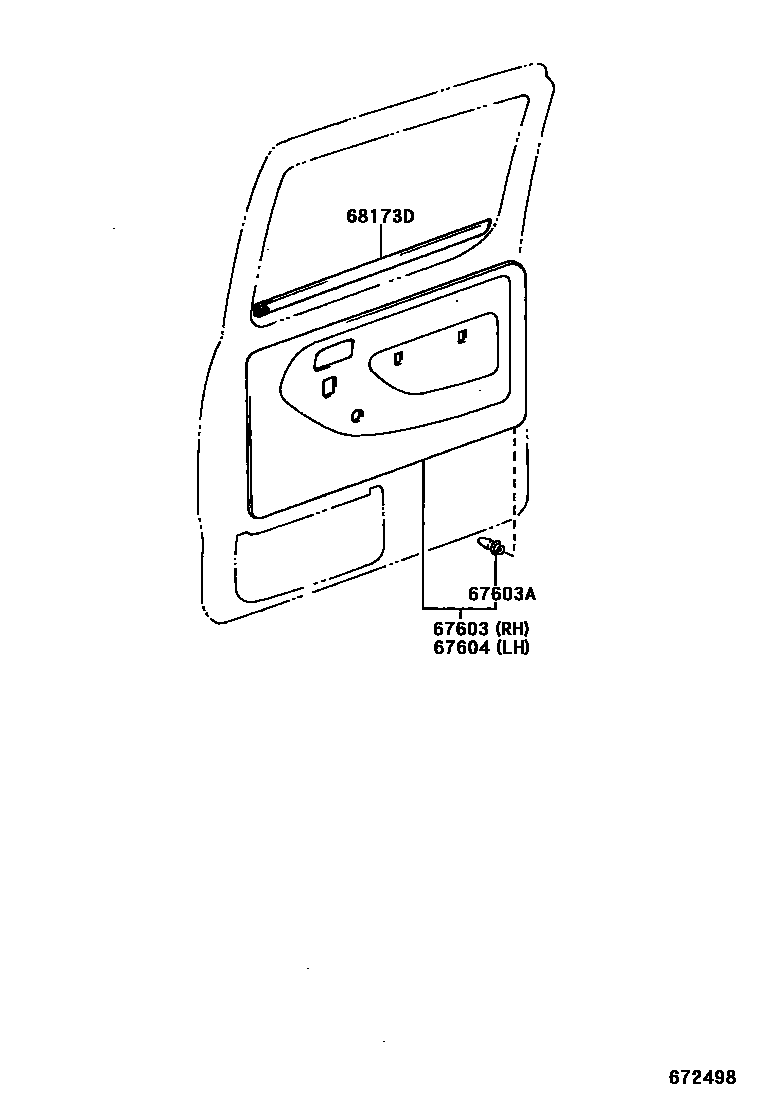

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-37090-B0iKDY23#,25#,26#..10T,125T200108-200910

MD.CHARCOAL,TRIM1#

main67630-37091-B0iKDY231,251,261..10T,125T200911-201502

MD.CHARCOAL,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080×20iKDY23#,25#,26#..10T,125T200108-201502

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-37070-B0iKDY23#,25#,26#..10T,125T200108-200910

MD.CHARCOAL,TRIM1#

main67640-37071-B0iKDY231,251,261..10T,125T200911-201502

MD.CHARCOAL,TRIM1#

68173DWEATHERSTRIP, REAR DOOR GLASS, CHANNEL

main68173-37010×2iKDY230,250,260..10T,125T200108-200312

main68173-37011×2iKDY23#,25#,26#..10T,125T200312-201502

4 parts on this diagram · 2 diagrams in section
