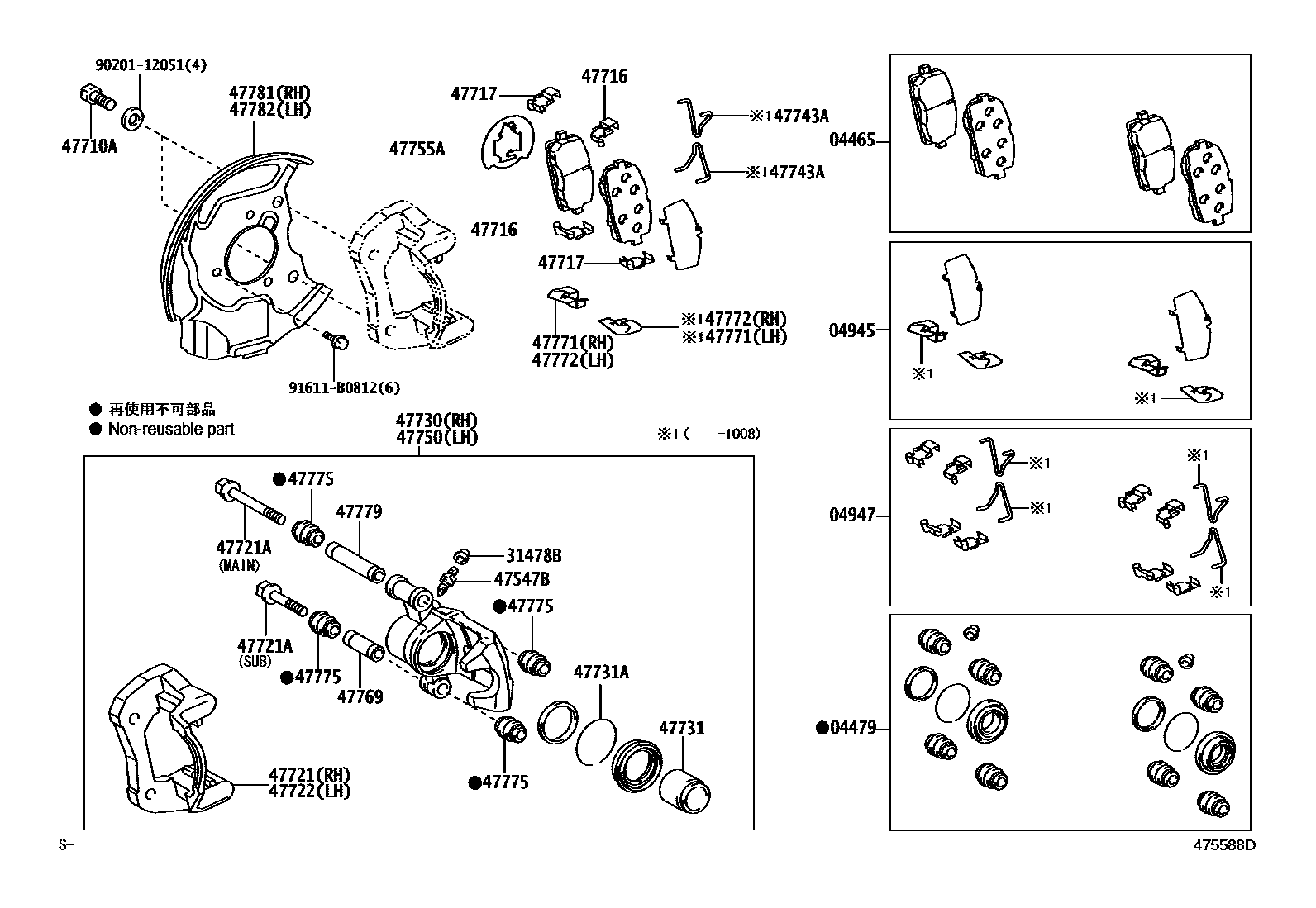

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-25040iKDY220,230,250,260,LY220,230200107-200408

MARK AISIN T536

main04465-25050iLY225,235200107

MARK AISIN T536

main04465-25060iKDY22#,23#,25#,26#,LY220,230200408-201008

MARK AISIN T536

main04465-25090iKDY221,231,251,261201008

MARK AISIN T536

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iLY225,235200107

main04479-26030iLY230..SA200107-202111

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-25020iLY225,235200107

main04945-26100iKDY22#,23#,25#,26#,LY220,230200107-201008

main04945-26220iLY230201008-202111

04947FITTING KIT, DISC BRAKE, FRONT

main04947-25010iLY225,235200107

main04947-25020iKDY22#,23#,25#,26#,LY220,230200107-201008

main04947-26040iLY230201008-202111

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLY230..SA200107-202111

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLY230..SA200107-202111

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12149×4iLY230..SA200107-202111

*12-1.25P-41X20

main90119-12096×8iLY225,235200107

*12-1.25PX42.5-32

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25011×4iLY225,235200107

main47716-26050×4iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN200107

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25011×4iLY225,235200107

main47717-26020×4iLY230..SA200107-202111

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25010iLY225,235200107

main47721-25030iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN200107

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLY230..SA200107-202111

*10-1.25PX65.5-30,SUB

main90119-10249×2iLY230..SA200107-202111

*10-1.25PX95.5-30,MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-25030iLY230..SA200107-202111

main47722-25010iLY225,235200107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25080iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN200107

main47730-25090iLY225,235200107

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iLY230..SA200107-202111

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001×2iLY230..SA200107-202111

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020×4iKDY22#,23#,25#,26#,LY220,230200107-201008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25080iLY230..SA200107-202111

main47750-25090iLY225,235200107

47755AINSULATOR, DISC BRAKE HEAT

main47755-25010×2iLY230..SA200107-202111

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iLY230..SA200107-202111

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-25010×3iLY225,235200107

main47771-26020iKDY221,231,251,261201008

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-25010×3iLY225,235200107

main47772-26020×2iKDY22#,23#,25#,26#,LY220,230200107-201008

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26010×8iLY230..SA200107-202111

main47775-40010×8iLY225,235200107

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLY230..SA200107-202111

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-25010iLY225,235200107

main47781-25030iLY230..SA200107-201610

main47781-25040iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-25010iLY225,235200107

main47782-25030iLY230..SA200107-201610

main47782-25040iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

9020112051

main90201-12051

91611B0812

main91611-B0812

27 parts on this diagram · 2 diagrams in section
