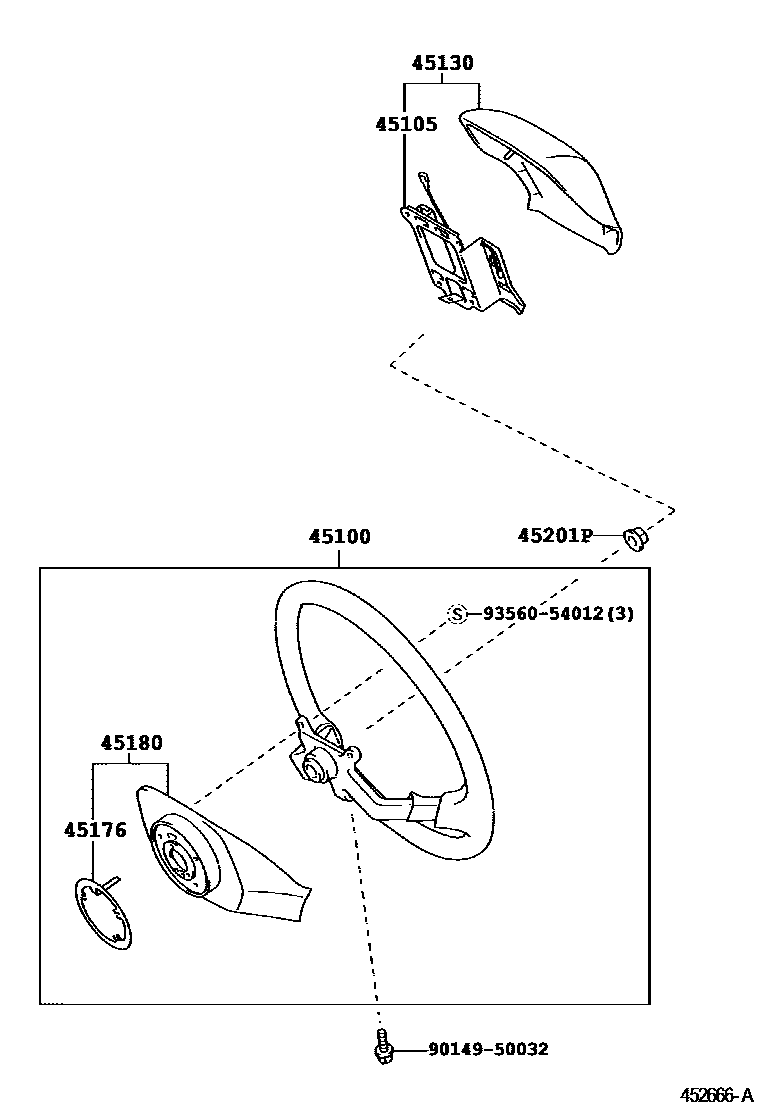

STEERING WHEEL

0001 12-SPOKE 0002 12-SPOKE, W(AIR BAG) 0003 12-SPOKE 0004 12-SPOKE

45100WHEEL ASSY, STEERING

main45100-26121-B1iLY225,235..ST200107-201505

2SPOKE,POLYPROPYLENE,MD.CHARCOAL,TRIM1#

main45100-26121-C0iLY225,235201505-201610

2SPOKE,POLYPROPYLENE,BLACK,TRIM1#

main45100-36140-B0iKDY220..RHD..IV3200107-200607

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

main45100-36140-C0iKDY221,231,LY230201505-201610

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37040-B1iKDY220..RHD..IV3200108-200607

2-SPOKE,URETHANE,W(AIR BAG),MD.CHARCOAL,TRIM1#

main45100-37090-C0iKDY221,231201610

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37100-C0iLY23#201610-202111

2-SPOKE,URETHANE,BLACK,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-36030iKDY220..RHD..IV3200107-200607

45130BUTTON ASSY, HORN

main45130-26110-B1iLY225,235..ST200107-201505

MD.CHARCOAL,TRIM1#

main45130-26110-C0iLY225,235201505-201610

BLACK,TRIM1#

main45130-36120-B0iKDY220..RHD..IV3200107-200607

MD.CHARCOAL,TRIM1#

main45130-36120-C0iKDY221,231,LY230201505-201610

BLACK,TRIM1#

main45130-37140-B0iKDY220..RHD..IV3200108-200607

W(AIR BAG),MD.CHARCOAL,TRIM1#

main45130-37170-C0iKDY221,231201610

BLACK,TRIM1#

main45130-37190-C0iLY23#201610-202111

BLACK,TRIM1#

45176RING, HORN CONTACT

main45176-30070iLY225,235..ST200107-201610

main45176-36020iKDY220..RHD..IV3200107-200607

45180COVER SUB-ASSY, STEERING WHEEL

main45180-36030-B0iKDY220..RHD..IV3200107-200607

MD.CHARCOAL,TRIM1#

main45180-36030-C0iKDY221,231,LY230201505-201610

BLACK,TRIM1#

main45180-37050-C0iKDY221,231201610

BLACK,TRIM1#

main45180-37060-C0iLY23#201610-202111

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iKDY220..RHD..IV3200107-200607

9014950032

main90149-50032

9356054012

main93560-54012

8 parts on this diagram · 4 diagrams in section
