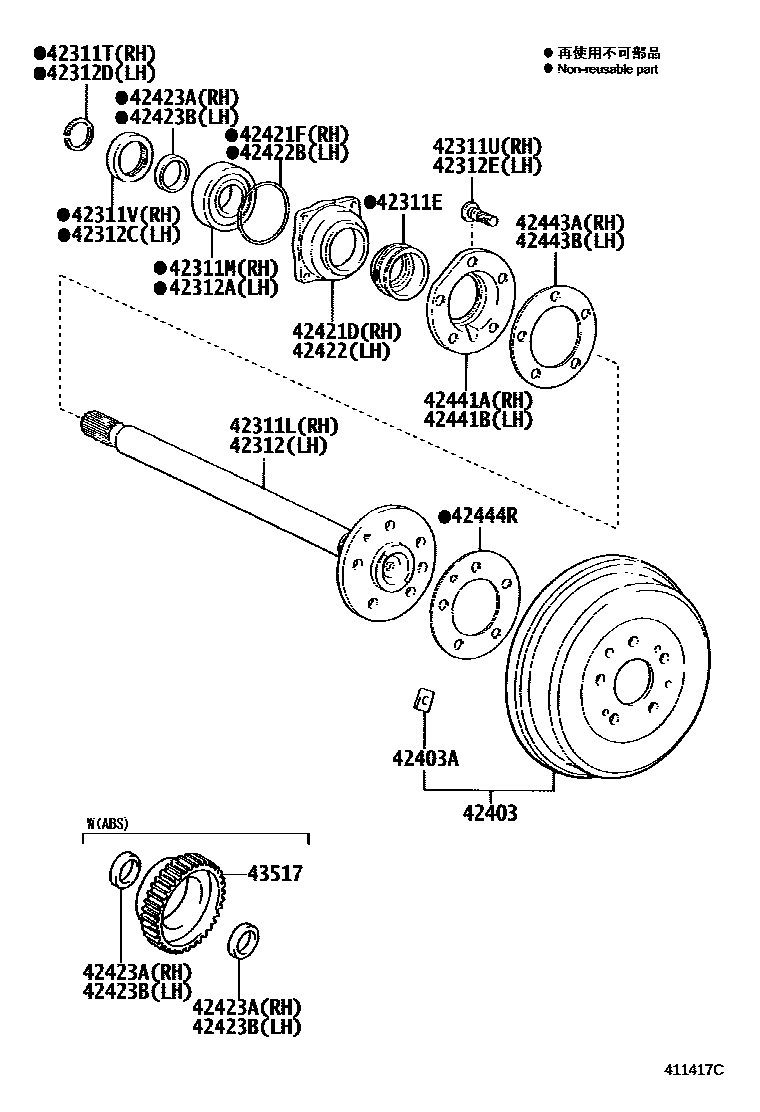

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1W/O(ABS) 0006 1W(ABS) 0007 1W(ABS)

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-54001×2iKDY22#,23#,LY22#..ST200107-201609

main90313-62001×2iLY235..ST200107

42311LSHAFT, REAR AXLE, RH

main42311-25071iKDY221,231,LY235..WT..CBU200107-201608

main42311-25072iKDY221,231201608

main42311-25110iKDY22#,23#,LY220..ST200107-201502

main42311-25120iLY225200107-201609

main42311-25140iLY235..ST200107

main42311-36101iKDY23#,25#,26#,LY230..WT..IV3200107-202111

42311MBEARING(FOR REAR AXLE SHAFT RH)

main90363-40068iKDY22#,23#,LY22#..ST200107-201609

NACHI

main90363-40072iKDY22#,23#,LY22#..ST200107-201609

KOYO

main90369-48001iLY235..ST200107

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-36045iKDY22#,23#,LY22#..ST200107-201609

main90520-44038iLY235..ST200107

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02041×6iKDY221,231,LY235..WT..CBU200107-201310

main90942-02052×6iKDY22#,23#,LY220..ST200107-200902

main90942-02061×6iLY230201610

main90942-02077×6iLY225,235..ST200107-200712

main90942-02079×6iKDY221,231..ST200902-201502

main90942-02083×6iLY225,235200712

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-36003iKDY221,231,LY235..WT..CBU200107

main90310-38033iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main90310-50001iKDY22#,23#,LY22#..ST200107-200708

main90310-50006iKDY221,231,LY225..ST200709-201609

main90310-58002iLY235..ST200107

42312SHAFT, REAR AXLE, LH

main42311-25071iKDY221,231,LY235..WT..CBU200107-201608

main42311-25072iKDY221,231201608

main42311-25110iKDY22#,23#,LY220..ST200107-201502

main42311-25120iLY225200107-201609

main42311-25140iLY235..ST200107

main42311-36101iKDY23#,25#,26#,LY230..WT..IV3200107-202111

42312ABEARING(FOR REAR AXLE SHAFT LH)

main90363-40068iKDY22#,23#,LY22#..ST200107-201609

NACHI

main90363-40072iKDY22#,23#,LY22#..ST200107-201609

KOYO

main90369-48001iLY235..ST200107

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-36003iKDY221,231,LY235..WT..CBU200107

main90310-38033iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main90310-50001iKDY22#,23#,LY22#..ST200107-200708

main90310-50006iKDY221,231,LY225..ST200709-201609

main90310-58002iLY235..ST200107

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-36045iKDY22#,23#,LY22#..ST200107-201609

main90520-44038iLY235..ST200107

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02042×6iKDY221,231,LY235..WT..CBU200107-201310

main90942-02052×6iKDY22#,23#,LY220..ST200107-200902

main90942-02062×6iLY230200107-200406

main90942-02077×6iLY225,235..ST200107-200712

main90942-02079×6iKDY221,231..ST200902-201502

main90942-02083×6iLY225,235200712

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25120×2iLY230201610-202111

main42431-25140×2iLY235..ST200107

main42431-25160×2iLY225200107-201609

main42431-26060×2iKDY221,231,LY235..WT..CBU200107

main42431-35110×2iKDY22#,23#,LY220..ST200107-201502

main42431-36090×2iKDY23#,25#,26#,LY230..WT..IV3200107-201610

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100iLY225200107-201609

40.5G

main90937-01117iLY225,235..ST;KDY22#,23#,25#,26#,LY220..ARL,EUR200107

10G

main90937-01118iLY230201610-202111

20G

main90937-01119iLY230201610-202111

30G

main90937-01120iLY230201610-202111

40G

main90937-01121iKDY23#,25#,26#..WT..IV3200108-202111

50G

main90937-01122iKDY23#,25#,26#..WT..IV3200108-202111

60G

main90937-01195iKDY22#,23#,LY220..ST200107-201502

40G

main90937-01196iKDY22#,23#,LY220..ST200107-201502

50G

42421DCASE, REAR AXLE BEARING, RH

main42421-35050iKDY22#,23#,LY22#..ST200107-201609

main42422-60030iLY235..ST200107

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-85004iLY235..ST200107

main90301-88077iKDY22#,23#,LY22#..ST200107-201609

42422CASE, REAR AXLE BEARING, LH

main42421-35050iKDY22#,23#,LY22#..ST200107-201609

main42421-60040iLY235..ST200107

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-85004iLY235..ST200107

main90301-88077iKDY22#,23#,LY22#..ST200107-201609

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-20010iKDY221..IV3;KDY220,23#,LY22#..ST200107

main42423-60030iLY235..ST200107

NO.1

main42423-60040iLY235..ST200107

NO.2

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-20010×2iKDY231..ST;KDY221..EUR..CBU;KDY221..LHD..IV3200609-201502

W(ABS)

main42423-60030iLY235..ST200107

NO.1

main42423-60040iLY235..ST200107

NO.2

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-25020iKDY221,231,LY235..WT..CBU200107-201310

main42441-25041iLY225200107-201609

main42441-25100iLY235..ST200107

main42441-35020iKDY22#,23#,LY220..ST200107-201502

main42441-36050iKDY23#,25#,26#,LY230..WT..IV3200107-201502

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-25020iKDY221,231..GEN201310

main42441-25041iLY225200107-201609

main42441-25100iLY235..ST200107

main42441-35020iKDY22#,23#,LY220..ST200107-201502

main42441-36050iKDY23#,25#,26#,LY230..WT..IV3200107-201502

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-25010iLY225,235..ST200107

main42443-55020iKDY22#,23#,LY220..ST200107-201502

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-25010iLY225,235..ST200107

main42443-55020iKDY22#,23#,LY220..ST200107-201502

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-25020×2iKDY22#,23#,LY22#,235..ST200107

43517ROTOR, SKID CONTROL, REAR

main43517-35010×2iKDY22#,23#..ST200108-201502

main43517-37010×2iKDY23#,25#,26#..WT..IV3200108-202111

25 parts on this diagram · 6 diagrams in section
