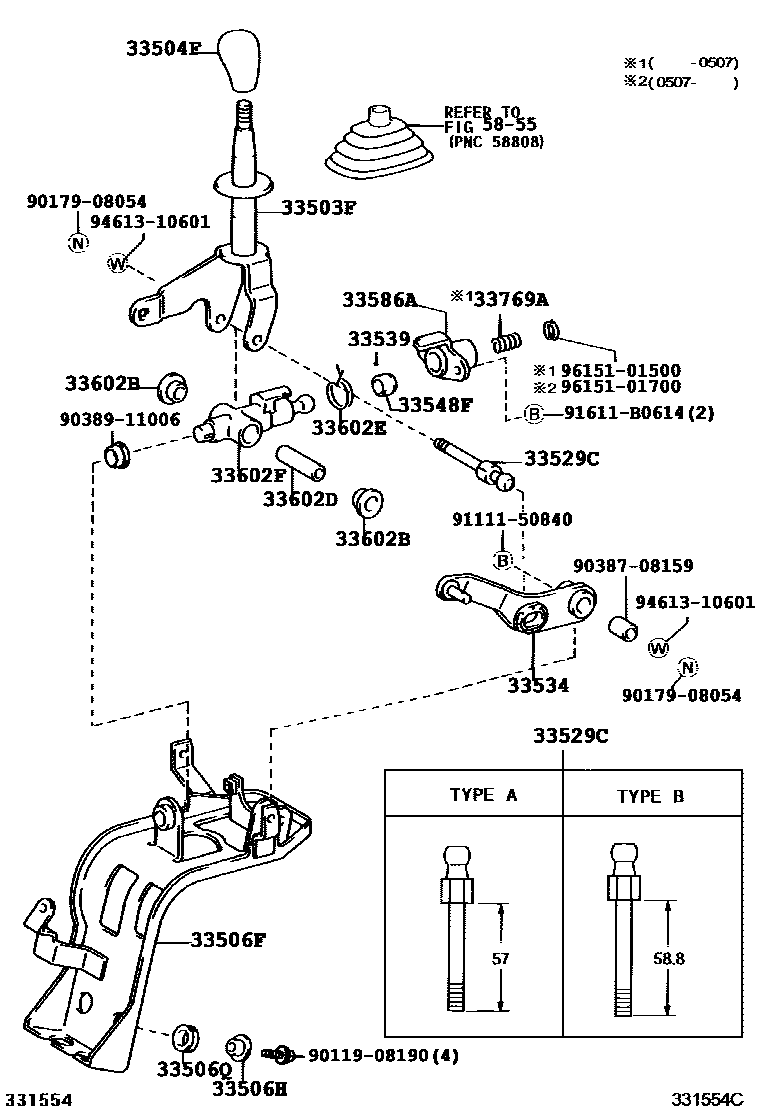

SHIFT LEVER & RETAINER

0001 1M/T RHD FIXING TYPE 0002 1M/T RHD FIXING TYPE 0003 1 0005 1 0006 1M/T LHD FIXING TYPE 0007 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-37060iKDY220..RHD..IV3200107-202111

main33055-37091iKDY22#,23#,25#,26#,LY225,235..LHD200107

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35030-B3iKDY220..RHD..IV3200107-201505

DK.CHARCOAL,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B3iLY225,23#201505-202111

DK.CHARCOAL,TRIM12

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-C1iLY225,23#201505-202111

BLACK,TRIM13

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-C1iLY225,23#201505-202111

BLACK,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-37031iKDY220..RHD..IV3200107-202111

main33506-37052iKDY22#,23#,25#,26#,LY225,235..LHD200107

33506HBUSH (FOR SHIFT LEVER RETAINER)

main90386-12056iKDY220..RHD..IV3200107-202111

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main33577-37060iKDY220..RHD..IV3200107-202111

33529CBOLT, SHIFT LEVER

main33529-37030iKDY220..RHD..IV3200107-202111

33534BELLCRANK, SELECTING

main33534-37060iKDY220..RHD..IV3200107-202111

main33534-37081iKDY22#,23#,25#,26#,LY225,235..LHD200107

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#200107-202111

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040iKDY220..RHD..IV3200107-201209

main33548-52010iKDY221,231,LY23#..RHD..(GEN,SA)201209-202111

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-37010iKDY220..RHD..IV3200507-202111

main33586-37020iKDY220,230,250,260,LY22#,23#200107-200507

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iLY225;LY235..WT;LY235..LHD;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230..ARL,EUR200107-202111

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03034iKDY220..RHD..IV3200107-202111

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-37020iKDY220..RHD..CBU;KDY221,23#,25#,LY22#,23#..RHD200107-202111

main33602-37030iKDY22#,23#,25#,26#,LY225,235..LHD200107

33769ASPRING, CROSS SHAFT END

main33769-37020iKDY220,230,250,260,LY22#,23#200107-200507

5855

9011908190

main90119-08190

9017908054

main90179-08054

9038708159

main90387-08159

9038911006

main90389-11006

9111150840

main91111-50840

91611B0614

main91611-B0614

9461310601

main94613-10601

9615101500

main96151-01500

9615101700

main96151-01700

25 parts on this diagram · 6 diagrams in section
