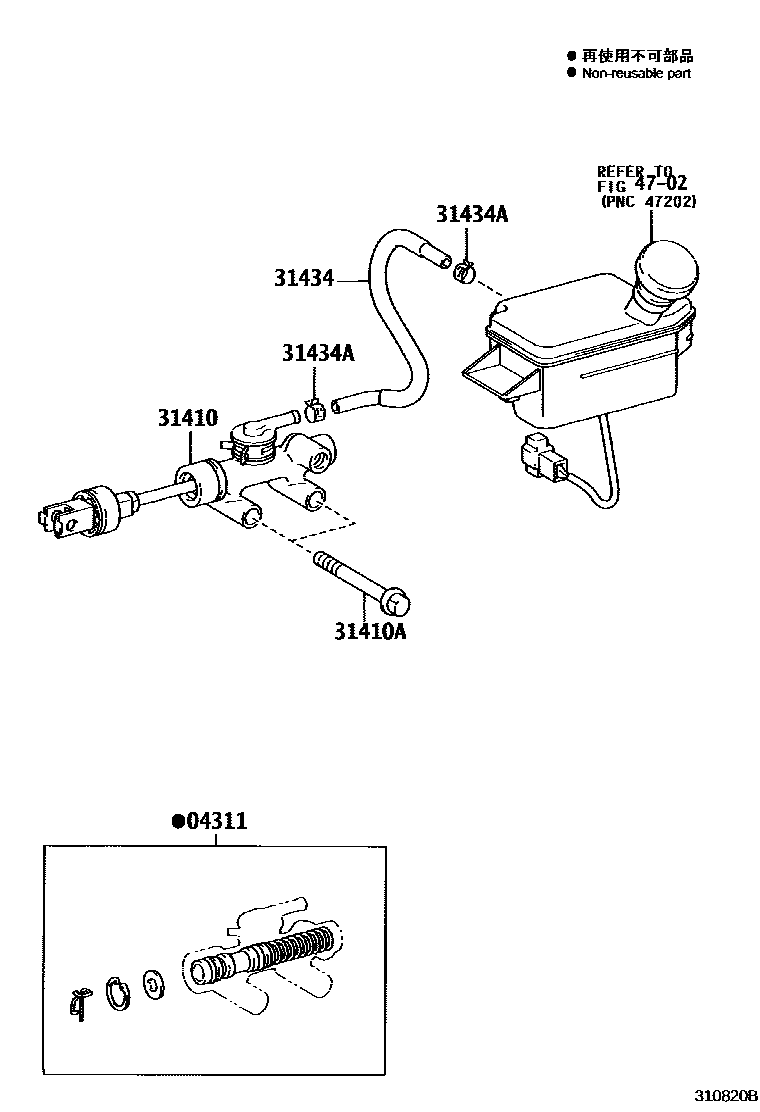

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-25020iKDY22#,23#,25#,26#,LY22#,23#200107-202111

31410CYLINDER ASSY, CLUTCH MASTER

main31420-25040iKDY22#,23#,25#,26#,LY22#,23#200107-202111

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iKDY22#,23#,25#,26#,LY22#,23#200107-201610

31434TUBE, CLUTCH RESERVOIR

main31434-25060iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main31434-25070iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main31434-37260iKDY221,231,LY23#..RHD201610-202111

main31434-37280iLY235..LHD201610

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-16003×2iKDY220,230,250,260,LY22#,23#200107-200111

main96133-41300×2iKDY221,231,LY23#..RHD201610-202111

main96133-41500×2iKDY22#,23#,25#,26#,LY22#,23#200111-201610

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

6 parts on this diagram · 4 diagrams in section
