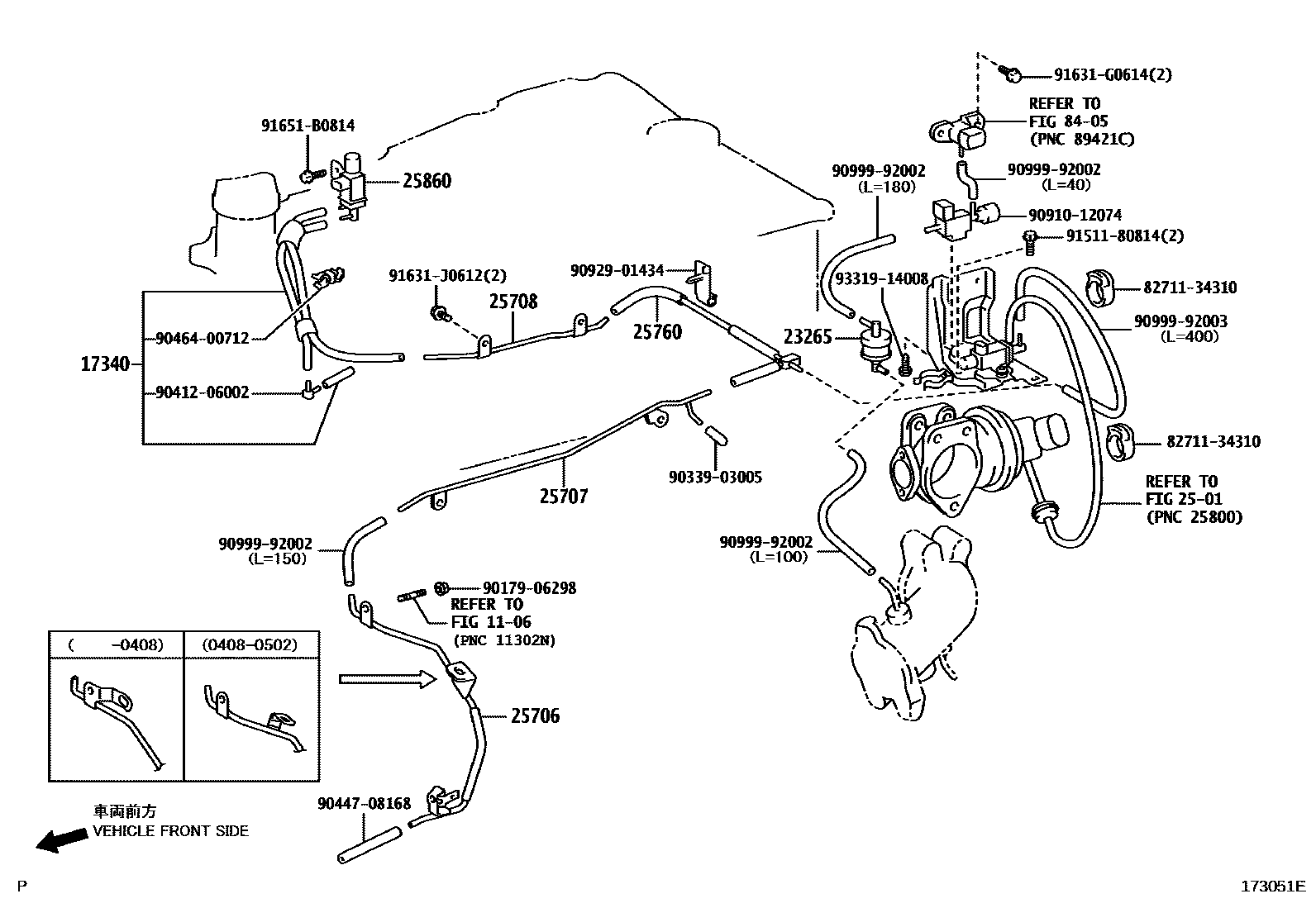

VACUUM PIPING

0001 1 0002 1 0004 1 0005 1 0007 1 0009 1W(AIR CONDITIONER)

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

17340HOSE ASSY, VACUUM SWITCHING VALVE

main17340-30030i2KDFTV..KDY220,230,250,260200108-200610

23265FILTER, GAS, NO.1

main90917-11036i1KDFTV..KDY221,231..GEN200609-201310

main90917-11038i1KDFTV..KDY221,231,251,261..EUR200905

main90917-11044i2KDFTV..KDY220,230,250,260200108-200610

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30010i2KDFTV..KDY220,230,250,260200108-200408

main25706-30030i2KDFTV..KDY220,230,250,260200408-200502

main25706-30031i1KDFTV..KDY221,231,251,261..EUR200502-201109

main25706-30060i1KDFTV..KDY221,231..GEN201310

main25706-54011i5L..LY230200911-202111

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-30030i1KDFTV..KDY221,231,251,261..EUR200609-201109

main25707-30040i1KDFTV..KDY221,231,251,261..EUR201109

main25707-67011i2KDFTV..KDY220,230,250,260200108-200610

25708PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3

main25708-30010i2KDFTV..KDY220,230,250,260200108-200610

main25708-30060i1KDFTV..KDY221,231,251,261..EUR201109

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-30020i2KDFTV..KDY220,230,250,260200108-200610

main25760-30130i1KDFTV..KDY221,231,251,261..EUR200609-200905

main25760-54270i5L..LY235..WT;5L..LY220,230..ARL200107-202111

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30020i2KDFTV..KDY220,230,250,260200108-200610

main25860-30070i1KDFTV..KDY221,231,251,261..EUR200609-200905

main25860-30110×2i1KDFTV..KDY221,231,251,261..EUR201109

main25860-54300i5L..LY220,230..ARL200107-200412

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9017906298

main90179-06298

9033903005

main90339-03005

9041206002

main90412-06002

9044708168

main90447-08168

9046400712

main90464-00712

9091012074

main90910-12074

9092901434

main90929-01434

9099992002

main90999-92002

9099992003

main90999-92003

9151180814

main91511-80814

91631G0614

main91631-G0614

91631J0612

main91631-J0612

91651B0814

main91651-B0814

9331914008

main93319-14008

25 parts on this diagram · 6 diagrams in section
