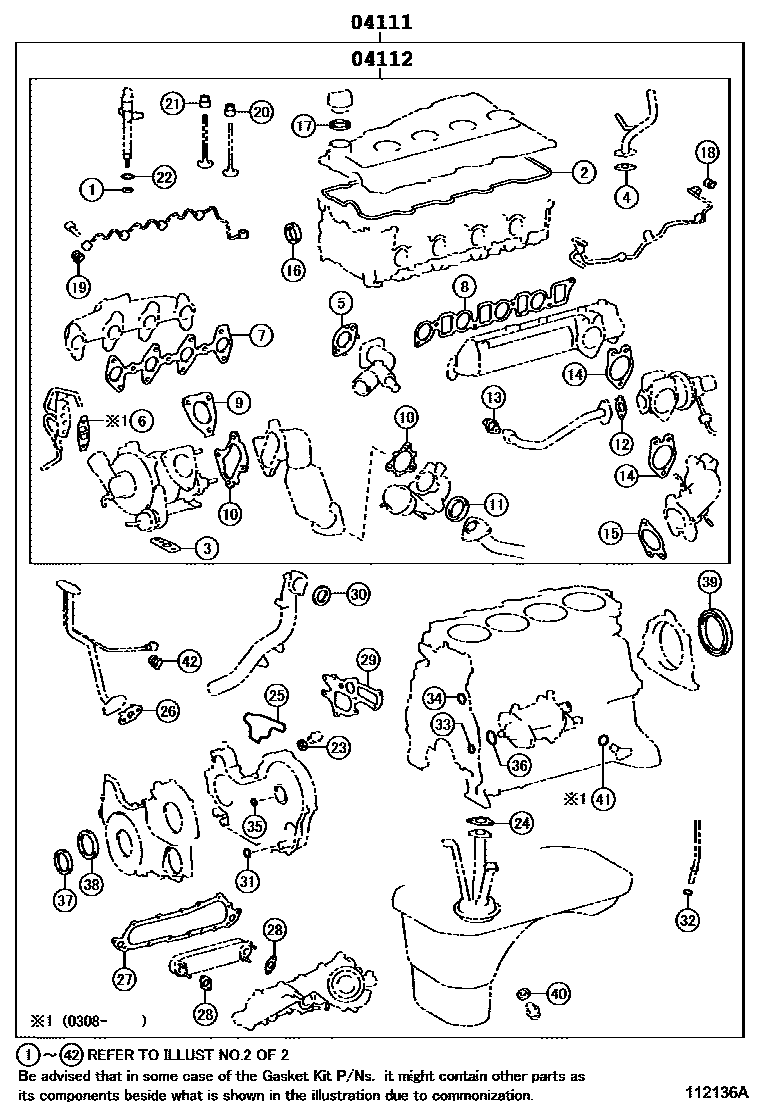

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0011 1 0013 1 0014 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-30030i2KDFTV..KDY220,230,250,260200108-200308

main04111-30420i2KDFTV..KDY220,230,250,260200308-200403

main04111-30421i2KDFTV..KDY220,230,250,260200403-200610

main04111-30640i1KDFTV..KDY221,231,251,261200609-200710

main04111-30641i1KDFTV..KDY221,231,251,261200710-200812

main04111-30642i1KDFTV..KDY221,231..GEN200812-201005

main04111-30643i1KDFTV..KDY221,231..GEN201005-201202

main04111-30644i1KDFTV..KDY221,231..GEN201202-201209

main04111-30645i1KDFTV..KDY221,231,251,261..LHD201209-201307

main04111-30646i1KDFTV..KDY221,231,251..RHD..EUR201308-201410

main04111-30647i1KDFTV..KDY221,231,251,261201410-201712

main04111-30695i1KDFTV..KDY221,231201712

main04111-30750i1KDFTV..KDY221,231,251,261..EUR200905-201005

main04111-30751i1KDFTV..KDY221,231,251,261..EUR201005-201109

main04111-30811i1KDFTV..KDY221,231,251,261..EUR201109-201202

main04111-30812i1KDFTV..KDY221,231,251,261..EUR201202-201209

main04111-30813i1KDFTV..KDY221,231..GEN201209-201310

main04111-54311i5L..LY22#,23#200107-200408

main04111-54450i5L..LY230..SA200408-200911

main04111-54510i5L..LY235..WT;5L..LY220,230..ARL200408-202111

04112GASKET KIT, ENGINE VALVE GRIND

main04112-30030i2KDFTV..KDY220,230,250,260200108-200308

main04112-30070i2KDFTV..KDY220,230,250,260200308-200403

main04112-30071i2KDFTV..KDY220,230,250,260200403-200610

main04112-30260i1KDFTV..KDY221,231,251,261200609-200710

main04112-30261i1KDFTV..KDY221,231,251,261200710-200812

main04112-30262i1KDFTV..KDY221,231..GEN200812-201310

main04112-30370i1KDFTV..KDY221,231,251,261..EUR200905-201109

main04112-30431i1KDFTV..KDY221,231..GEN201310-201410

main04112-30432i1KDFTV..KDY221,231,251,261201410

main04112-54250i5L..LY22#,23#200107-200408

main04112-54390i5L..LY230..SA200408-200911

main04112-54400i5L..LY235..WT;5L..LY220,230..ARL200408-202111

2 parts on this diagram · 10 diagrams in section
