HEATING & AIR CONDITIONING - WATER PIPING

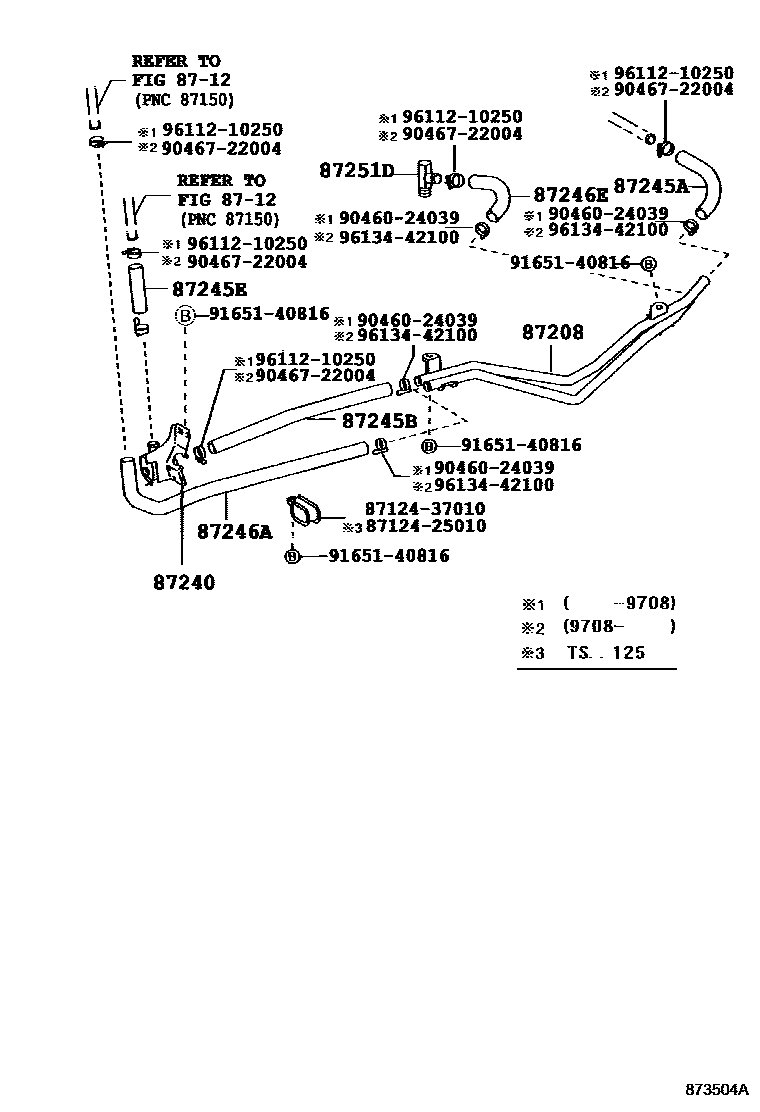

Parts diagram
8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
→ Go to FIG 87-12
87208PIPE SUB-ASSY, HEATER WATER
main87208-25090i199505-199610
W(FR HEAER)
main87208-25100i199505-199905
W(FR HEAER & RR HEATER)
main87208-25170i199610
W(FR HEAER)
87240VALVE ASSY, HEATER WATER
main87240-37010i199505
87245AHOSE, HEATER WATER, INLET A
main87245-25220i199505-199905
W(FR HEAER & RR HEATER)
main99556-30300i199505
*H,L=250; *H,L=280
87245BHOSE, HEATER WATER, INLET B
main87245-25390i199708-199710
L=390
main87245-25410i199708-199710
L=700
main99556-30500i199505-199708
*H,L=390; *H,L=390,W(FR HEAER)
main99556-30700i199505-199708
L=700,W(FR HEAER & RR HEATER)
87245EHOSE, HEATER WATER, INLET E
main99556-30100i199505
*H,L=90
87246AHOSE, HEATER WATER, OUTLET A
main87245-25080i199505-199508
L=740; L=740,W(FR HEAER & RR HEATER)
main87245-25400i199708-199710
L=480
main87245-25420i199708-199710
L=740
main99556-30500i199505-199708
*H,L=480; *H,L=480,W(FR HEAER)
main99556-31000i199710
*H,L=740
87246EHOSE, HEATER WATER, OUTLET E
main87245-25090i199505
main87245-25230i199605-199708
W(RR HEATER)
main87245-25380i199708-199710
L=250
main87245-25430i199708-199710
main99556-30300i199505-199708
*H,L=250; *H,L=250,W(FR HEAER)
87251DJOINT, WATER, NO.1
main87251-89113i199505-199610
8712425010CLAMP, HEATER
main87124-25010
8712437010CLAMP, HEATER
main87124-37010
9046024039
main90460-24039
9046722004
main90467-22004
9165140816
main91651-40816
9611210250
main96112-10250
9613442100
main96134-42100

16 parts on this diagram · 3 diagrams in section
