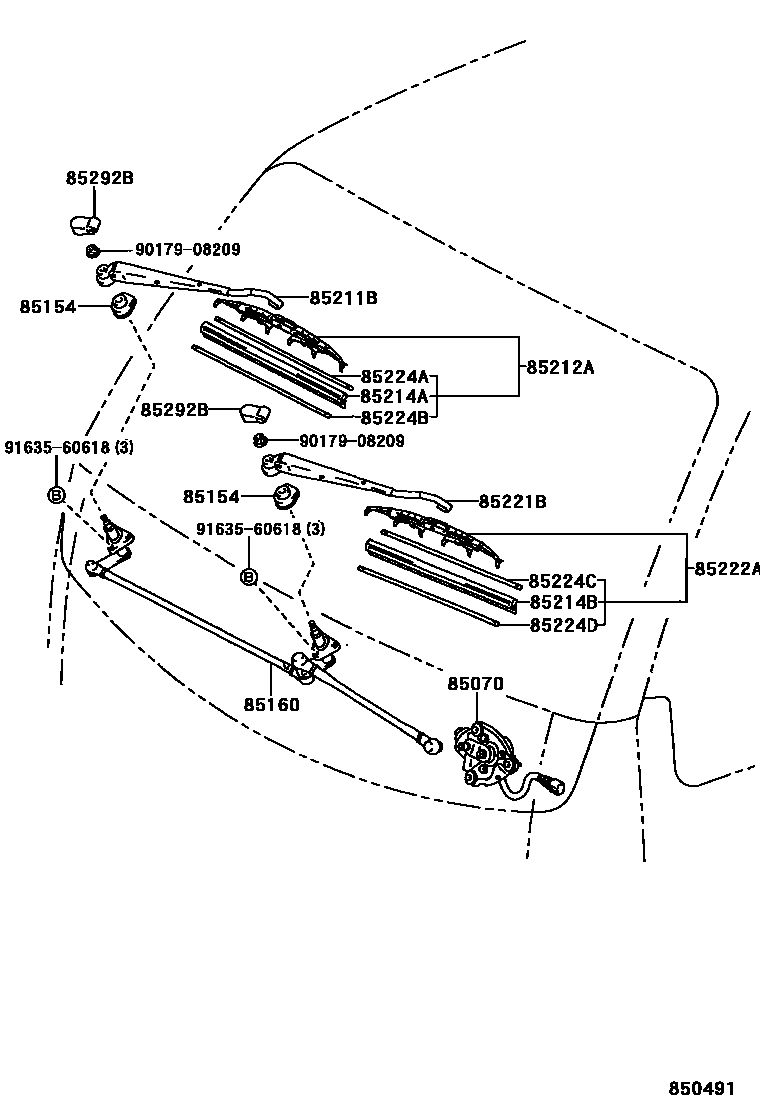

WINDSHIELD WIPER
85070MOTOR & BRACKET ASSY, FRONT WIPER
85154PACKING, FRONT WIPER SHAFT
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85292BCAP, FRONT WIPER ARM HEAD
9017908209
main90179-08209
9163560618
main91635-60618
16 parts on this diagram · 1 diagram in section
