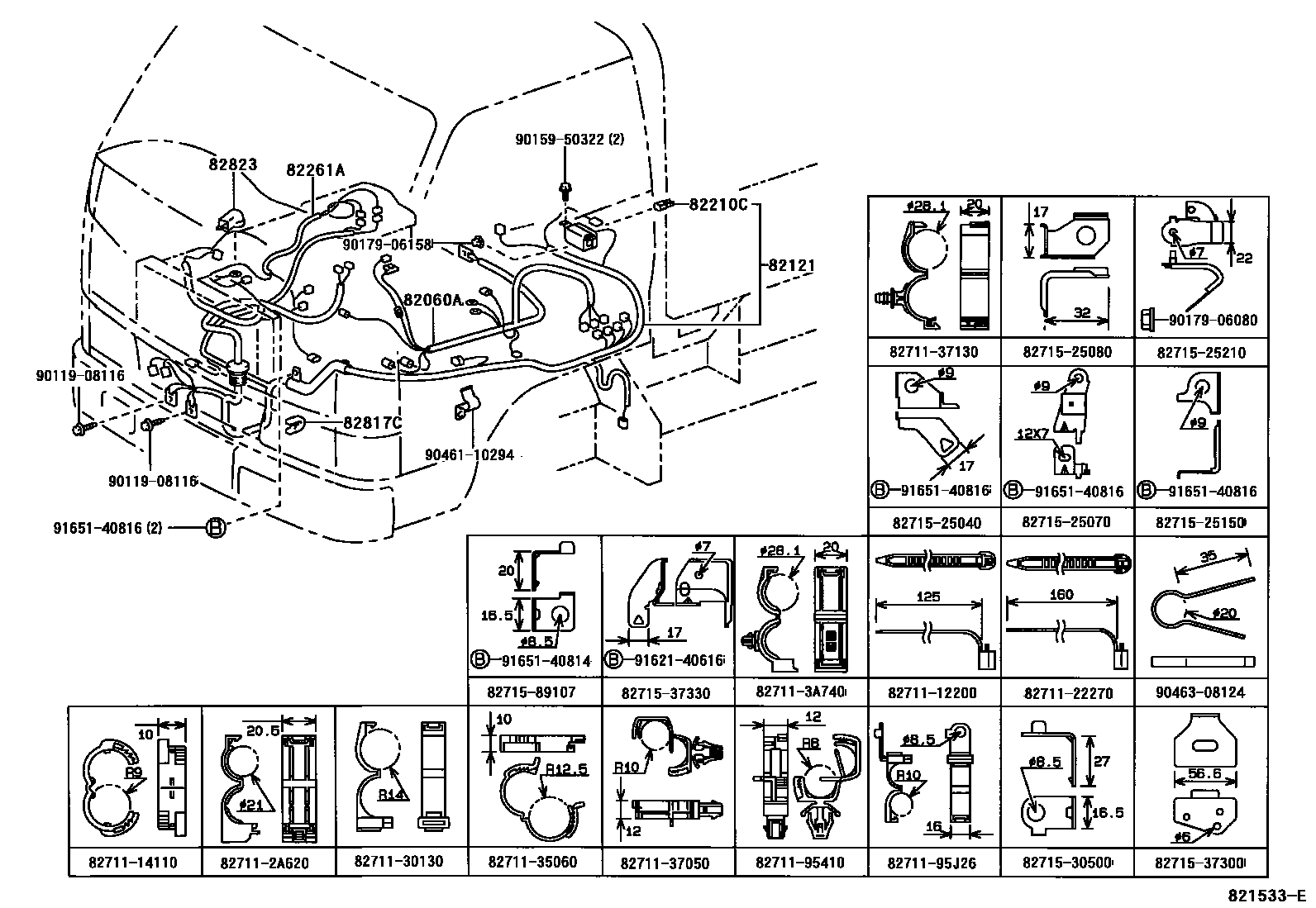

WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE WIRE 0003 1COWL & INSTRUMENT WIRE 0004 1COWL & INSTRUMENT WIRE 0005 1ROOF & FLOOR WIRE 0006 1BODY WIRE 0007 1CABLE BOND 0008 1CABLE BOND

82060AWIRE ASSY, ENGINE, NO.2

main82060-25033iLY211..GEN199505-199610

main82060-25034iLY211..ST;LY212..SA199905

main82060-25043iLY211..ARL199505-199905

main82060-25070iLY211..EUR199605-199805

main82060-25071iLY212..125199805-199905

main82060-25080iLY212..EUR,GEN199905

main82060-26013iLY211..EUR199505-199605

main82060-26014iLY211..WT..CBU199610-199905

main82060-26015iLY211..WT199905-199912

82121WIRE, ENGINE

main82121-25070iLY211..RHD..GEN199505-199610

main82121-25071iLY211..RHD..ST..GEN199610-199905

main82121-25072iLY211..RHD..ST..GEN199905

main82121-25102iYY211..RHD..ST199505-199610

main82121-25103iYY211..RHD..ST199610-199905

main82121-25112iYY211..LHD199505-199610

main82121-25113iYY211..LHD199610

main82121-25122iLY211..ARL199505-199610

main82121-25123iLY211..ARL199610-199905

main82121-25124iLY211..ARL199905

main82121-25152iLY211..EUR199505-199605

main82121-25153iLY211..EUR199605-199610

main82121-25154iLY211..EUR199610-199805

main82121-25155iLY212199805-199905

main82121-25156iLY212..EUR199905

main82121-25191iLY211..LHD..GEN199505-199610

main82121-25192iLY211..LHD..GEN199610-199905

main82121-25193iLY211..LHD199905

main82121-25201iYY211..RHD..ST199505-199508

SINGAPORE SPEC

main82121-25202iYY211..WT199610-199712

main82121-25203iYY211..WT199712-199912

main82121-25230iLY211..WT..CBU199610-199905

main82121-25231iLY211..WT199905-199912

main82121-25430iLY212..CBU200002

main82121-25440iLY212..SA199909

82210CFUSIBLE LINK

main90982-08189iLY212;LY211,YY211..ST199912

40A,TERM.:FEMALE,GRN

main90982-08202iLY212;LY211,YY211..ST199912

60A,TERM.:MALE,YEL

main90982-08203iLY212;LY211..ST199912

80A,TERM.:MALE,BLK

82261AWIRE, ALTERNATOR

main82261-25010iLY211..ARL,GEN199505-199708

main82261-25020iLY211..EUR199505-199708

main82261-25021iLY212;LY211..ST199912

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-37070iLY212..T2;LY211..RHD..ST..GEN199912

82823CAP, TERMINAL, NO.1

main82823-22050iLY21#,YY211199905-199912

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

827112A620WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A620

8271130130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30130

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

8271137050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37050

8271137130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37130

827113A740WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A740

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410

8271195J26WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95J26

8271525040BRACKET,WIRING HARNESS CLAMP

main82715-25040

8271525070BRACKET,WIRING HARNESS CLAMP

main82715-25070

8271525080BRACKET,WIRING HARNESS CLAMP

main82715-25080

8271525150BRACKET,WIRING HARNESS CLAMP

main82715-25150

8271525210BRACKET,WIRING HARNESS CLAMP

main82715-25210

8271530500BRACKET,WIRING HARNESS CLAMP

main82715-30500

8271537300BRACKET,WIRING HARNESS CLAMP

main82715-37300

8271537330BRACKET,WIRING HARNESS CLAMP

main82715-37330

8271589107BRACKET,WIRING HARNESS CLAMP

main82715-89107

9011908116

main90119-08116

9015950322

main90159-50322

9017906080

main90179-06080

9017906158

main90179-06158

9046110294

main90461-10294

9046308124

main90463-08124

9162140616

main91621-40616

9165140814

main91651-40814

9165140816

main91651-40816

35 parts on this diagram · 8 diagrams in section
