Toyota DYNA 150 — HEADLAMP

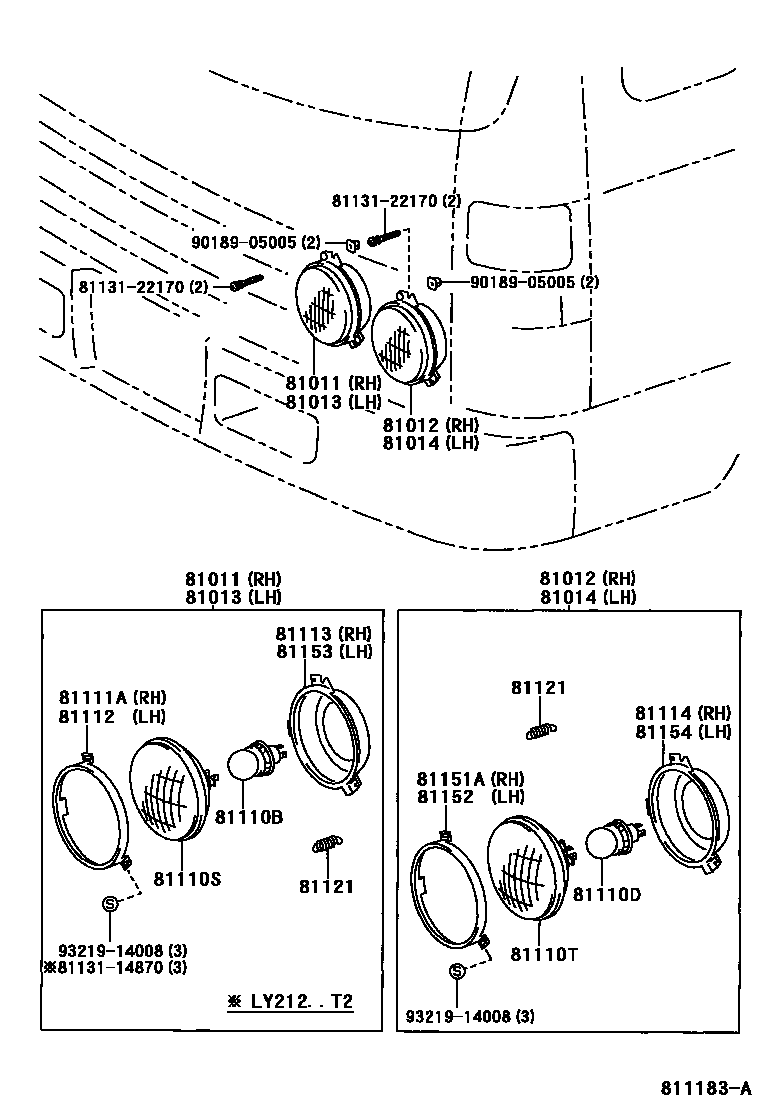

Parts diagram

81011HEADLAMP SUB-ASSY, NO.1

81012HEADLAMP SUB-ASSY, NO.2

81013HEADLAMP SUB-ASSY, TYPE 1, LH

81014HEADLAMP SUB-ASSY, TYPE 2, LH

81110HEADLAMP ASSY, RH

81110BBULB(FOR HEADLAMP, NO.1)

81110DBULB(FOR HEADLAMP, NO.2)

81110SSEALED BEAM UNIT, NO.1

81110TSEALED BEAM UNIT, NO.2

81111ARING, SEALED BEAM RETAINING, NO.1 RH

81112RING, SEALED BEAM RETAINING, NO.2 RH

81113RING, SEALED BEAM MOUNTING, NO.1 RH

81114RING, SEALED BEAM MOUNTING, NO.2 RH

81121SPRING, HEADLAMP TENSION

81151ARING, SEALED BEAM RETAINING, NO.1 LH

81152RING, SEALED BEAM RETAINING, NO.2 LH

81153RING, SEALED BEAM MOUNTING, NO.1 LH

81154RING, SEALED BEAM MOUNTING, NO.2 LH

8113114870SCREW, HEADLAMP ADJUSTING

8113122170SCREW, HEADLAMP ADJUSTING

9018905005

9321914008

22 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota DYNA 150

This section contains 28 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA 150. Key components include: HEADLAMP SUB-ASSY, NO.1, HEADLAMP SUB-ASSY, NO.2, HEADLAMP SUB-ASSY, TYPE 1, LH, HEADLAMP SUB-ASSY, TYPE 2, LH, HOUSING SUB-ASSY, HEADLAMP, RH.
