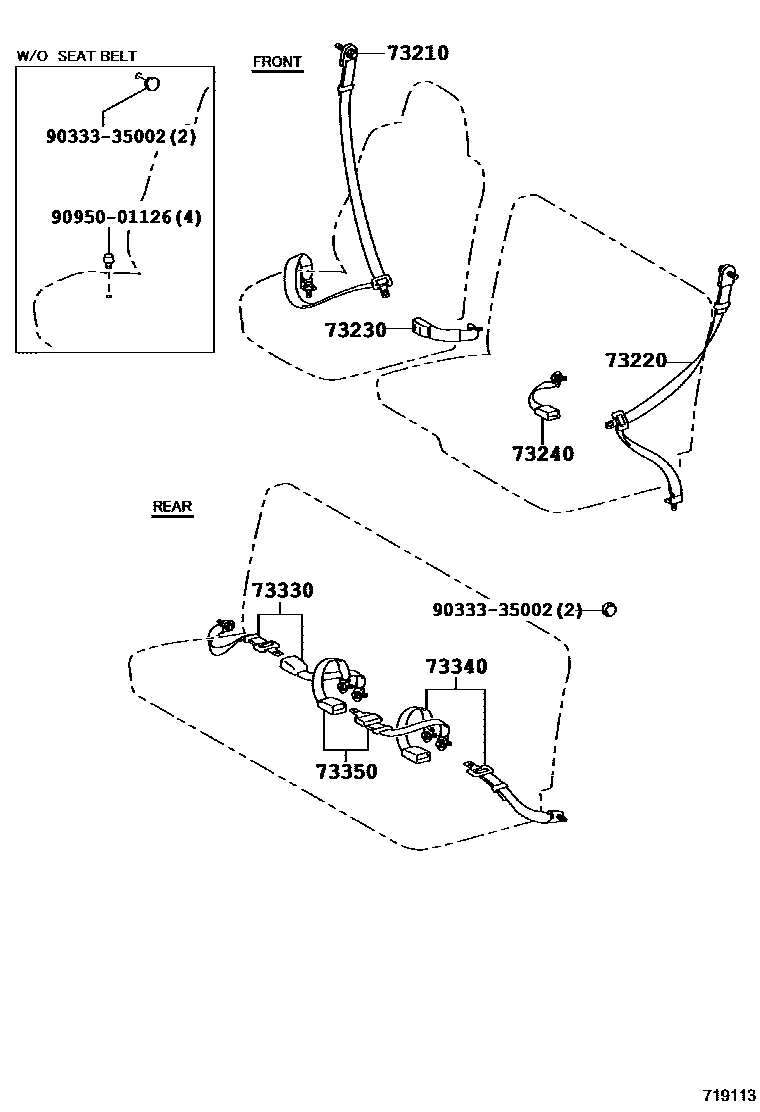

SEAT BELT

0001 1 0002 1 0003 1 0004 1

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-37010-B1iLY211..ARL; LY211..ST..15T..CBU199505-199604

BLUISH GRAY,TRIM1#; HONG KONG SPEC,BLUISH GRAY,TRIM1#

main73210-37011-B1iLY211..ST..15T..CBU199605-199610

W(*ELR),BLUISH GRAY,TRIM1#

main73210-37060-B1iLY211..EUR199505-199708

GRAY,TRIM1#

main73210-37061-B1iLY21#..EUR199708-200002

BLUISH GRAY,TRIM1#

main73210-37070-B0iLY211..ST..15T..CBU199610

W(*ELR),BLUISH GRAY,TRIM1#

main73210-37090-B0iLY211..ST..15T..CBU; LY211..T2,TW2;LY211..GEN..IV;LY212,YY211..CBU199610

BLUISH GRAY,TRIM1#; W(*NLR),BLUISH GRAY,TRIM1#

main73210-95A00-B1iLY211..ST..15T..CBU; YY211;LY211..T2,TW2;LY211..GEN..IV199505-199610

GRAY,TRIM1#; W(*NLR),GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-37010-B1iLY211..ST..15T..CBU199505-199508

HONG KONG SPEC,BLUISH GRAY,TRIM1#

main73210-37011-B1iLY211..ST..15T..CBU199605-199610

W(*ELR),BLUISH GRAY,TRIM1#

main73210-37060-B1iLY211..EUR199505-199708

GRAY,TRIM1#

main73210-37061-B1iLY212..IV200002

BLUISH GRAY,TRIM1#

main73210-37070-B0iLY211..ST..15T..CBU199610

W(*ELR),BLUISH GRAY,TRIM1#

main73210-37090-B0iLY211..ST..15T..CBU; LY211..T2,TW2;LY211..GEN..IV;LY212,YY211..CBU199610

BLUISH GRAY,TRIM1#; W(*NLR),BLUISH GRAY,TRIM1#

main73210-95A00-B1iLY211..ST..15T..CBU; YY211;LY211..T2,TW2;LY211..GEN..IV199505-199610

GRAY,TRIM1#; W(*NLR),GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-95419-B1iLY211..ST..15T..CBU199610

W(*ELR),GRAY,TRIM1#

main73230-95420-B1iLY211..ARL199505

BLUISH GRAY,TRIM1#

main73230-95422-B1iLY211..ST..15T..CBU; LY211..WT..CBU;LY211..RHD..GEN..IV;LY212,YY211..RHD..CBU199505

GRAY,TRIM1#; W(*NLR),GRAY,TRIM1#

main73230-95A05-B1iLY21#..EUR199505

GRAY,TRIM1#

main73230-95A06-B1iLY212..SA200002

GRAY,TRIM1#

main73240-37120-B0iLY211,YY211..LHD..GEN199610

BLUISH GRAY,TRIM1#

main73240-95425-B2iLY211,YY211..LHD..GEN199505-199610

BLUISH GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-95A00-B1iLY211,YY211..LHD..GEN199505

GRAY,TRIM1#

main73240-25020-B0iLY211..WT..IV199505-199708

W(*ELR),BLUISH GRAY,TRIM1#

main73240-37031-B1iLY211..ARL; LY211..ST..15T..CBU199505-199605

BLUISH GRAY,TRIM1#; HONG KONG SPEC,BLUISH GRAY,TRIM1#

main73240-37032-B1iLY211..ARL199605

BLUISH GRAY,TRIM1#

main73240-37061-B0iLY211..ST..15T..CBU199610

W(*ELR),BLUISH GRAY,TRIM1#

main73240-37090-B0iLY21#..EUR199505

GRAY,TRIM1#

main73240-37120-B0iLY211..ST..15T..CBU; LY211..WT..CBU;LY211..RHD..GEN..IV;LY212,YY211..RHD..CBU199610

BLUISH GRAY,TRIM1#; W(*NLR),BLUISH GRAY,TRIM1#

main73240-95425-B2iLY211..ST..15T..CBU; YY211..RHD;LY211..WT..CBU;LY211..RHD..GEN..IV199505-199610

BLUISH GRAY,TRIM1#; W(*NLR),BLUISH GRAY,TRIM1#

main73240-95A08-B1iLY212..SA200002

GRAY,TRIM1#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-37050-B0iLY211,YY211..125..CBU199505-199610

GRAY,TRIM1#

main73330-37051-B0iLY211,YY211..125..CBU199610

BLUISH GRAY,TRIM1#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-37050-B0iLY211,YY211..125..CBU199505-199610

GRAY,TRIM1#

main73330-37051-B0iLY211,YY211..125..CBU199610

BLUISH GRAY,TRIM1#

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-26110-B1iLY21#..125..IV199605

GRAY,TRIM1#

main73350-37070-B0iLY211,YY211..125..CBU199505-199610

GRAY,TRIM1#

main73350-37071-B0iLY211,YY211..125..CBU199610

BLUISH GRAY,TRIM1#

9033335002

main90333-35002

9095001126

main90950-01126

9 parts on this diagram · 4 diagrams in section
