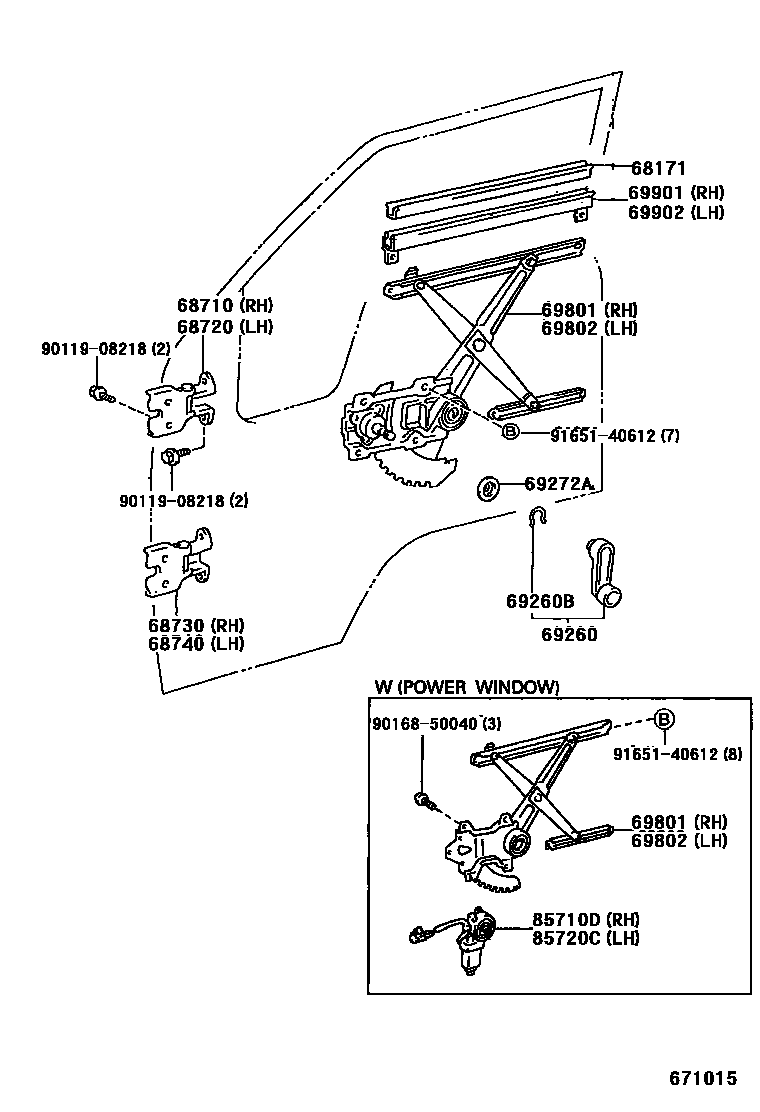

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010×2iLY21#,YY211199505

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702iLY21#,YY211199505

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702iLY21#,YY211199505

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-25010iLY21#,YY211199505

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-25010iLY21#,YY211199505

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-B1×2iLY21#,YY211199505-199905

BLUISH GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iLY21#,YY211199505-199905

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010-08×2iLY21#,YY211199505-199905

NATURAL WHITE,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37010iLY21#,YY211..WT..CBU199905

main69810-37010iLY212..IV;LY211,YY211..ST199905

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37010iLY21#,YY211..WT..CBU199905

main69820-37010iLY21#,YY211199505-199905

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95404iLY21#,YY211199505

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95404iLY21#,YY211199505

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37030iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK)

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37040iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK)

9011908218

main90119-08218

9016850040

main90168-50040

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
