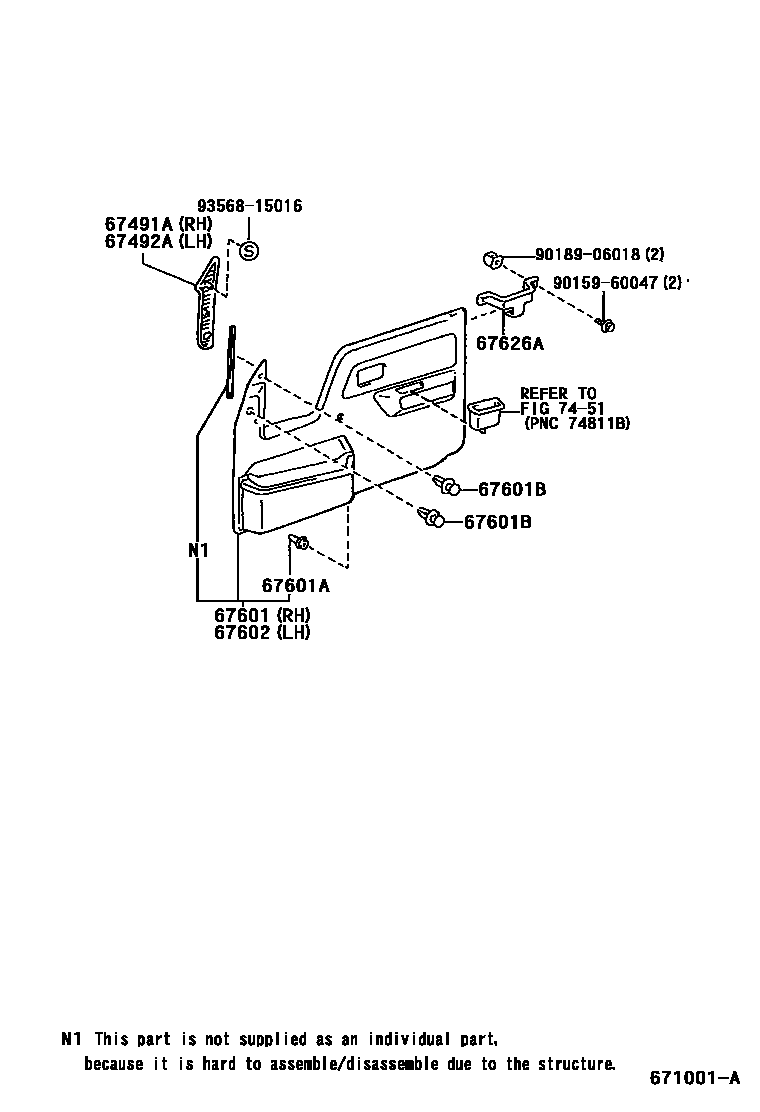

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-25010iLY21#,YY211..RHD..GEN199505

sub67491-95010

main67491-37010iLY21#..ARL,EUR,SA;LY211,YY211..LHD..GEN199505

W(FENDER MIRROR)

sub67491-95400

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-25010iLY211,YY211..LHD..GEN199505-200107

sub67492-95010

main67492-37010iYY211..LHD199505-200107

CHINA SPEC

sub67492-95400

main67492-37010iLY212;LY211..EUR;LY211,YY211..RHD199505-200110

sub67492-95400

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-37010-B0iLY21#,YY211..WT..CBU199905

GRAY,TRIM1#

main67610-37010-B0iYY211..ST..125199610-199708

W(POWER WINDOW),GRAY,TRIM1#

main67610-37010-B0iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK),GRAY,TRIM1#

main67610-37070-B0iLY212..EUR;YY211..ST..125199708

W(POWER WINDOW),GRAY,TRIM1#

main67610-95416-B0iLY21#,YY211199505-199905

GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iLY21#,YY211199802

main67771-30060iLY211,YY211199505-199802

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0iLY21#,YY211199505

GRAY,TRIM1#

sub90467-06017

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-37010-B0iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK),GRAY,TRIM1#

main67620-37010-B0iYY211..ST..125199610-199708

W(POWER WINDOW),GRAY,TRIM1#

main67620-37010-B0iLY21#,YY211..WT..CBU199905

GRAY,TRIM1#

main67620-37120-B0iLY212..EUR;YY211..ST..125199708

W(POWER WINDOW),GRAY,TRIM1#

main67620-95422-B0iLY212..IV;LY211,YY211..ST199505-199905

GRAY,TRIM1#

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400iLY21#,YY211199505

7451

9015960047

main90159-60047

9018906018

main90189-06018

9356815016

main93568-15016

11 parts on this diagram · 2 diagrams in section
