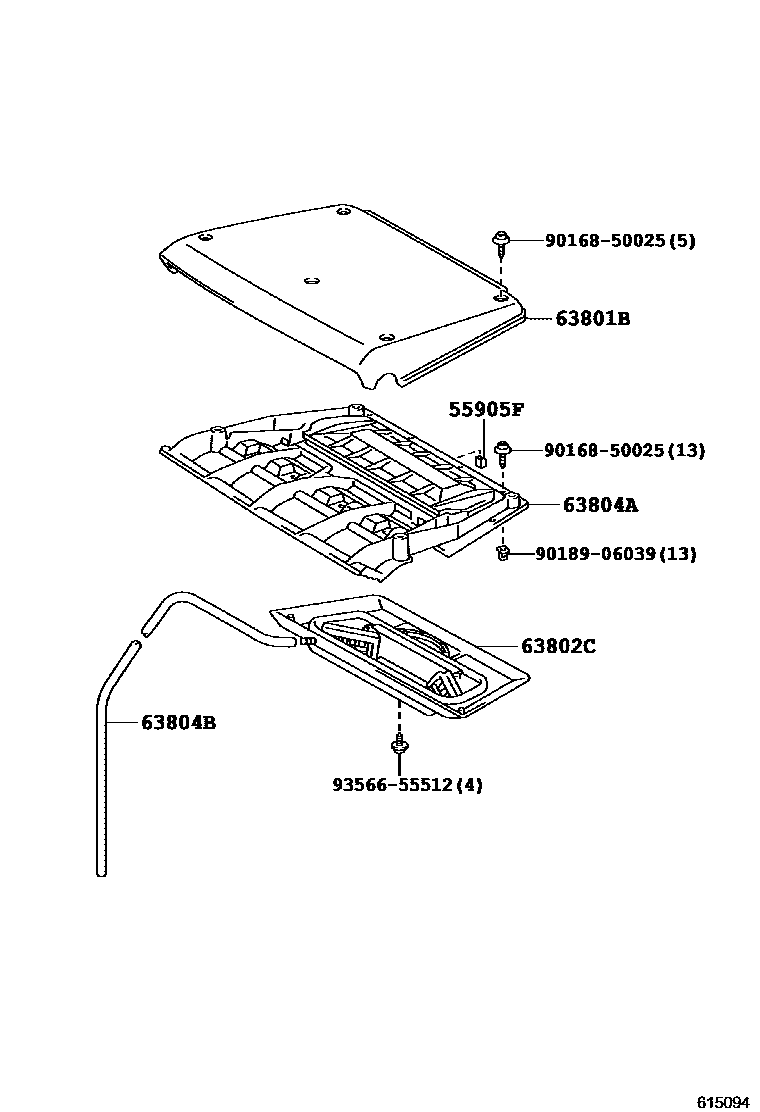

REAR VENTILATOR & ROOF VENTILATOR

55905FKNOB SUB-ASSY, CONTROL

main55905-10110iLY21#,YY211..ARL,EUR,GEN199505

63801BCOVER SUB-ASSY, ROOF VENTILATOR

main63801-95401iLY21#,YY211..ARL,EUR,GEN199505

63802CCOVER SUB-ASSY, ROOF VENTILATOR, NO.2

main63802-95400-B0iLY21#,YY211..ARL,EUR,GEN199508

LT.GRAY,TRIM1#

main63802-95400-C0iLY211..WT..125;YY211..LHD..15T;YY211..RHD..(T3,TW2)199505-199508

BLACK/LT.GRAY,TRIM1#

63804AHOUSING SUB-ASSY, ROOF VENTILATOR

main63804-95400iLY21#,YY211..ARL,EUR,GEN199505

63804BHOSE, DRAIN(FOR ROOF VENTILATOR)

main88539-95402iLY21#,YY211..ARL,EUR,GEN199505

9016850025

main90168-50025

9018906039

main90189-06039

9356655512

main93566-55512

8 parts on this diagram · 1 diagram in section
