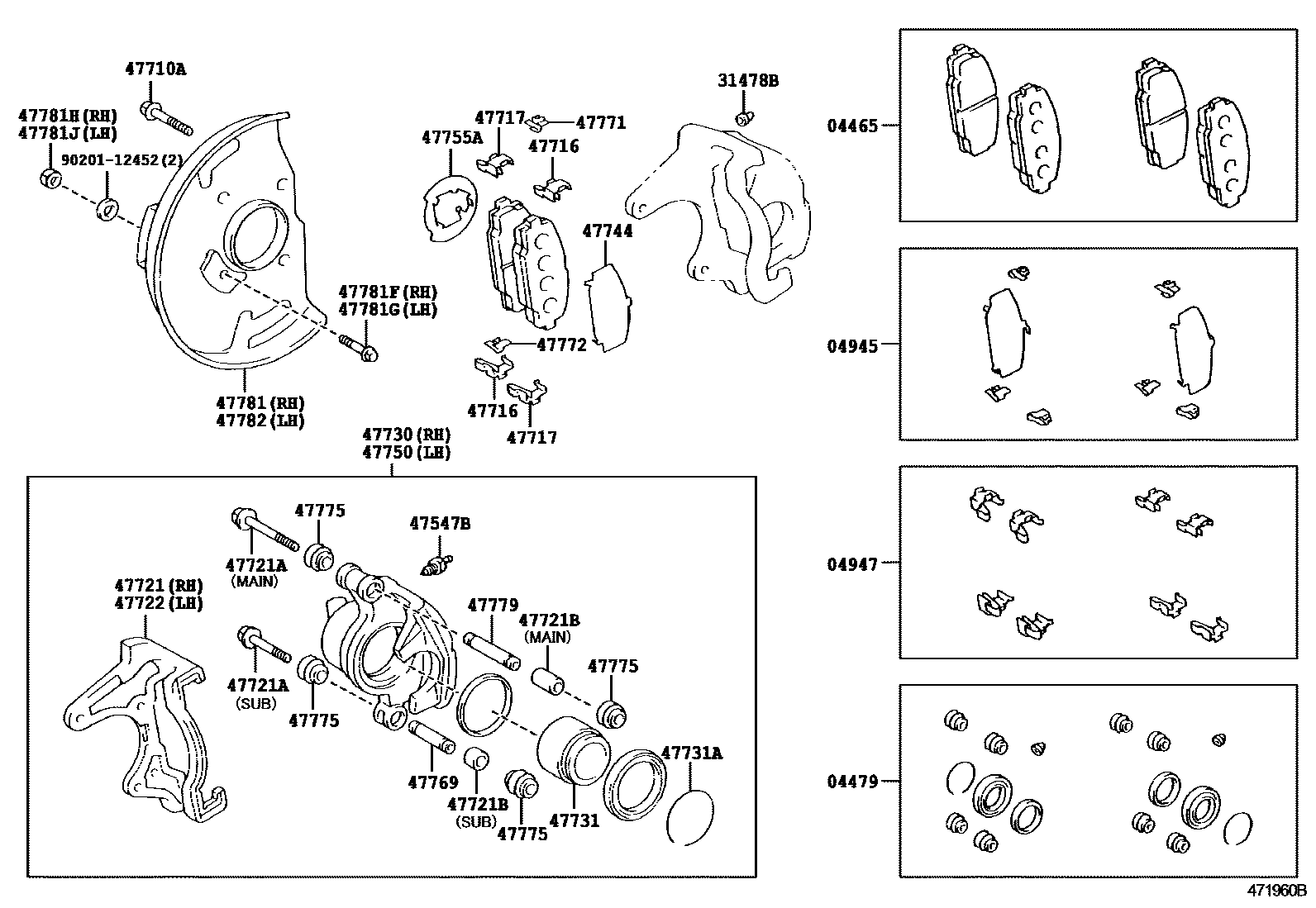

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-25010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505-200110

sub04465-25070

main04465-25080iLY21#..WT..EUR199505-200108

MARK AISIN T535

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iLY21#,YY211199505

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-25010iLY21#..WT..EUR199505

main04945-25020iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

04947FITTING KIT, DISC BRAKE, FRONT

main04947-25010iLY21#,YY211199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLY21#,YY211199505

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLY21#,YY211199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90109-12027×6iLY21#..WT..EUR199505

*12-1.25PX30-18

main90119-12096×6iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

*12-1.25PX42.5-32

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25011×4iLY21#,YY211199505

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25011×4iLY21#,YY211199505

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main47721-25020iLY21#..WT..EUR199505

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLY211..ST..EUR;LY211,YY211..ARL,GEN199505-199711

*10-1.25PX65.5-30,SUB PIN SIDE

main90119-10249×2iLY21#,YY211199711

*10-1.25PX95.5-30,MAIN PIN SIDE

main90119-10451×2iLY211..WT..IV199505-199711

*10-1.25PX65.5-30,SUB

main90119-10452×2iLY211..WT..IV199505-199711

*10-1.25PX95.5-30,MAIN

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLY21#,YY211199505

SUB PIN SIDE

main90387-16005×2iLY21#,YY211199505

MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-25010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main47722-25020iLY21#..WT..EUR199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25011iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main47730-25020iLY21#..WT..EUR199505

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iLY21#,YY211199505

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001×2iLY21#,YY211199505

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25010×2iLY21#..ST..EUR;LY211,YY211..ARL,GEN199505-199905

main47744-25020×2iLY21#..WT..IV199505-199905

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25011iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main47750-25020iLY21#..WT..EUR199505

47755AINSULATOR, DISC BRAKE HEAT

main47755-25010×2iLY21#,YY211199505

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iLY21#,YY211199505

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-25010×2iLY21#..WT..EUR199505

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-25010×2iLY21#..WT..EUR199505

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010×8iLY21#,YY211199505

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLY21#,YY211199505

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-25010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main47703-37010iLY21#..WT..EUR199505

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90101-12155iLY21#..WT..EUR199505

main90119-12096iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90101-12155iLY21#..WT..EUR199505

main90119-12096iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main94115-71200iLY21#,YY211199505-199905

main94130-01202iLY21#,YY211199905

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main94115-71200iLY21#,YY211199505-199905

main94130-01202iLY21#,YY211199905

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-25010iLY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA199505

main47704-37010iLY21#..WT..EUR199505

9020112452

main90201-12452

31 parts on this diagram · 2 diagrams in section
